VFI 15K CPG PF1 3/3 BE UPS

Manufacturer: POWERWALKER
ID: 10122148
337490€ Show VAT 0% Show VAT 24%
Estimated delivery: 21.08 - 26.08
On order with ETA after 19.08.2024
Select your store
On order with ETA after 19.08.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 19.08.2024 Open today: 09:00 - 17:00 About this store
On order with ETA after 19.08.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 19.08.2024 Open today: 10:00 - 17:00 About this store
On order with ETA after 19.08.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 19.08.2024 Open today: 10:00 - 17:00 About this store
On order with ETA after 19.08.2024 Open today: 10:00 - 18:00 About this store
Multitronic warehouse store
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Mariehamn
iTronic Vaasa
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
USB 2.0 ports quantity1
RS-232 ports1
Emergency Power Off (EPO) connectorcheckmark
USB portcheckmark
Weight & dimensions
Weight43 kg
Package weight67 kg
Height827 mm
Width250 mm
Depth627 mm
Operational conditions
Operating relative humidity (H-H)0 - 95%
Operating temperature (T-T)0 - 40 °C
Battery
Number of batteries supported32
Battery voltage12 V
Design
Form factorTower
Product colourBlack
Display typeLCD
Features
Response time4 ms
Emergency Power Off (EPO)checkmark
Output power capacity15 kVA
Noise level65 dB
Input frequency46/64 Hz
Efficiency95.5%
Output power15000 W
Input current Total Harmonic Distortion (THD)6%
Output voltage Total Harmonic Distortion (THD)4%
Crest factor3:1
Input operation voltage (max)520 V
Input operation voltage (min)190 V
Output operation voltage (min)208 V
Output operation voltage (max)400 V
ECO modecheckmark
Number of input phases3
Input power factor0.99
Output power factor1
WaveformPure sine
Output voltage regulation-1 - 1%
Output frequency regulation-0.1 - 0.1 Hz
Automatic Voltage Regulation (AVR)checkmark
UPS topologyDouble-conversion (Online)
Logistics data
Products per pallet3 pc(s)
EAN4260074981285
Warranty2 years
Source: Icecat.biz

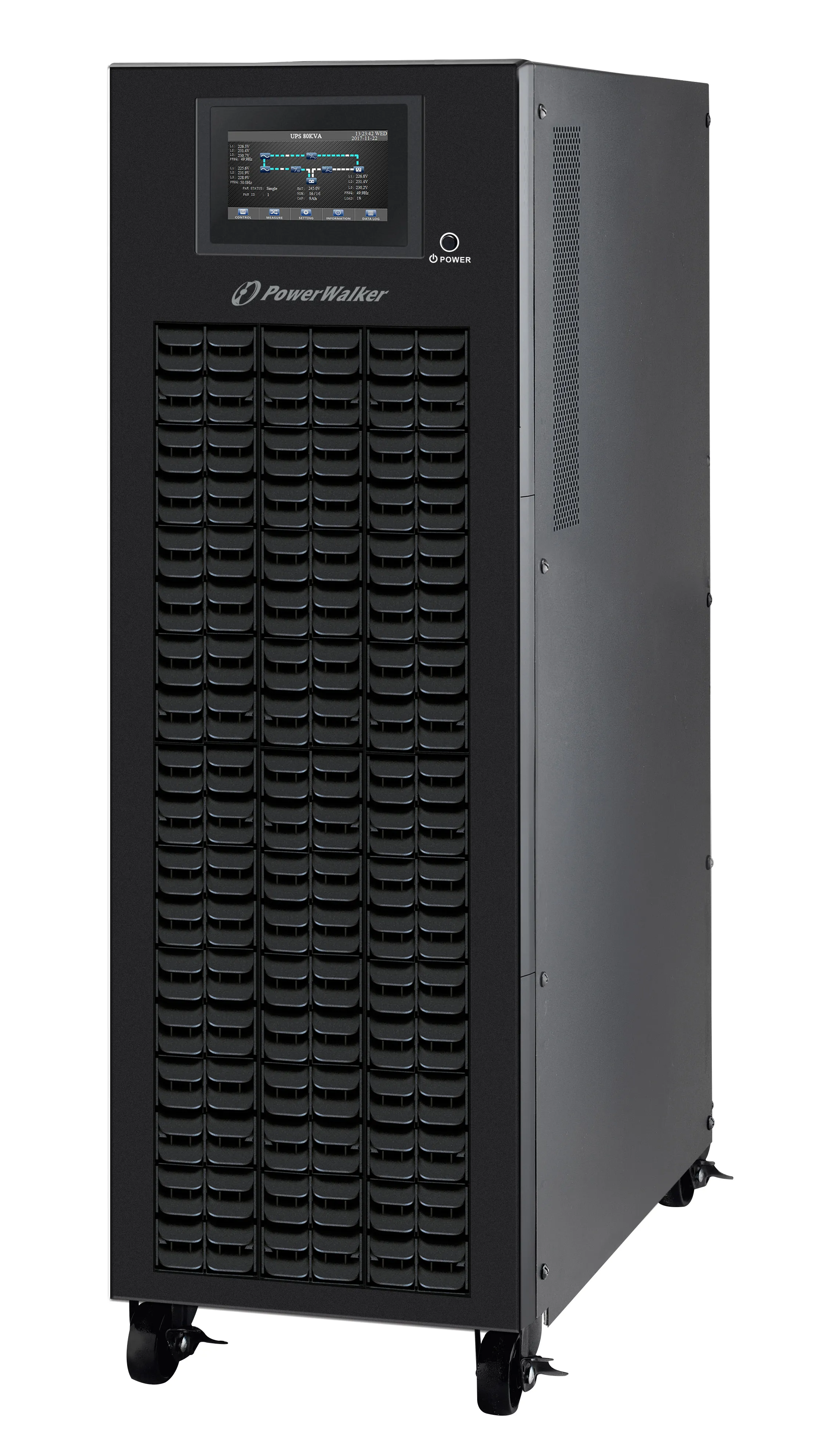

PowerWalker VFI 15K CPG PF1 3/3 BE

The PowerWalker VFI CPG 3/3 PF1 series is a professional commercial solution built in double conversion technology with power factor 1.0. Equipped with three-level inverter topology, it results in high efficiency reaching 95.5% in Line Mode and even 98.5% in ECO Mode. The series ensures low harmonic distortions and precise voltage regulation (1%). All phases have Active Power Factor Correction. Thanks to its modern design, the VFI CPG series reaches a very high power density (kVA output in relation to the size/volume of the unit). All models of this series offer generator support, dual input and allow parallel operation up to three units. Each unit is equipped by default with SNMP Card to increase control over the unit and offer embedded monitoring over IP. For this model battery numbers can be adjusted (between 32 and 40pcs, except 10K unit), allowing more flexibility and compatibility with existing battery banks. The three stage extendable charging design also enhances battery performance over its life time. On demand we can modify unit to include isolation transformer or negative power absorber. For the convenience of operation, a touch panel has been added to the unit.
