Technical details | |
Lens mount interface | M12 |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
Lens system | |
Digital zoom | 8x |
Zoom capability | ![]() |
Maximum aperture number | 1.6 |
Fixed focal length | 4 mm |
Number of lenses | 1 |
Weight & dimensions | |
Weight | 490 g |
Height | 161.7 mm |
Width | 70 mm |
Depth | 161.7 mm |
Energy management | |
DC output voltage | 12 |
DC output current | 0.5 A |
Power source type | PoE |
Power consumption (max) | 7 W |
Power consumption (Power over Ethernet (PoE)) | 6 W |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -40 - 75 °C |
Operating temperature (T-T) | -30 - 60 °C |
Storage relative humidity (H-H) | 0 - 95% |
Networking | |
Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, WebSocket, WebSockets |
Ethernet LAN | ![]() |
Networking standards | IEEE 802.3af |
Bluetooth | ![]() |
Wi-Fi | ![]() |
Video | |
Maximum resolution | 2688 x 1520 pixels |
Video compression formats | H.264, H.265, M-JPEG |
Noise reduction | ![]() |
Supported graphics resolutions | 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1520 |
Total megapixels | 4 MP |
Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
Back Light Compensation (BLC) | ![]() |
Privacy masking | ![]() |
Highlight Compensation (HLC) | ![]() |
Noise reduction technology | 3D noise reduction |
Storage | |
Compatible memory cards | MicroSD (TransFlash) |
Card reader integrated | ![]() |
Maximum memory card size | 512 GB |
Built-in HDD | ![]() |
Packaging data | |
Package weight | 720 g |
Package depth | 121 mm |
Package height | 118 mm |
Package width | 216 mm |
Security | |
Mirror | ![]() |
Audit log | ![]() |
Video motion detection | ![]() |
Active tampering alarm | ![]() |
IP address filtering | ![]() |
HTTPS encryption | ![]() |
Password protection | ![]() |
Intelligent Video Surveillance (IVS) system features | Crossing line, Face detection, Intrusion |
Human and vehicle targets classification | ![]() |
Automatic Network Replenishment (ANR) | ![]() |
Digest authentication | ![]() |
Image sensor | |
Sensor type | CMOS |
Optical sensor size | 25.4 / 3 mm (1 / 3") |
Progressive scan | ![]() |
Number of sensors | 1 |
Management features | |
Web-based management | ![]() |
Camera | |
Camera shutter speed | 1/3 - 1/100000 s |
Lens viewing angle, horizontal | 84° |
Lens viewing angle, vertical | 45° |
Lens viewing angle, diagonal | 100° |
Packaging content | |
Number of cameras | 1 |
Screws included | ![]() |
Resource CD | ![]() |
Design | |
Form factor | Bullet |
LED indicators | Link, Power |
Product colour | White |
Country of origin | China |
Mounting type | Wall |
International Protection (IP) code | IP67 |
Protection features | Vandal proof |
Weatherproof | ![]() |
Night vision | |
LED type | IR |
Night vision | ![]() |
Night vision distance | 30 m |
Performance | |
Type | IP security camera |
Connectivity technology | Wired |
Placement supported | Indoor & outdoor |
Day/night mode | ![]() |
Infrared (IR) cut-off filter | ![]() |
Logistics data | |
Master (outer) case height | 590 mm |
Master (outer) case width | 568 mm |
Master (outer) case gross weight | 21 kg |
Master (outer) case length | 345 mm |
Products per master (outer) case | 24 pc(s) |
Harmonized System (HS) code | 8525801990 |
Master (outer) cases per pallet (air) | 16 pc(s) |
Pallet net length | 80 cm |
Pallet net width | 120 cm |
Pallet net height | 150 cm |
Sustainability | |
Sustainability compliance | ![]() |
EAN | 4015867231340 |
Source: Icecat.biz |

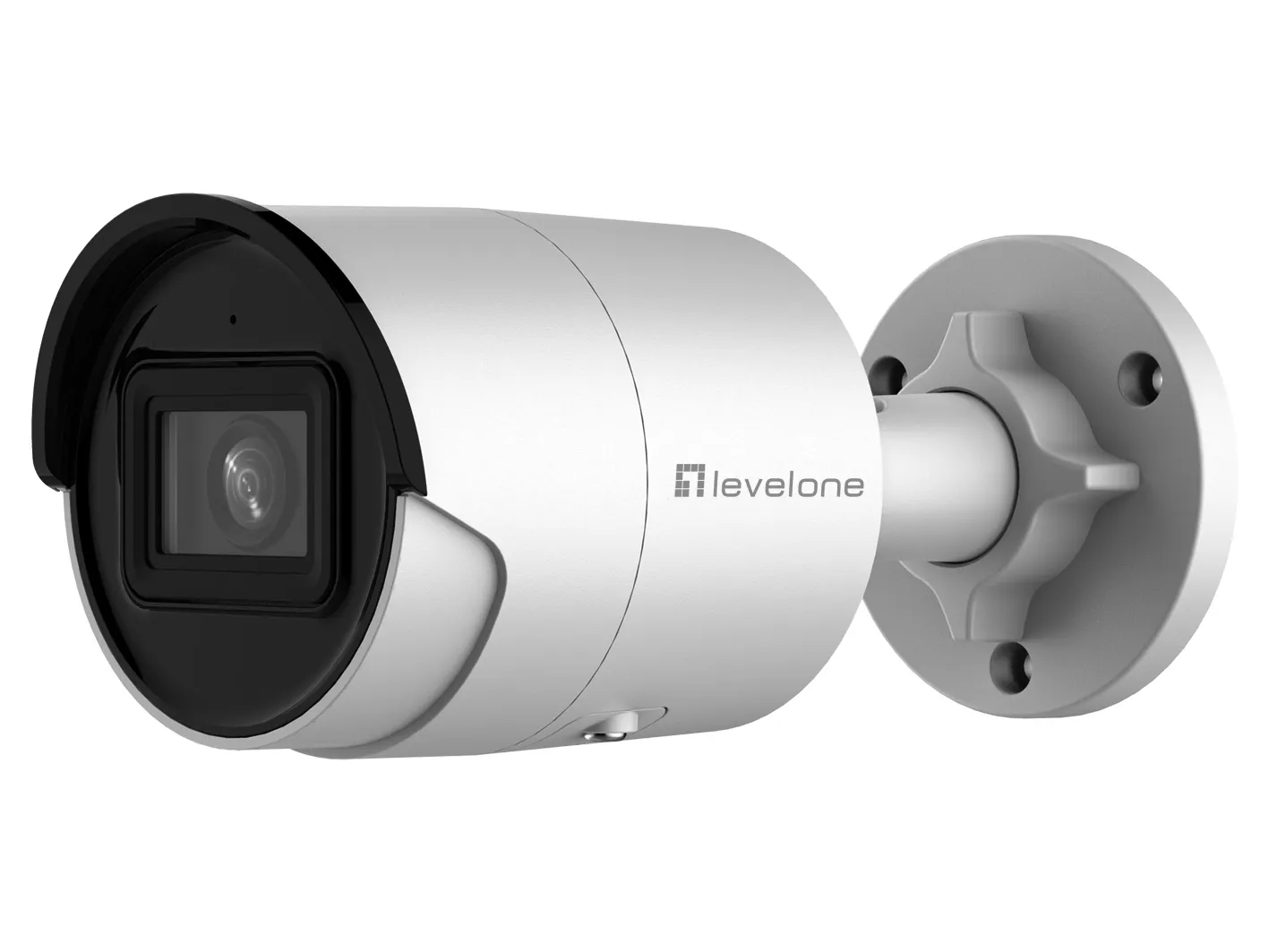

The LevelOne FCS-5202 is a fixed-position outdoor camera offering an ultra-reliable, cost-effective solution for outdoor IP surveillance networks, and is rated at IP67 to operate within rain, extreme heat, snow, dust and humid conditions. Offering clear, sharp imagery with 4-Megapixel resolution and the versatility of 802.3af standard PoE to transfer power and data via a single Cat.5 cable, the LevelOne FCS-5202 should be an essential part of any security deployment that requires smart, reliable outdoor cameras.
