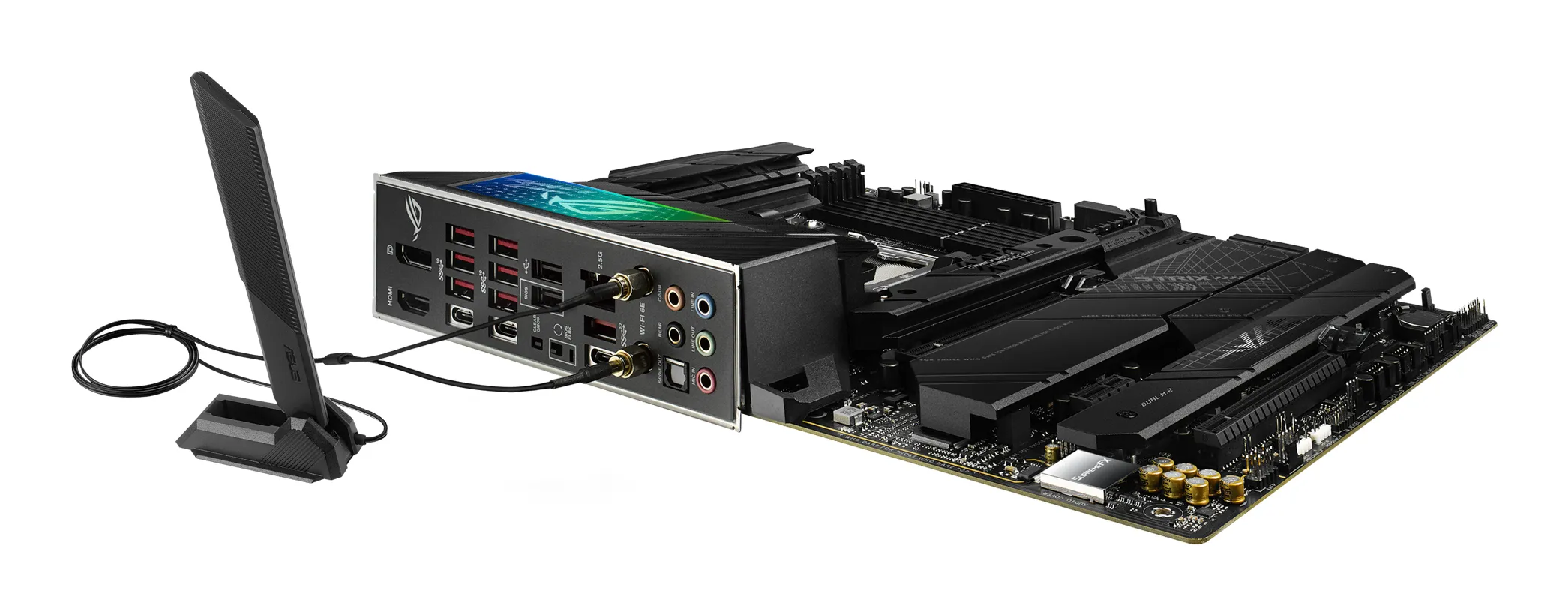

Asus ROG STRIX X670E-F GAMING Wi-Fi ATX - motherboard

Manufacturer: ASUS
ID: 90MB1BA0-M0EAY0
43490€ Show VAT 0% Show VAT 24%
Estimated delivery: 09.04 - 10.04
1pcs available at remote stock
Select your store
Order and pick up in 1-2 weeks Open today: Closed (Good Friday) About this store
Order and pick up in 1-2 weeks Open today: Closed (Good Friday) About this store
Order and pick up in 1-2 weeks Open today: Closed (Good Friday) About this store
Order and pick up in 1-2 weeks Open today: Closed (Good Friday) About this store
Order and pick up in 1-2 weeks Open today: Closed About this store
Order and pick up in 1-2 weeks Open today: Closed (Good Friday) About this store
Order and pick up in 1-2 weeks Open today: Closed (Good Friday) About this store
Multitronic warehouse store
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Mariehamn
iTronic Vaasa
Specifications
Description
Store availability
Delivery
Price development
Processor
Motherboard chipsetAMD X670
Processor manufacturerAMD
Compatible processor seriesAMD Ryzen™ 7
Processor familyAMD Ryzen™ 7000 Series
Processor socketAM5
Memory
Internal memory typeDDR5
Maximum internal memory128 GB
ECCcheckmark
Non-ECCcheckmark
Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Supported memory typesDDR5
Memory channelsDual-channel
Unbuffered memorycheckmark
Internal storage capacity64 GB
Memory slots typeDIMM
Number of memory slots4
Weight & dimensions
Width305 mm
Depth244 mm
Networking
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth version5.2
Ethernet LANcheckmark
Bluetoothcheckmark
Wi-Ficheckmark
Ethernet interface type2.5 Gigabit Ethernet
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Internal I/O
USB 2.0 connectors4
CPU fan connectorcheckmark
ATX Power connector (24-pin)checkmark
Number of chassis fan connectors5
Front panel audio connectorcheckmark
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
Thunderbolt headers1
12V power connectorcheckmark
Back panel I/O ports
Line-incheckmark
USB 2.0 ports quantity2
Ethernet LAN (RJ-45) ports1
Headphone outputs1
Microphone incheckmark
S/PDIF out portcheckmark
Digital audio optical out1
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
USB 3.1 (3.1 Gen 2) Type-A ports quantity7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
Storage controllers
RAID levels0, 1, 10
RAID supportcheckmark
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Packaging data
Package weight2.55 kg
Package depth273 mm
Package height680 mm
Package width338 mm
Operating system/software
Operating system installedWindows 11
Packaging content
Cables includedSATA
Expansion slots
PCI Express x1 (Gen 3.x) slots1
Number of M.2 (M) slots4
BIOS
BIOS memory size256 MB
BIOS typeUEFI AMI
Clear CMOS buttoncheckmark
Graphics
Parallel processing technology supportNot supported
Features
Motherboard chipsetAMD X670
Motherboard form factorATX
Audio output channels7.1 channels
Cooling typeActive
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Motherboard chipset familyAMD
Component forPC
Audio chipRealtek ALC4080
Motherboard
Motherboard chipsetAMD X670E
EAN4711081891147
Warranty3 years

STRIX X670E-F GAMING WIFI
The ROG Strix X670E-F Gaming WiFi is the stealthy alter ego of the Strix X670E-A. A substantial power buff relays its inner demon, giving exclusive ROG overclocking utilities even more headroom to unleash the potential of AMD Ryzen™ 7000 Series processors. And its black PCB and dark metallic heatsinks aesthetically match a wider variety of system hardware and build themes, while a dash of customizable color on its shroud subtly announces an ROG presence in your AM5 build.

PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with a simple press, greatly simplifying the process of removing a PCIe card from the motherboard when it’s time to upgrade to a new GPU or add-in card.

ALL-ROUND PERFORMANCE
Robust power delivery, innovative overclocking tools, and comprehensive cooling controls are core fundamentals of the ROG Strix X670E-F, giving you everything necessary to cruise and flex with AMD Ryzen™ 7000 in your build.

PCIE 5.0
Blazing fast storage is at your command with two PCIE 5.0 M.2 slots and two PCIE 4.0 M.2 slots. Push speeds even further, create a mirrored backup, or both; NVMe and SATA RAID configurations (0/1/10) are available through AMD RAID Xpert2. PCIe 5.0 support also extends to the top x16 extension slot, which includes SafeSlot to support heavy graphics cards and Q-release for easy upgrades.

LEADING CONNECTIVITIY
The ROG Strix X670E-F Gaming WiFi delivers a plethora of internal and external connectivity for low-latency networking and ultrafast data transfers. Those perks are joined by an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

Intel 2.5G Ethernet
Onboard Intel® 2.5 Gbps Ethernet gives your wired connection a boost, with speeds that are 2.5 times faster than standard Ethernet connections for speedy file transfers, low-latency gaming, and high-res video streaming.

PLAY IN STYLE
A black PCB and heatsinks match most hardware, and customizable RGB lighting furthers its flexibility. Pair the ROG Strix X670E-F with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

UNDENIABLY ROG STRIX
The ROG Strix X670E-F is the stealthiest in the lineup, pairing perfectly with most system hardware. A jet black PCB and matching metallic heatsinks give it a brooding aesthetic overall, while a splash of RGB lighting on the I/O shroud gives you the choice to blend into the shadows or announce your presence.

SOFTWARE UTILITIES
ROG-exclusive software delivers intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want.

AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.

THIS CHANGES EVERYTHING.
FROM THIS NEW PLATFORM, YOU CAN SEE THE FUTURE
Build your next rig with an AMD Ryzen™ 7000 Series processor and ROG Strix X670E-F Gaming WiFi to experience advanced performance. With up to 16 “Zen 4” cores and 32 threads, boost clocks of up to 5.7GHz, and 80MB cache, the AMD Ryzen™ 7000 Series keeps you ahead of the game.1

You’ll also gain access to new features for gamers with AMD Socket AM5, from the speed of DDR5 memory to the increased bandwidth of PCIe® 5.0. AMD Ryzen™ 7000 Series processors and AMD socket AM5 motherboards are unlocked for overclocking to personalize your experience. Gain even more performance when you overclock your DDR5 memory with AMD EXPO™ technology.2
