Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Weight & dimensions | |
| Weight | 68 g |
| Cable diameter | 4.5 mm |
| Operational conditions | |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage temperature (T-T) | 0 - 50 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging data | |
| Package weight | 88 g |
| Package depth | 200 mm |
| Package height | 20 mm |
| Package width | 220 mm |
| Quantity per pack | 1 pc(s) |
| Certificates | |
| Compliance certificates | RoHS |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Features | |
| Cable length | 2 m |
| Data transfer rate | 32.4 Gbit/s |
| Maximum resolution | 7680 x 4320 pixels |
| Product colour | Grey, Black |
| Dual Link DVI | ![]() |
| Bandwidth | 32400 MB/s |
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| HDCP | ![]() |
| Connector 1 | DisplayPort |
| Connector 2 | DisplayPort |
| Connector contacts plating | Gold |
| Maximum refresh rate | 120 Hz |
| Audio Return Channel (ARC) | ![]() |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Jacket material | Thermoplastic elastomer (TPE) |
| HDCP version | 2.2 |
| AWG wire size | 34 |
| Cable shielding | Aluminum mylar foil |
| DisplayPort version | 1.4 |
| HDMI Ethernet channel | ![]() |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Number of conductors | 19 |
| Latching connectors | ![]() |
| High Dynamic Range (HDR) supported | ![]() |
| HBR3 support | ![]() |
| Multi-Stream Transport (MST) | ![]() |
| Logistics data | |
| Master (outer) case height | 270 mm |
| Master (outer) case width | 400 mm |
| Master (outer) case length | 300 mm |
| Products per master (outer) case | 80 pc(s) |
| Harmonized System (HS) code | 84733080 |
| EAN | 0065030888578 |
| Warranty | 30 years |

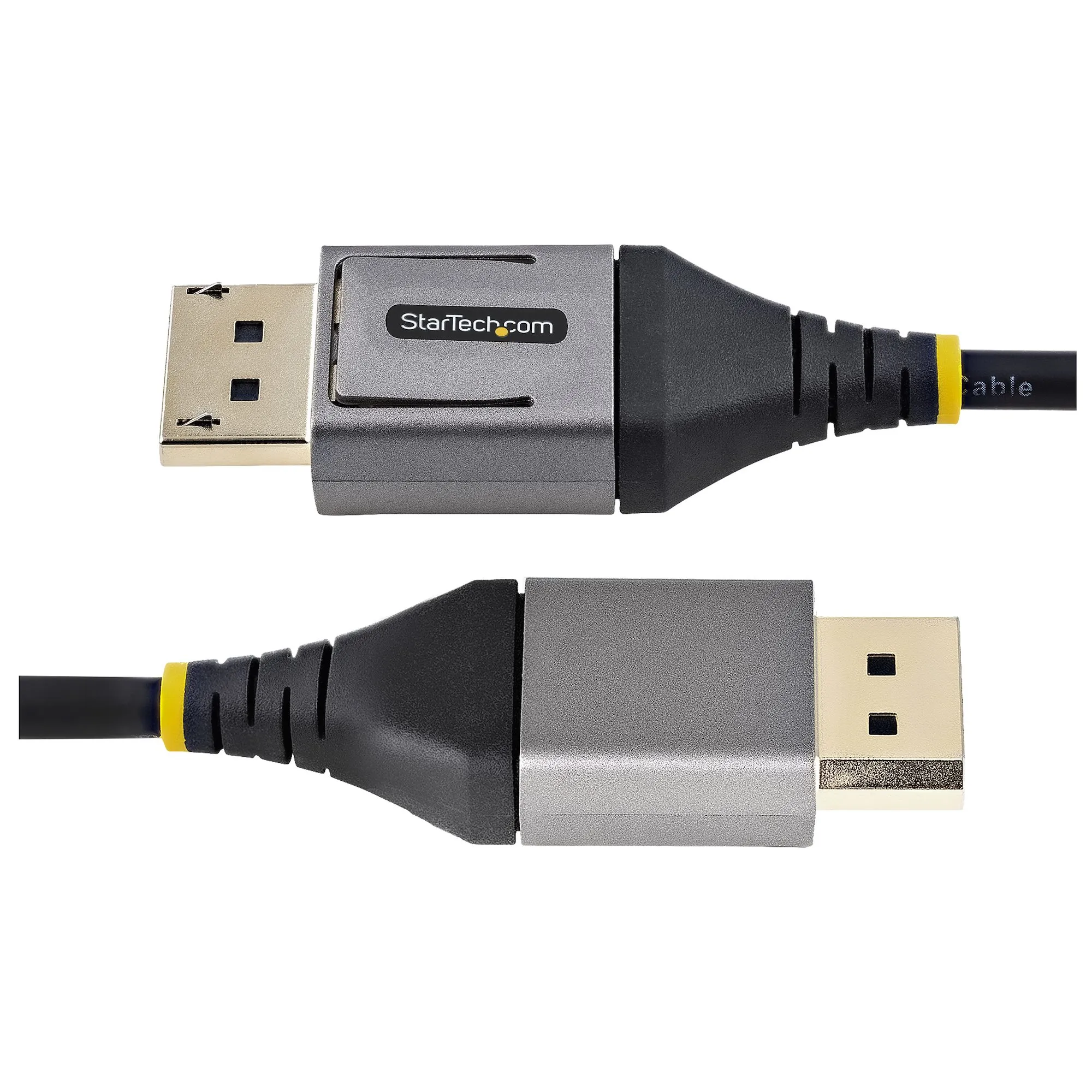

This VESA Certified DisplayPort 1.4 cable facilitates high-bandwidth video and audio transmission between source devices and displays over a 2-meter length. The cable supports the High Bit Rate 3 (HBR3) data transfer rate, reaching 32.4 Gbit/s. This capacity enables transmission of uncompressed video streams up to 8K resolution (7680 x 4320 pixels) at a 60 Hz refresh rate. It also supports DisplayPort Multi-Stream Transport (MST) for driving multiple monitors from a single source connection.
The signal path is designed to handle High Dynamic Range (HDR) content, providing data necessary for expanded color and contrast representation. Signal integrity is maintained for streams requiring HDCP 2.2 content protection standards. Constructed with a Thermoplastic Elastomer (TPE) jacket and aluminum mylar foil with braid shielding, the cable minimizes electromagnetic interference (EMI). The gold-plated connectors utilize a latching mechanism to ensure a secure and stable physical connection.
Key Features:- DisplayPort 1.4 specification
- VESA certified construction
- Supports 8K (7680 x 4320) resolution
- Maximum refresh rate of 60 Hz
- Compatible with High Dynamic Range (HDR) content
- Integrated latching connectors
- Length of 2 meters
- TPE jacket and effective braided shielding
