Weight & dimensions | |
Weight | 415 g |
Package weight | 480 g |
Height | 140 mm |
Width | 97 mm |
Depth | 91 mm |
Package depth | 150 mm |
Package height | 160 mm |
Package width | 117 mm |
Energy management | |
Thermal Design Power (TDP) | 115 W |
Rated voltage | 12 V |
Design | |
Product colour | Black, Stainless steel |
Fan connector | 4-pin |
Number of heat pipes | 4 |
Performance | |
Type | Cooler |
Airflow | 65.07 m³/h |
Fan diameter | 9.2 cm |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B) |
Suitable location | Processor |
Maximum air pressure | 3.4 mmH2O |
Noise level (high speed) | 25 dB |
Rotational speed (max) | 1600 RPM |
Rotational speed (min) | 600 RPM |
Pulse-width modulation (PWM) support | |
EAN | 4260455645416 |
Warranty | 1 year |
Source: Icecat.biz |

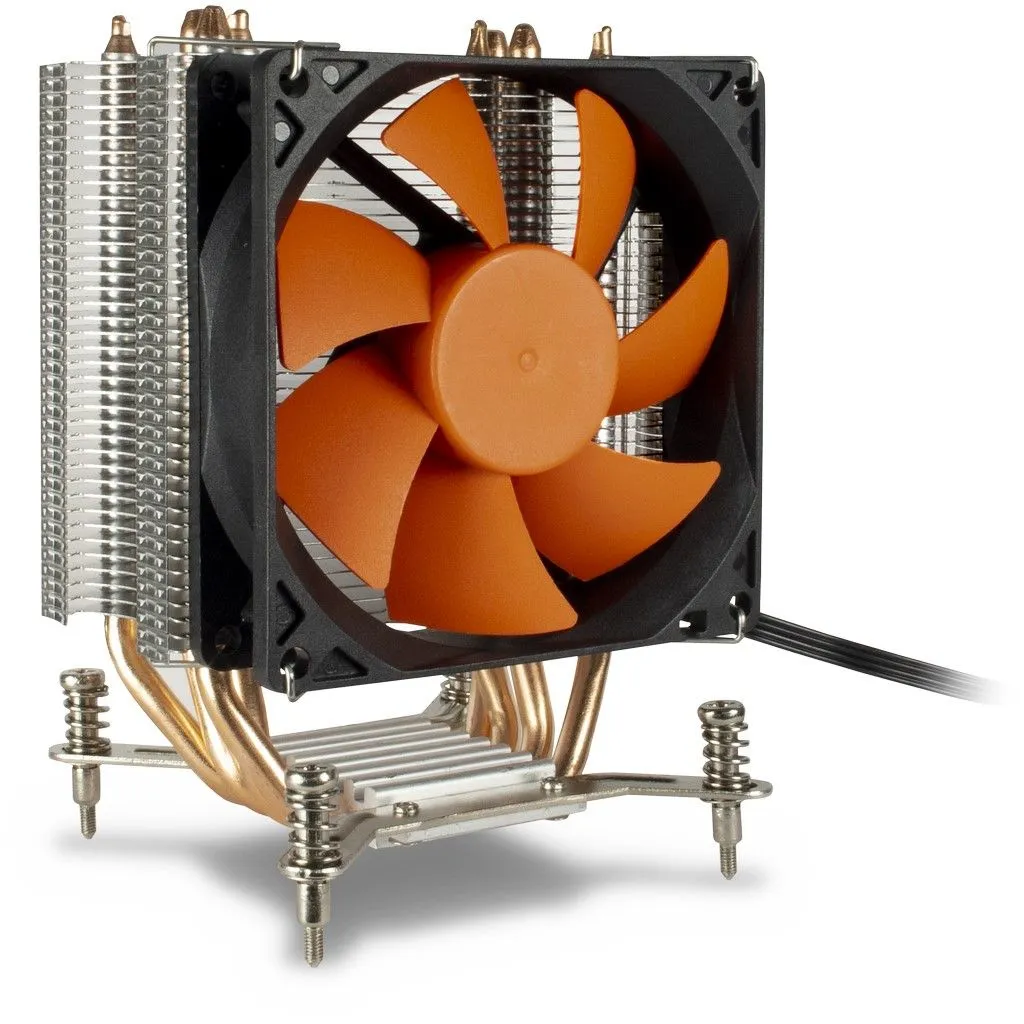

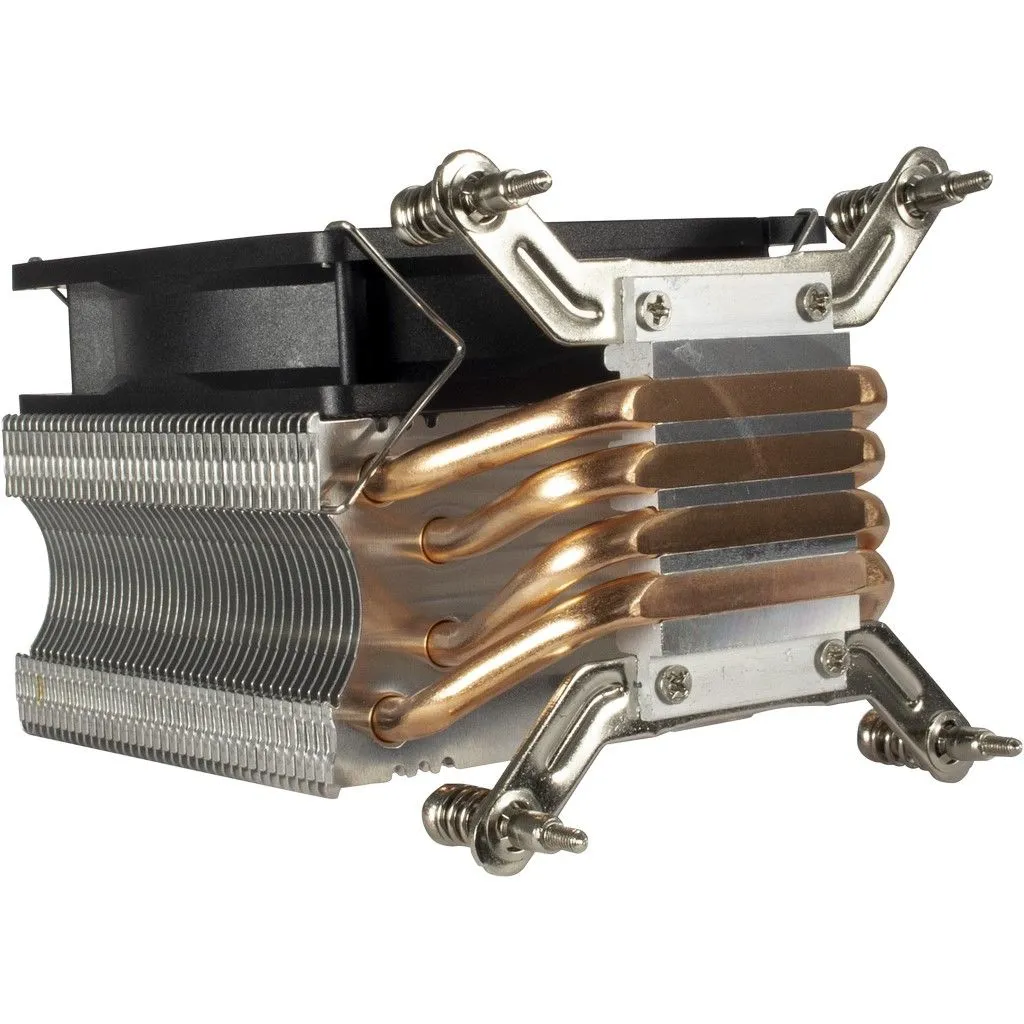

The SU-200B is compatible with the Intel® sockets LGA1150, 1151, 1155,1156, 1366. 38 aluminum fins and 4 double-sided 6mm copper heat pipes enable excellent cooling performance.

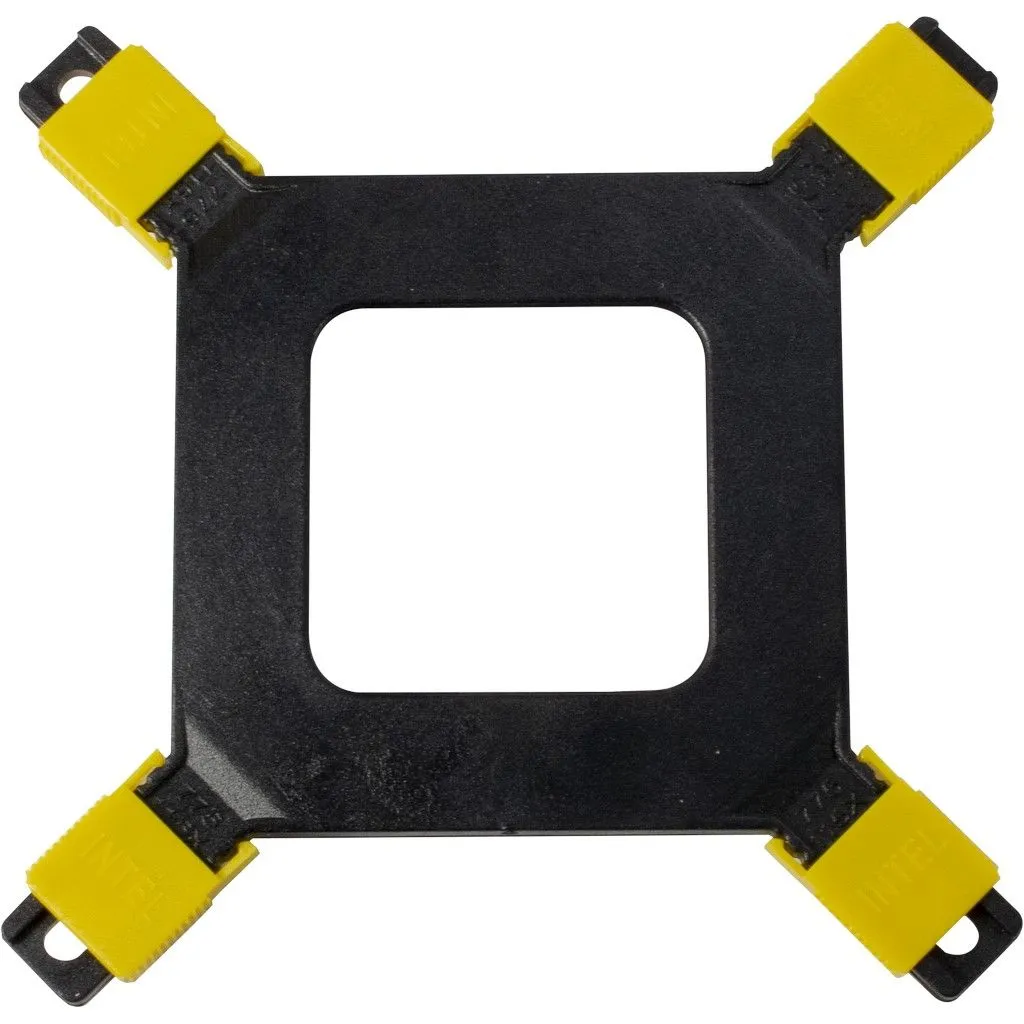

The 92mm fan with 4pin PWM connection can also be controlled depending on the temperature and cools CPUs with a max. TDP up to 115W. With a maximum of 25.0dBA, it remains whisper-quiet. Thanks to the fixed screw connection with the enclosed backplate, it is the ideal candidate for system integrators who also attach great importance to security during transport or shipping.
