EKWB EK-Quantum Surface P360M X-Flow, Radiator, 420 mm, Black

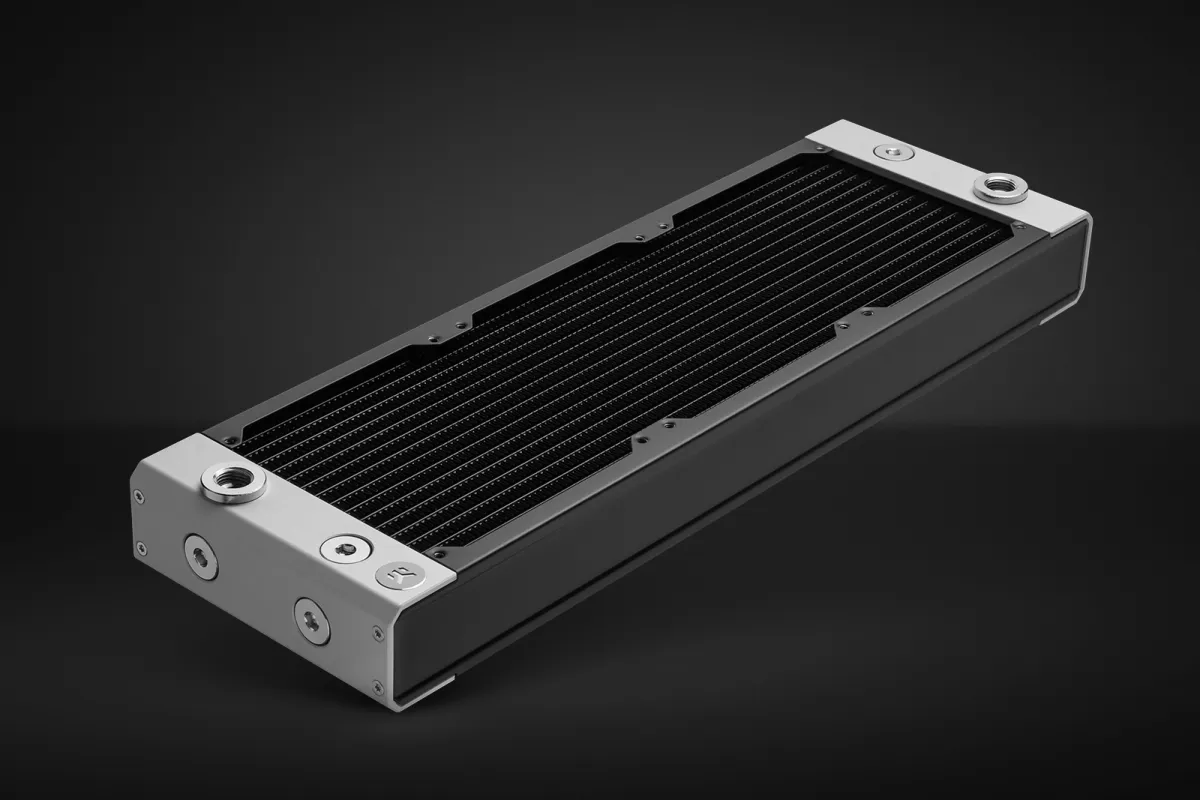

The EKWB EK-Quantum Surface P360M X-Flow (Black) is a 360mm-class radiator designed for custom water-cooling loops. It features an X-Flow core with copper fins and tubing for heat dissipation. The internal structure uses brass chambers, while the external frame consists of stainless steel side plates and aluminium end covers. At 44 mm thick, the radiator offers a medium profile that balances cooling capacity and chassis compatibility. It measures 420 mm in total length and fits standard triple 120 mm fan mounts.

The P360M X-Flow follows the EK-Matrix7 standard, which aligns ports with other components in the series for more direct tube runs. It supports three 120 mm fans and is designed for cases with space for 360 mm hardware. Its black finish and modular design allow it to fit into a variety of builds. Each unit is pressure-tested to 1 bar to ensure it remains airtight within a liquid loop.

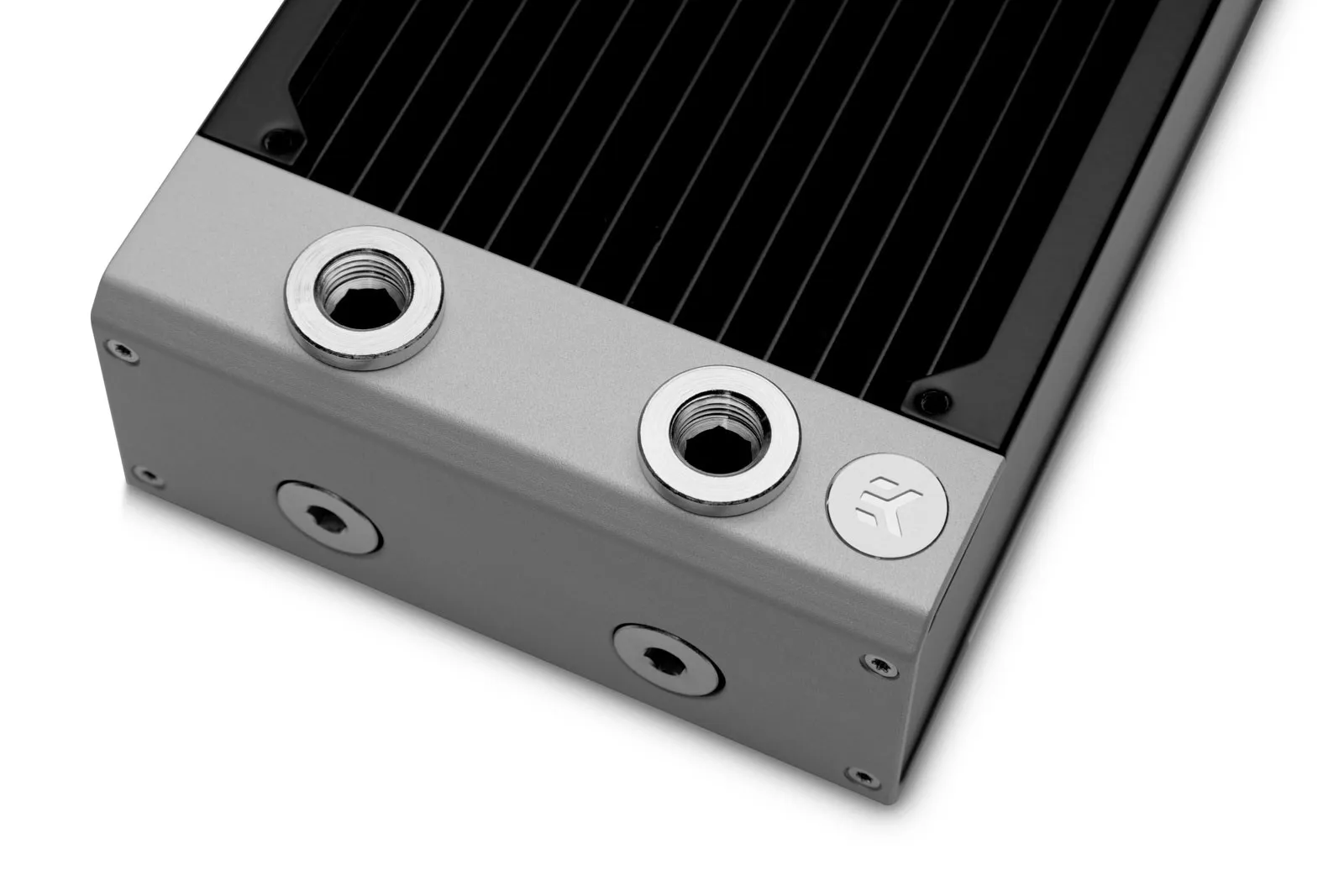

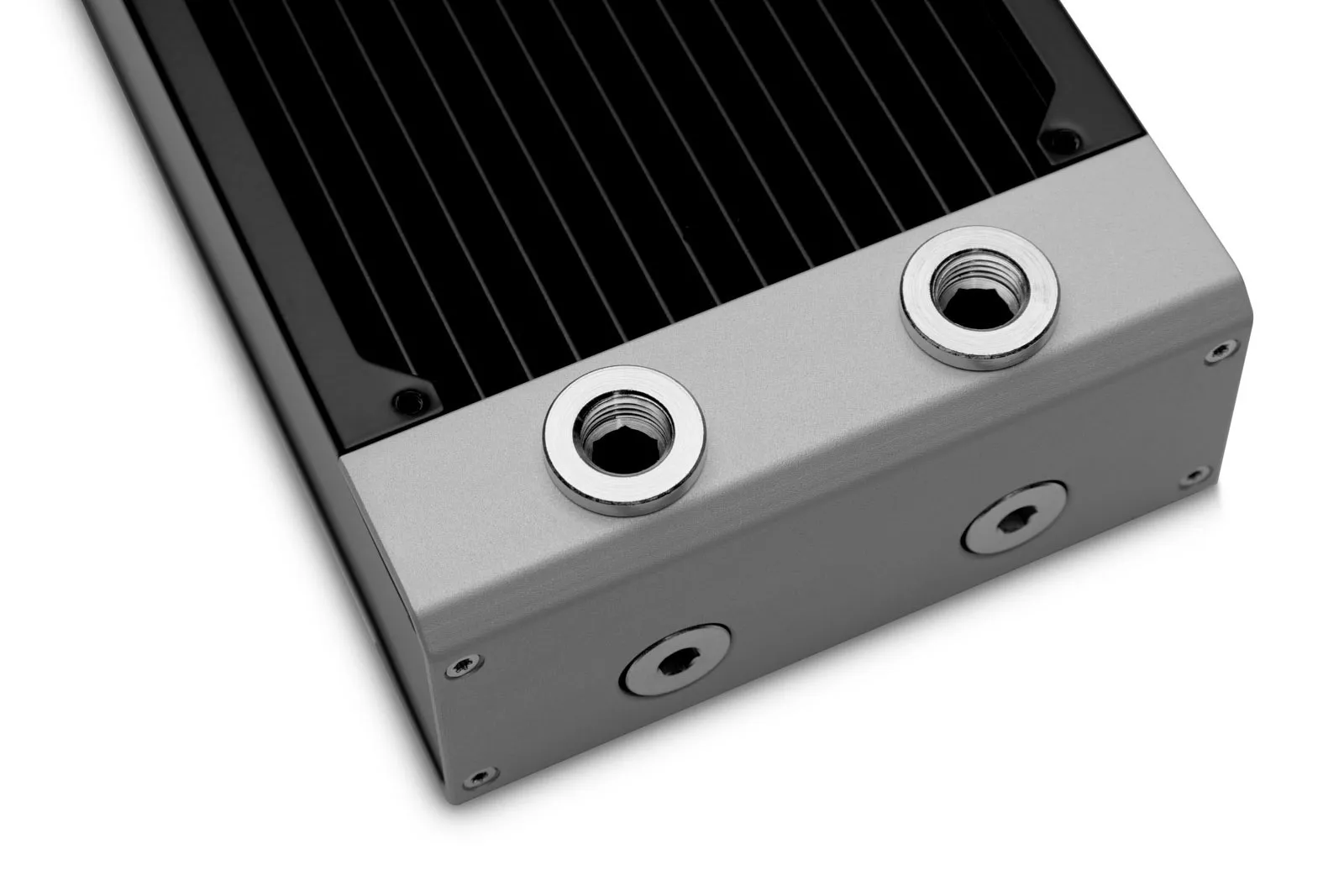

• Eight G1/4" ports allow for various tubing configurations.
• The 18 FPI fin density is optimised for standard fan speeds.
• Total weight: 1640 g.
• Includes a 2-year warranty.
• Width: 130 mm.
