Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| PCI Express connector |  |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| EPS power connector (8-pin) | |
| ATX power connector (20+4 pin) | |
| PCI Express power connectors (8-pin) | 4 |
| CPU power connector (4+4 pin) | |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 120,400 mm |
| CPU power cable length | 100 cm |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power cable length | 75 cm |
| PCI Express power connectors (16-pin) | 1 |
| Weight & dimensions | |
| Weight | 2.94 kg |
| Height | 86 mm |
| Width | 160 mm |
| Depth | 150 mm |
| Energy management | |
| Peak power | 1200 W |
| Nominal power | 1200 W |
| Efficiency | 87% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| AC input voltage | 100 - 240 V |
| Total power | 1200 W |
| Packaging data | |
| Package depth | 200 mm |
| Package height | 108 mm |
| Package width | 320 mm |
| Package type | Box |
| Certificates | |
| RoHS compliance | |
| 80 PLUS certification | 80 PLUS Gold |
| Design | |
| Product colour | Black |
| Illumination | |
| Number of fans | 1 fan(s) |
| On/off switch | |
| Cooling type | Semi-passive |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| Performance | |
| Mean time between failures (MTBF) | 120000 h |
| Form factor | ATX |
| Purpose | PC |
| Supported motherboard form factors | ATX |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Platinum |
| Silent mode | |
| Power supply unit (PSU) form factor | ATX |
| EAN | 4711387594247 |
| Warranty | 5 years |

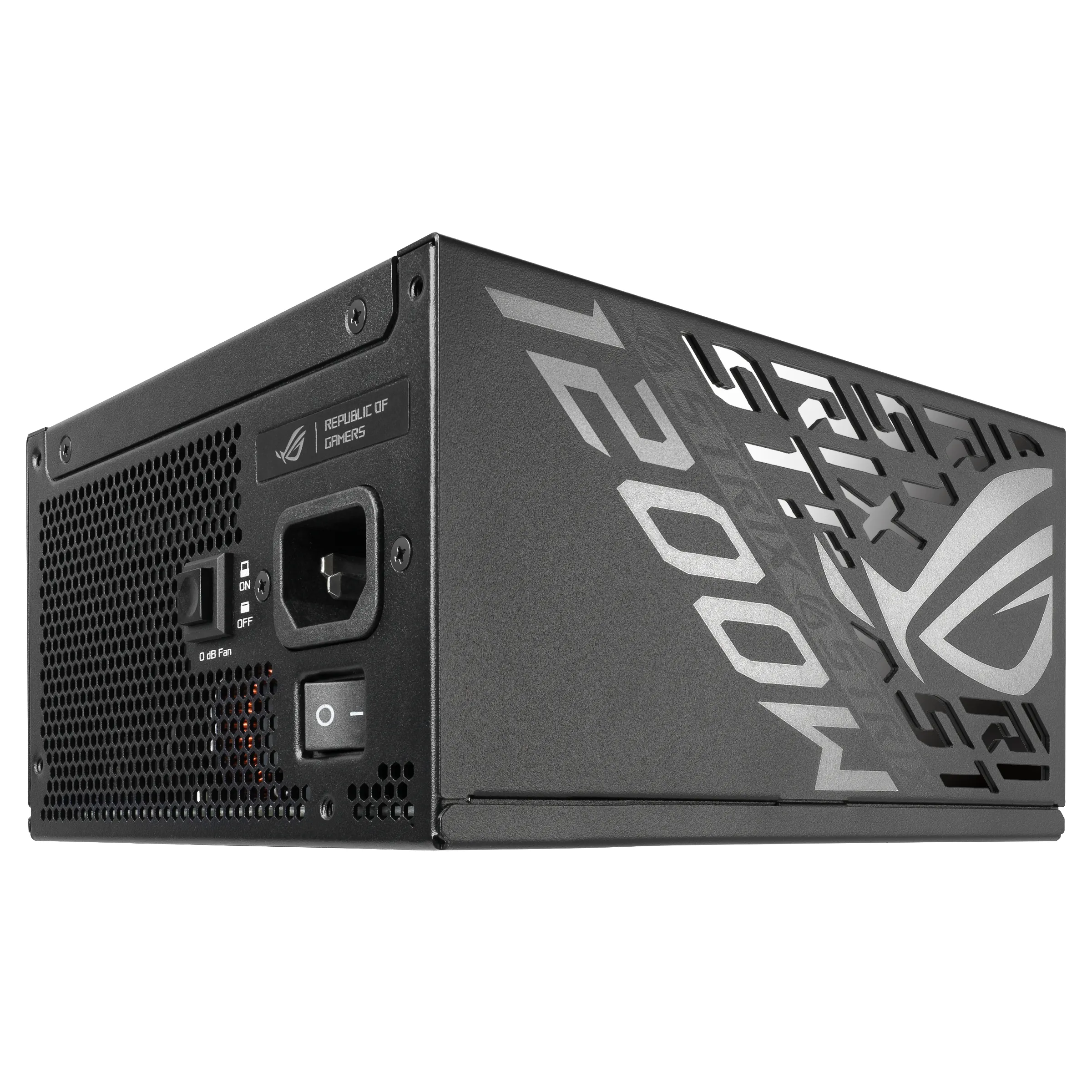

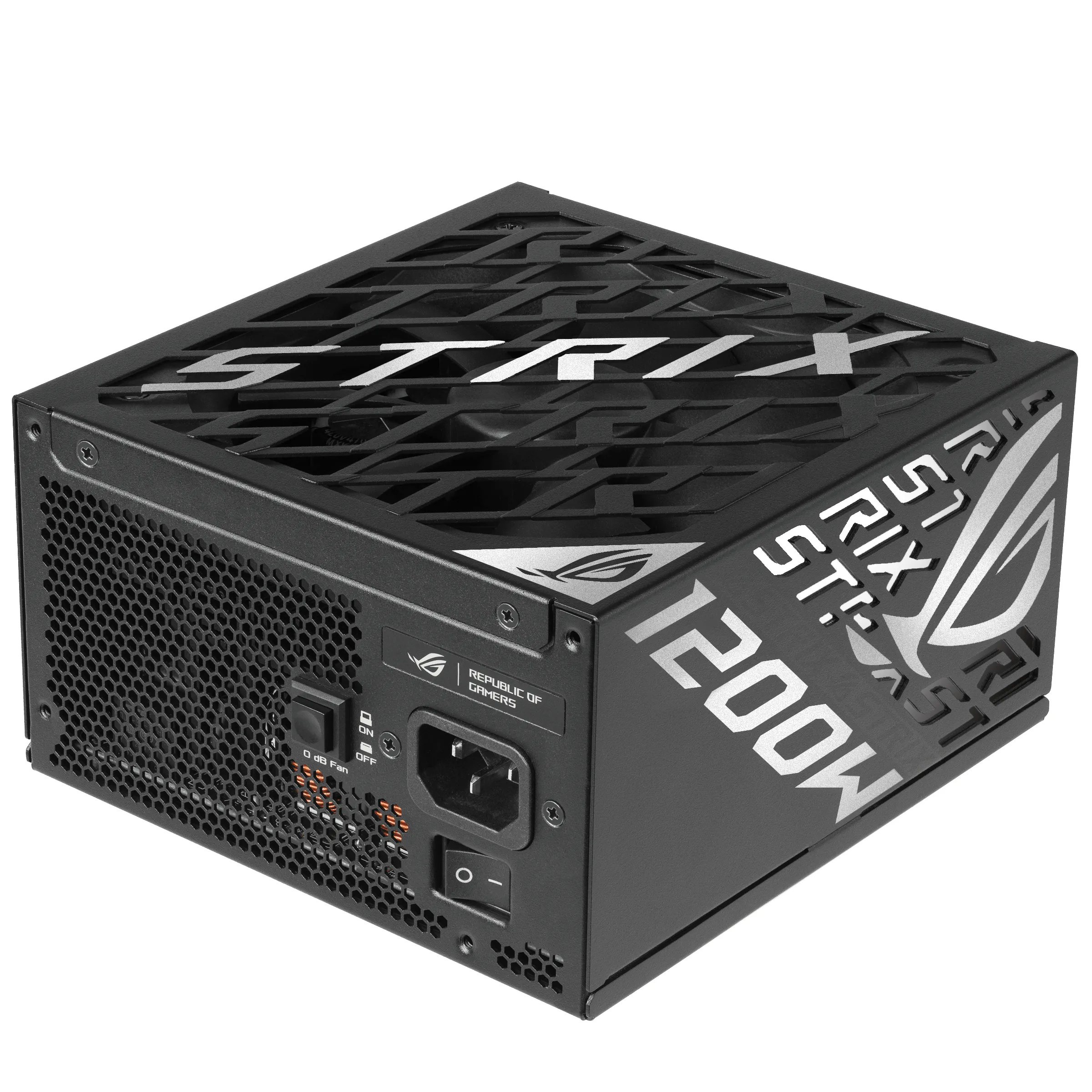

The ASUS ROG Strix 1200W is an ATX power supply unit engineered to deliver 1200 watts of continuous power. It adheres to the ATX 3.1 standard and incorporates Gallium Nitride (GaN) MOSFETs, which contribute to its operational efficiency and thermal performance under load. This unit is designed for systems with high-power-draw components, such as modern graphics cards and CPUs. The power supply has an 80 PLUS Gold certification, indicating its effectiveness at converting AC input to DC output for system hardware.

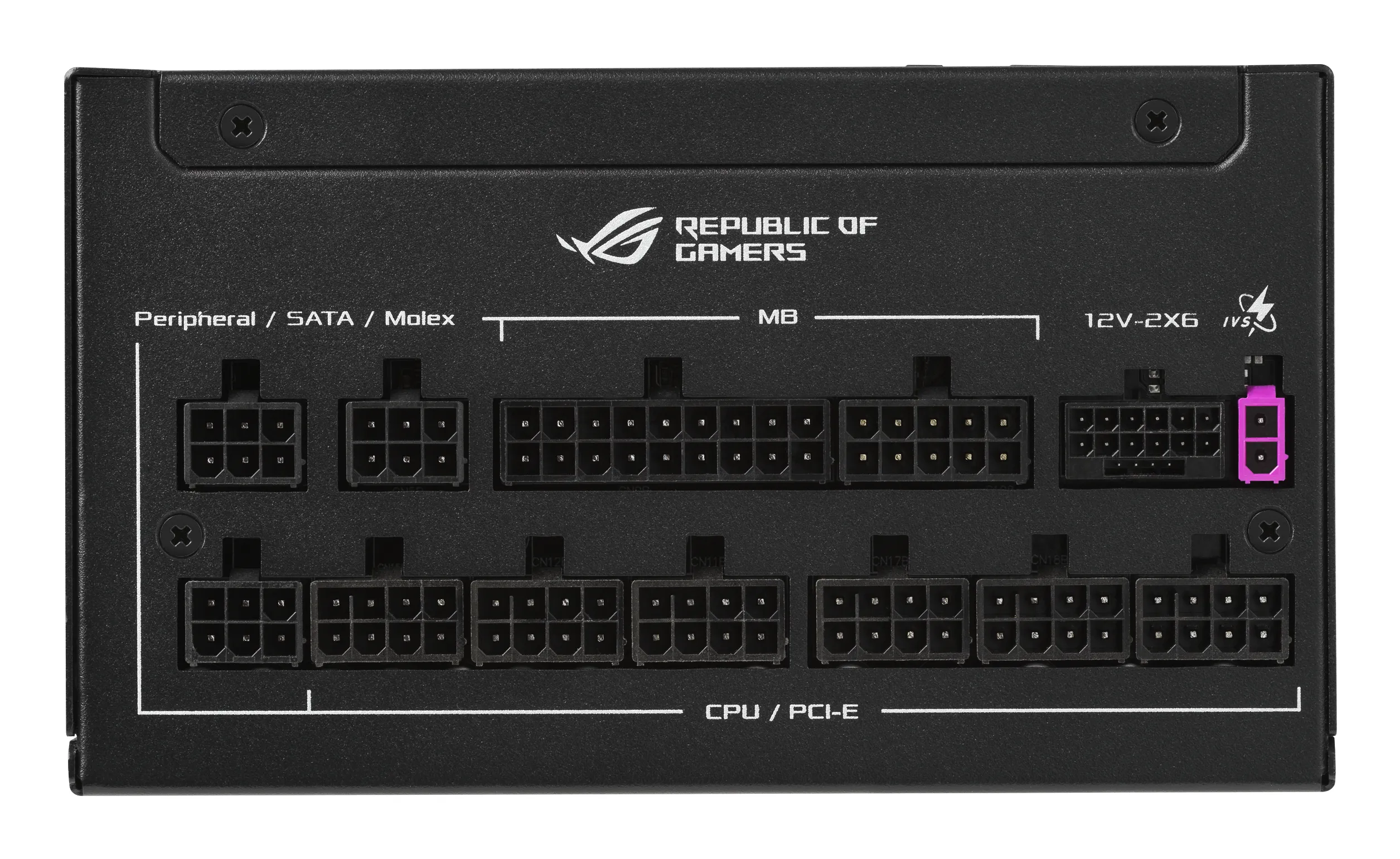

Its fully modular cabling system allows for the use of only necessary cables, which can aid in system airflow and case assembly. Cooling is managed by a 135 mm fan that operates in a semi-passive mode, remaining inactive during low-load conditions to reduce ambient noise. For component safety, the unit is equipped with a suite of protection circuits, including over-voltage, over-power, and short-circuit protection. Its dimensions conform to the standard ATX specification, facilitating installation in compatible computer cases.
Key Features:- Total power output of 1200W
- 80 PLUS Gold certified for efficiency
- Standard ATX form factor
- Fully modular design for selective cable use
- ATX 3.1 compliant for modern hardware support
- Cooled by a 135 mm semi-passive fan
- Features OCP, OPP, OVP, SCP, UVP, and OTP protections
- Measures 160 mm x 150 mm x 86 mm
