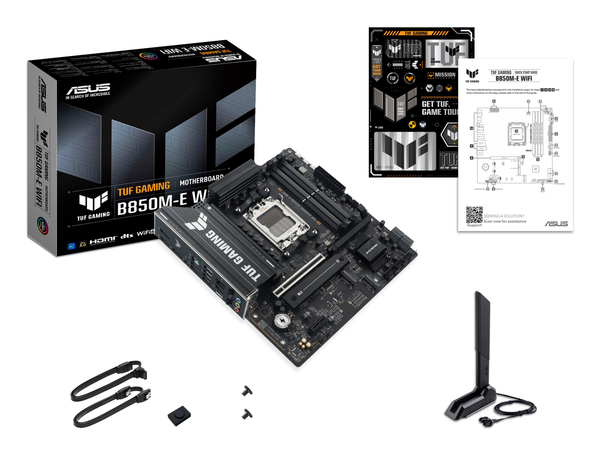

Asus TUF GAMING B850M-E WIFI AM5 mATX Motherboard

The ASUS TUF GAMING B850M-E WIFI is a Micro-ATX motherboard built on the AMD B850 chipset, designed for use with the AM5 socket. It provides compatibility with AMD Ryzen 7000, 8000, and 9000 Series processors, establishing a foundation for a compact PC build. The board incorporates four DDR5 DIMM slots, supporting a maximum of 256 GB of dual-channel memory at speeds up to 8000 MHz. Power delivery is managed through standard 24-pin ATX and 8-pin EPS connectors, ensuring stable operation for system components.

For storage and expansion, this motherboard includes three M.2 slots compatible with PCIe 5.0 and 4.0 interfaces, along with four SATA III ports for additional drives. Its primary graphics card slot operates on the PCIe 5.0 standard for high-bandwidth performance. Connectivity is handled by an integrated 2.5GbE LAN port, Wi-Fi 6E, and Bluetooth 5.3. The rear I/O panel offers a range of ports, including USB 3.2 Gen 2 Type-A and Type-C, one HDMI 2.1 port, and two DisplayPort 1.4 outputs for multi-display configurations.

• AMD AM5 socket supports Ryzen 7000, 8000, and 9000 Series processors
• Micro-ATX form factor based on the AMD B850 chipset
• Four DDR5 DIMM slots for up to 256 GB of system memory
• One PCIe 5.0 x16 slot for high-bandwidth graphics cards
• Three M.2 slots for NVMe solid-state drives
• Integrated 2.5GbE LAN, Wi-Fi 6E, and Bluetooth 5.3
• Rear I/O with USB 3.2 Gen 2 Type-A and Type-C ports
• Features HDMI 2.1 and dual DisplayPort 1.4 video outputs
• Onboard RGB headers for connecting lighting components
• Supports RAID 0, 1, 5, and 10 configurations
