Display | |
Built-in display | ![]() |
System requirements | |
Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
Linux operating systems supported | Ubuntu 18.04 LTS, Ubuntu 20.04 LTS, Ubuntu 22.04 |
Other operating systems supported | ChromeOS |

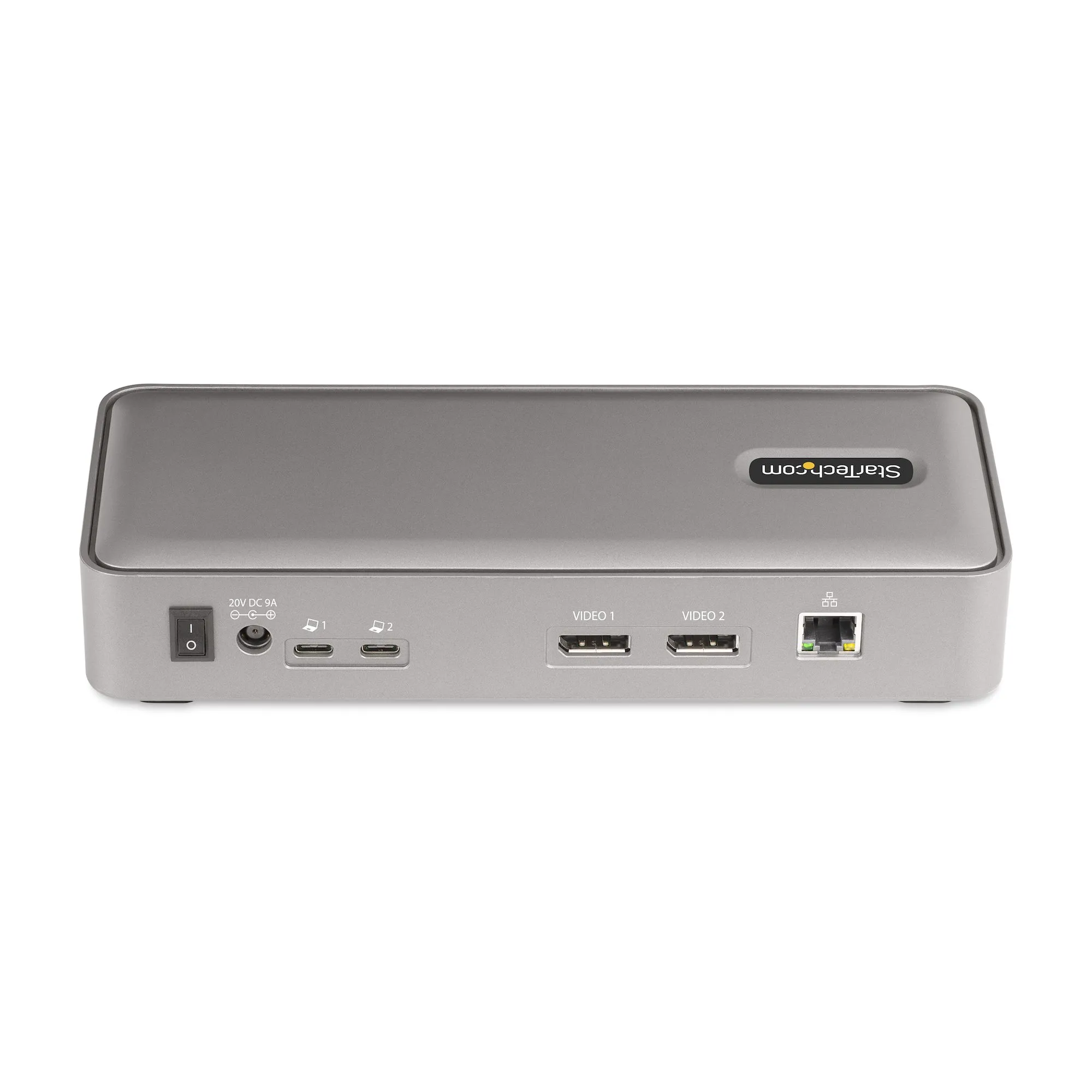

Ports & interfaces | |
Headphone outputs | 1 |
DC-in jack | ![]() |
Keyboard port type | USB |
Mouse port type | USB |
Video port type | DisplayPort |
Number of computers controlled | 2 |
Audio connections | ![]() |
DisplayPorts quantity | 2 |
DisplayPort version | 1.4 |
Number of microphone inputs | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 3 |
Weight & dimensions | |
Weight | 402 g |
Height | 40 mm |
Width | 90 mm |
Depth | 224 mm |
Energy management | |
Power consumption (typical) | 180 W |
Input voltage | 100 - 240 V |
Output voltage | 20 V |
External power adapter | ![]() |
Input current | 2.4 A |
Output current | 9 A |
Compatible power plug types | EU, UK |
![]() | |
USB Power Delivery up to | 90 W |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 90% |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | -10 - 45 °C |
Networking | |
Cabling technology | 10/100/1000Base-T(X) |
Ethernet LAN | ![]() |
Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Ethernet LAN (RJ-45) ports | 1 |
Packaging data | |
Package weight | 1.8 kg |
Package depth | 285 mm |
Package height | 90 mm |
Package width | 160 mm |
Packaging content | |
AC adapter included | ![]() |
Cables included | AC, USB Type-C |
Quick installation guide | ![]() |
Design | |

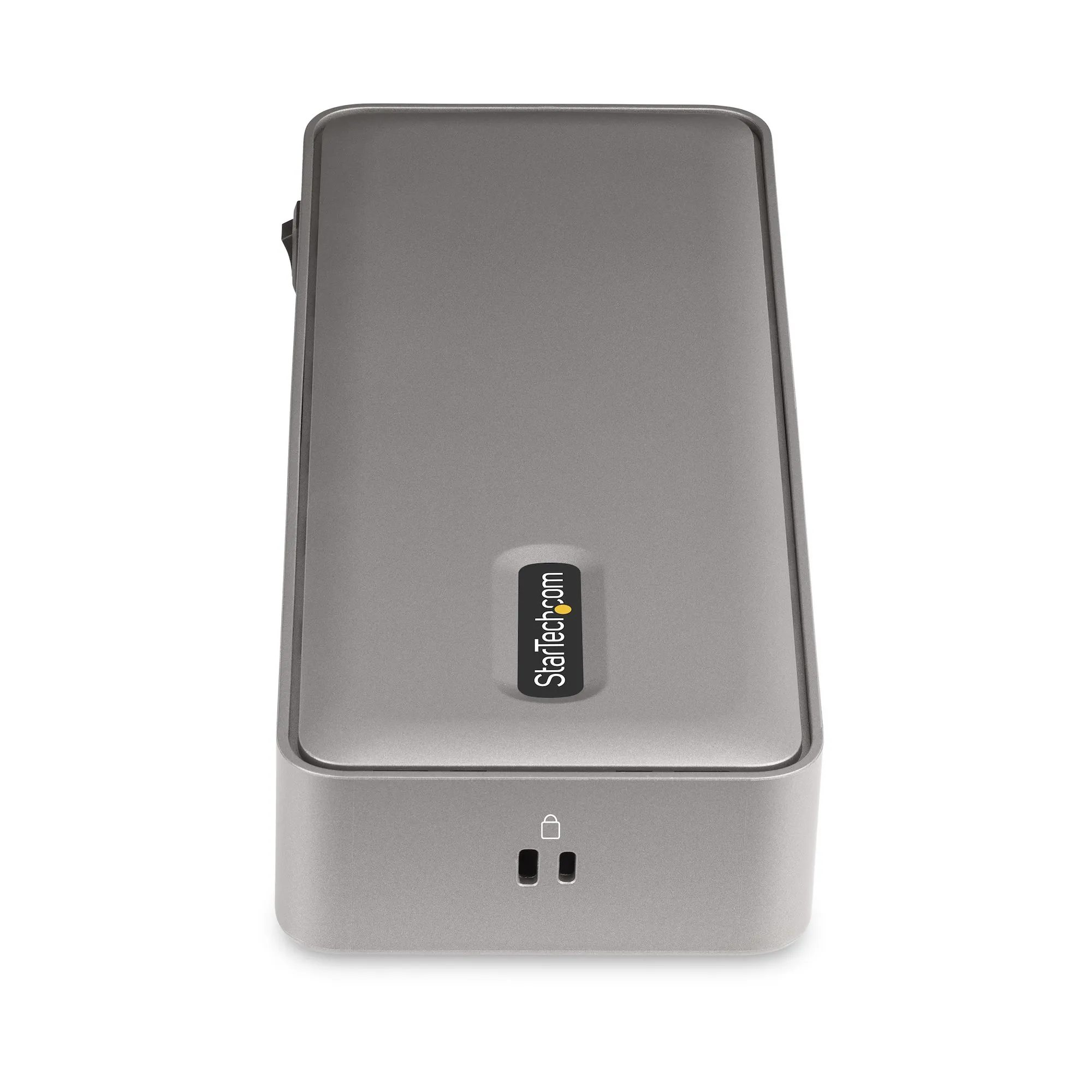

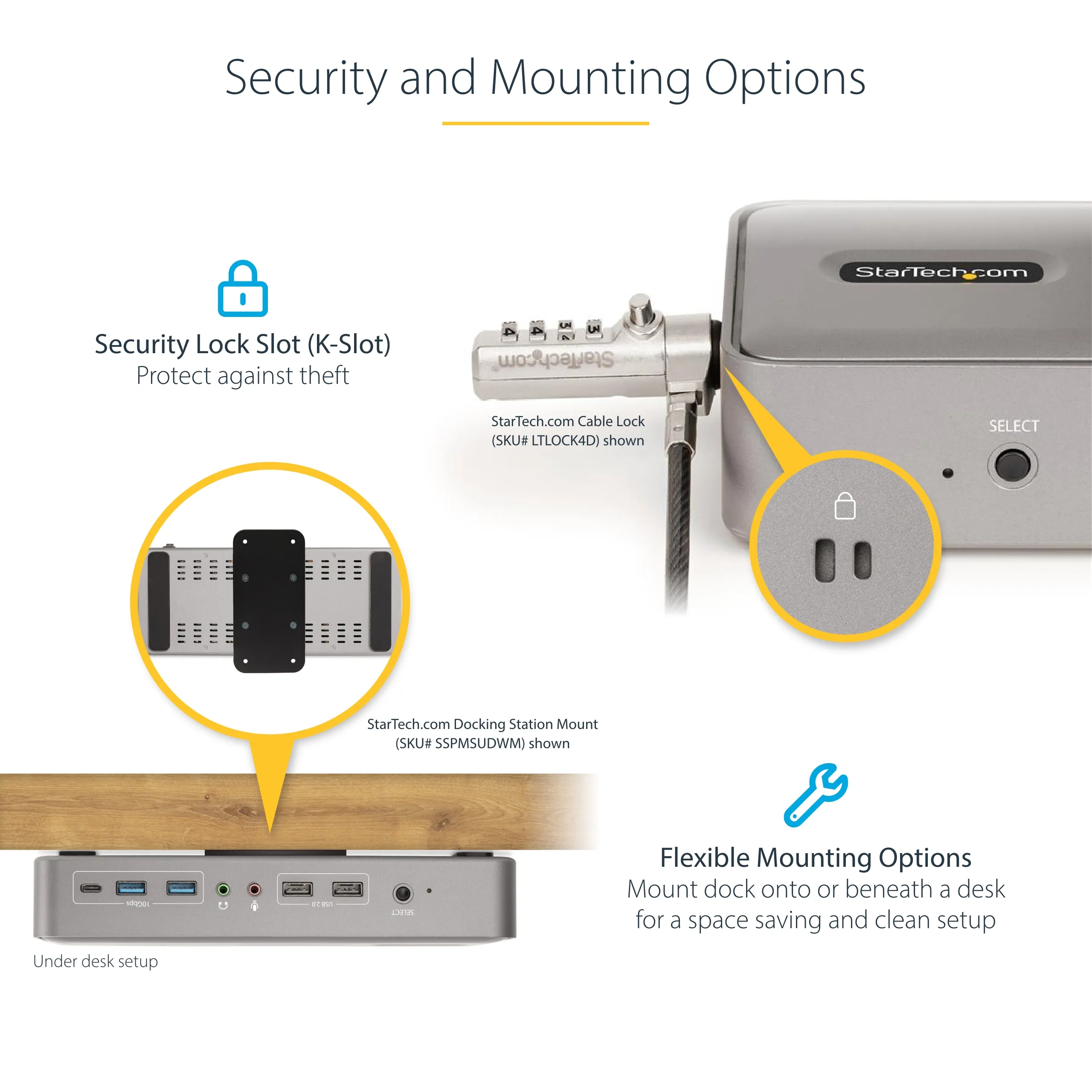

Cable lock slot | ![]() |
LED indicators | LAN, Power |
Product colour | Silver |
Housing material | Plastic |
Performance | |
Chipset | DisplayLink - DL6950, Genesys Logic - GL3590, Genesys Logic - GL9510, Parade - PS186, Realtek - RTL8211F |
Maximum resolution | 3840 x 2160 pixels |
HD type | 4K Ultra HD |
Logistics data | |
Master (outer) case height | 340 mm |
Master (outer) case width | 395 mm |
Master (outer) case length | 380 mm |
Products per master (outer) case | 6 pc(s) |
Sustainability | |
Sustainability compliance | ![]() |
Compliance certificates | RoHS |
EAN | 0065030898492 |
Warranty | 2 years |
Source: Icecat.biz |

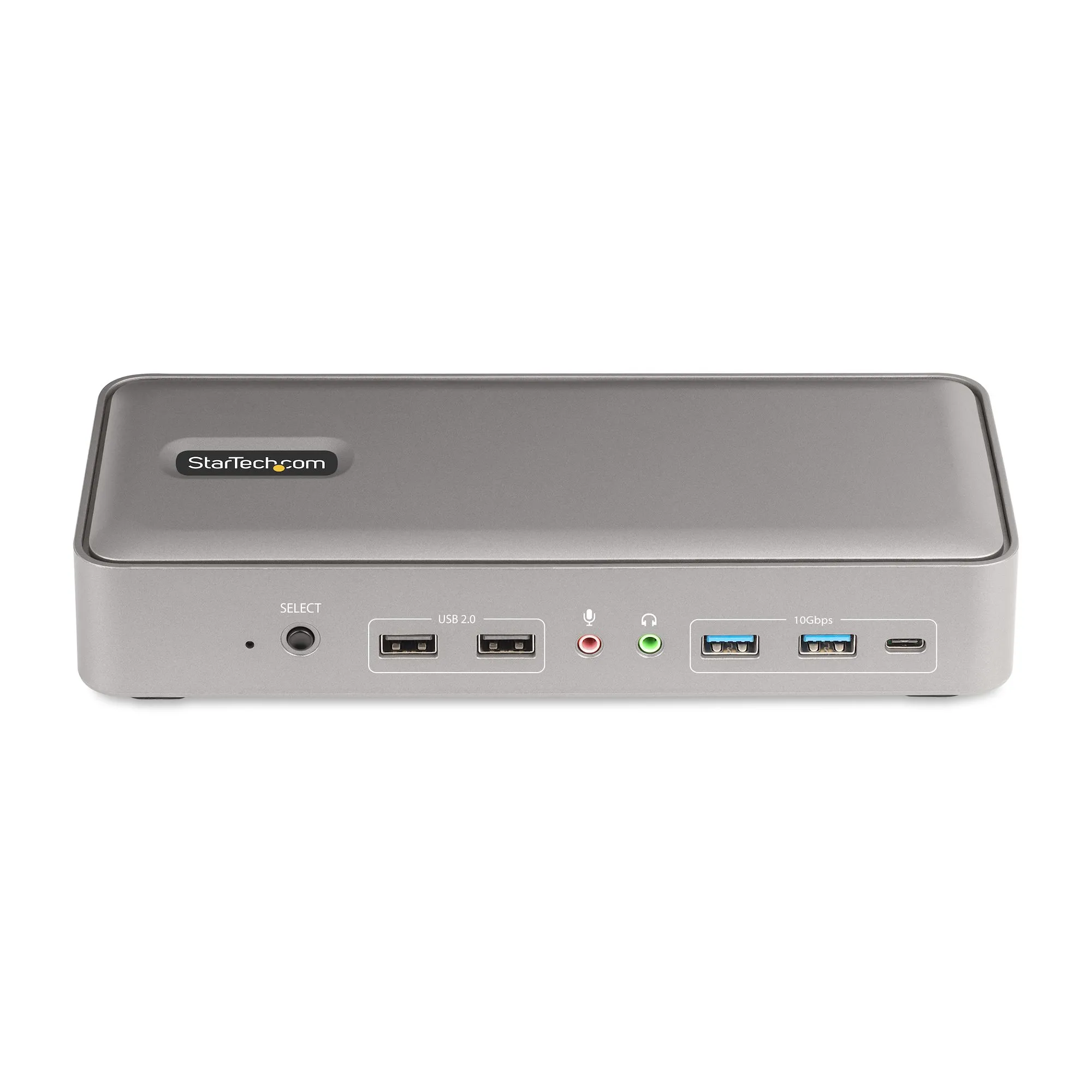

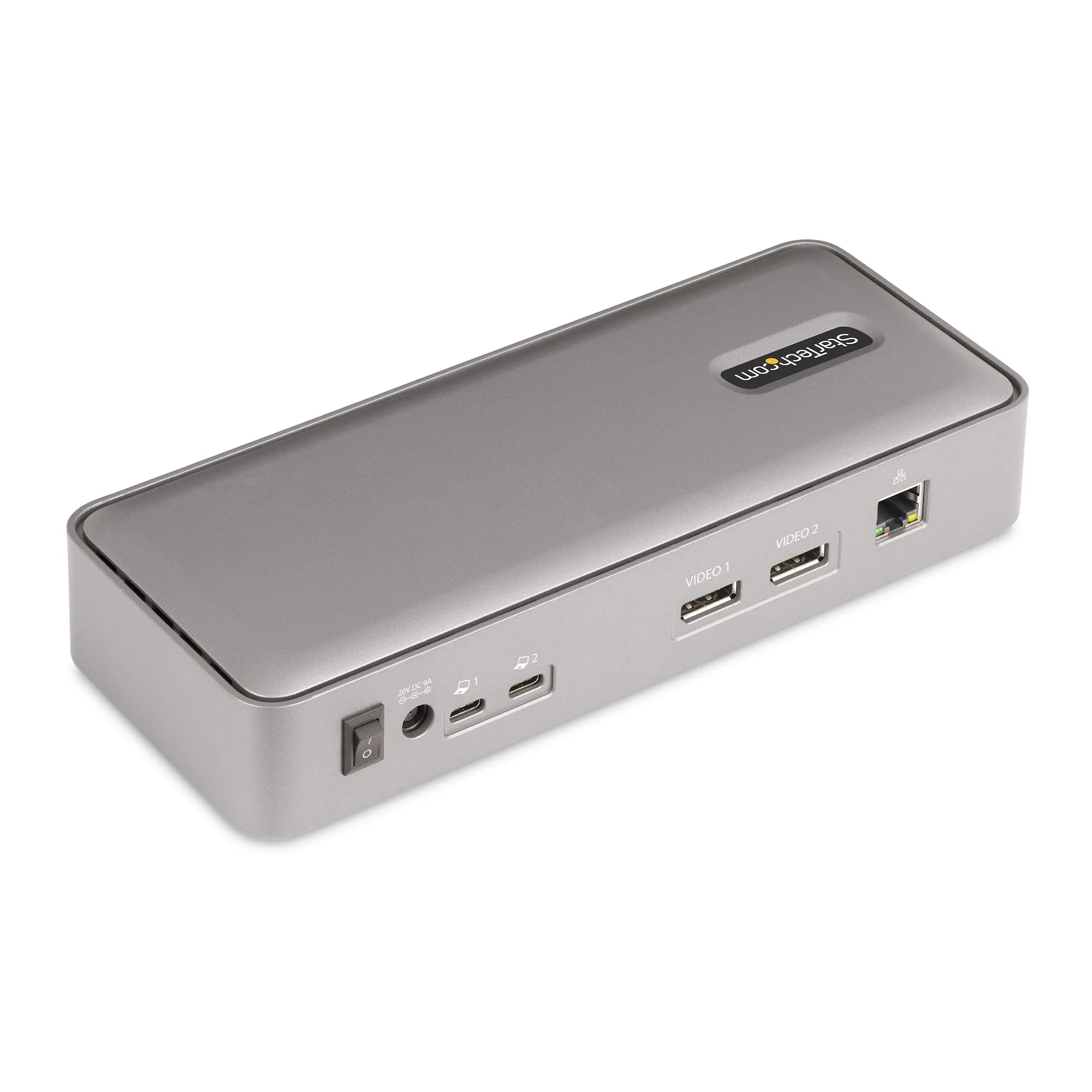

Enhance your workspace with the Startech USB-C KVM Dual 4K 60Hz docking station, expertly designed to meet the needs of both professional and home users alike. This powerful docking station allows you to connect two 4K displays effortlessly, delivering stunning visuals at a fluid 60Hz refresh rate. Ideal for multitasking, whether you are editing videos, working on complex design projects, or simply enjoying high-resolution media, this docking station streamlines your setup to maximize productivity and efficiency.
With an array of USB ports and KVM functionality, transitioning between multiple computers has never been easier. The plug-and-play design ensures you can set up your workspace quickly without the hassle of complicated installations. Future-proof your technology with superior compatibility, supporting a variety of devices and operating systems while providing ample power delivery for your USB-C devices. Experience the convenience and versatility that the Startech USB-C KVM Dual 4K 60Hz docking station brings to your workflow.

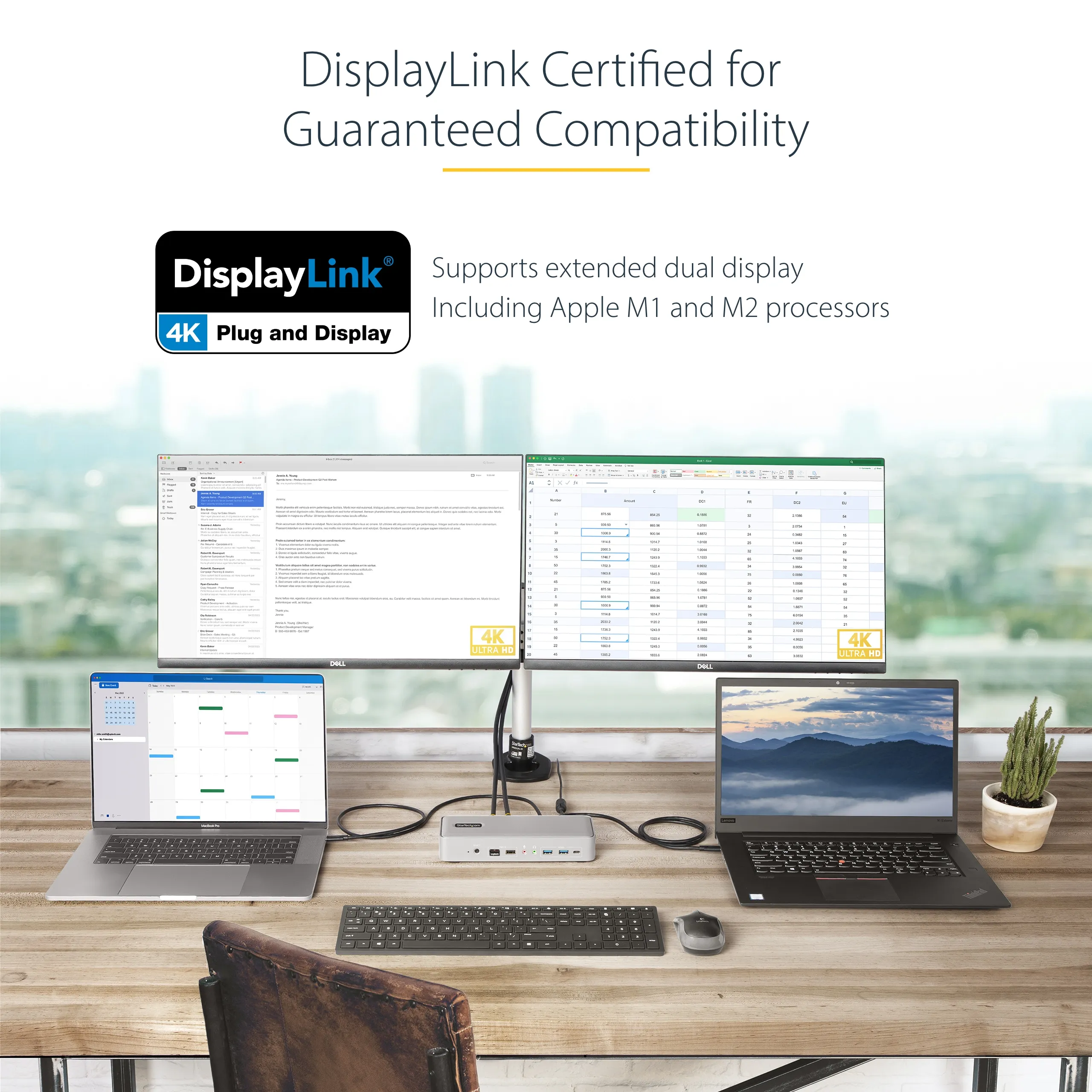

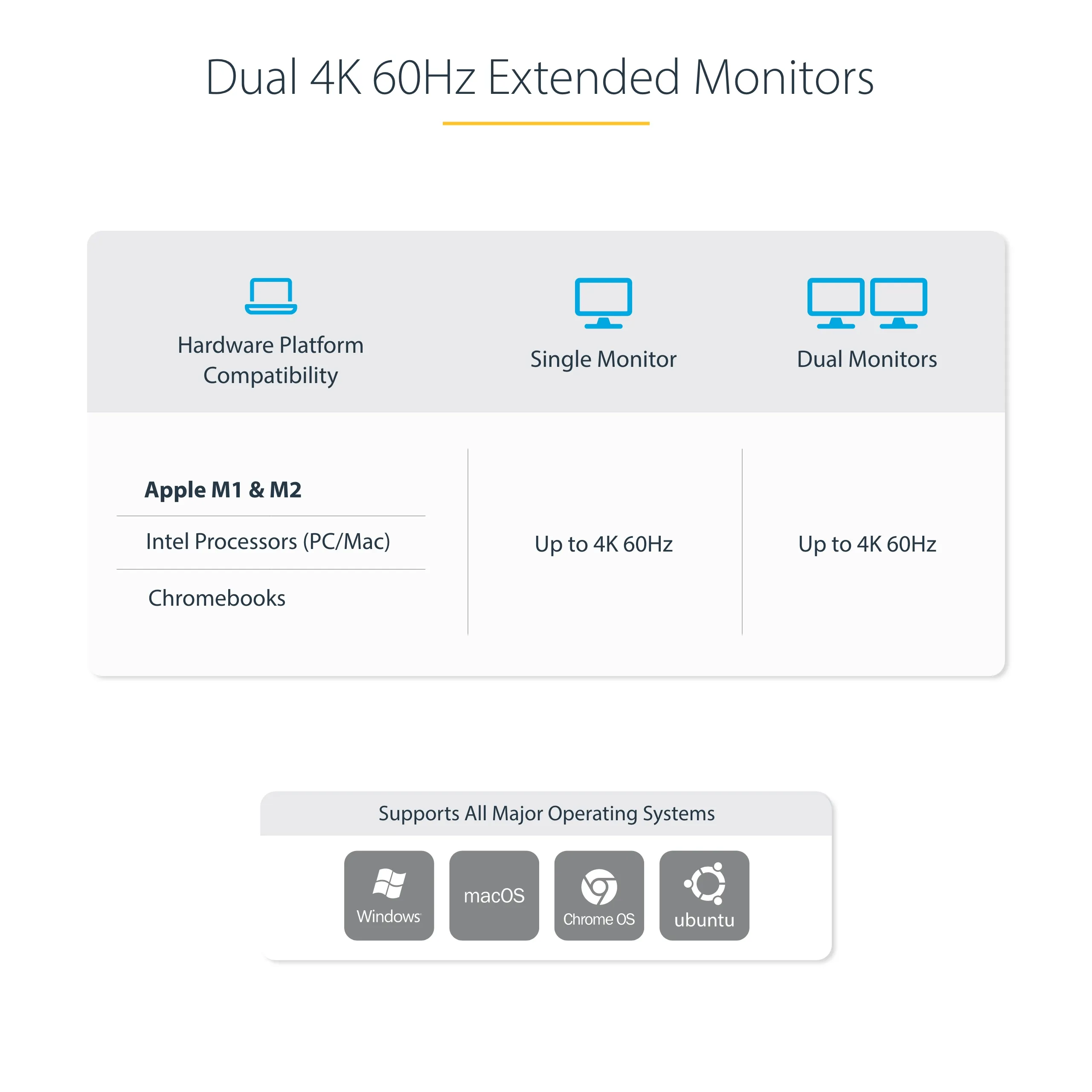

Key Features- Supports dual 4K display output at 60Hz for crystal-clear visuals.
- Multiple USB ports for connecting peripherals and accessories.

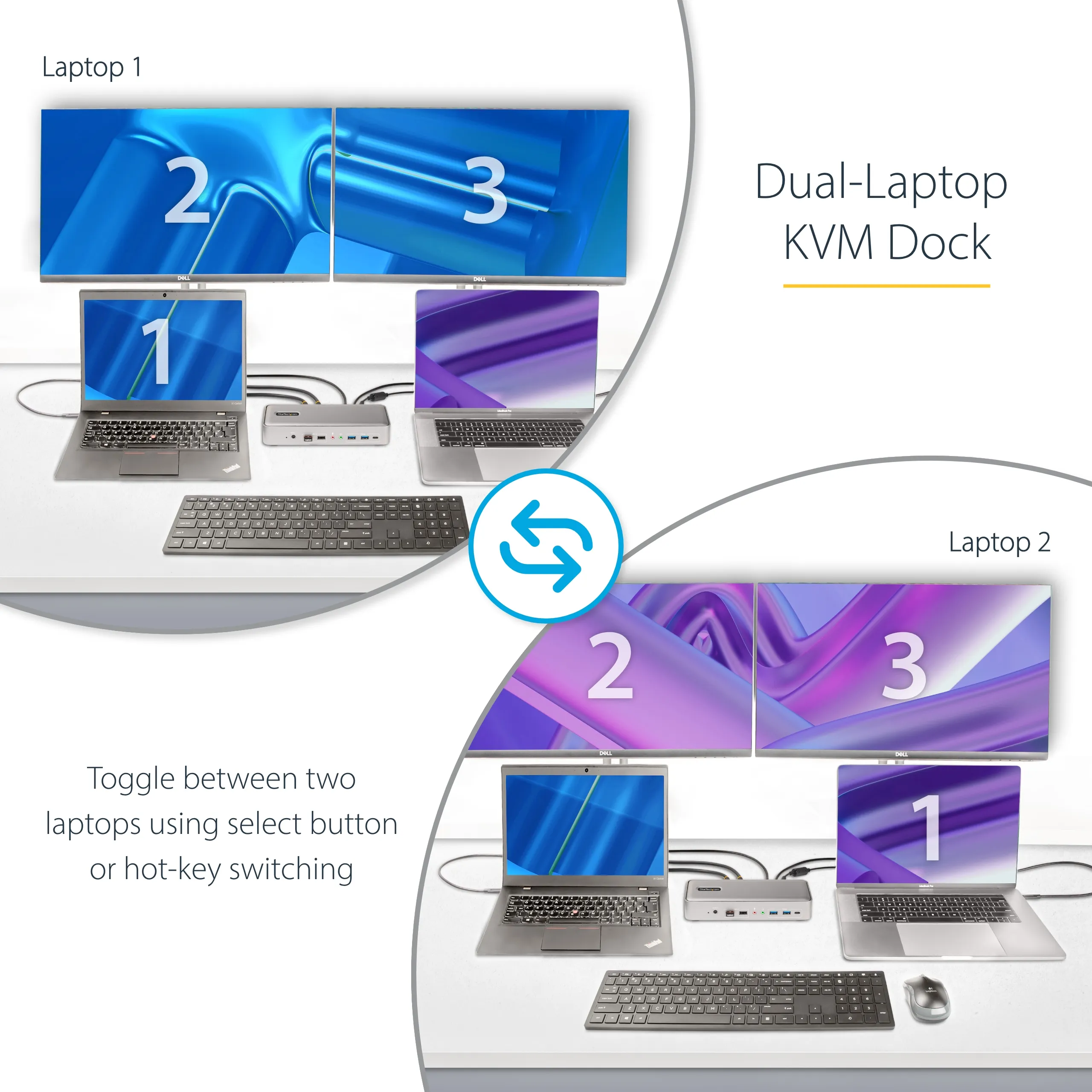

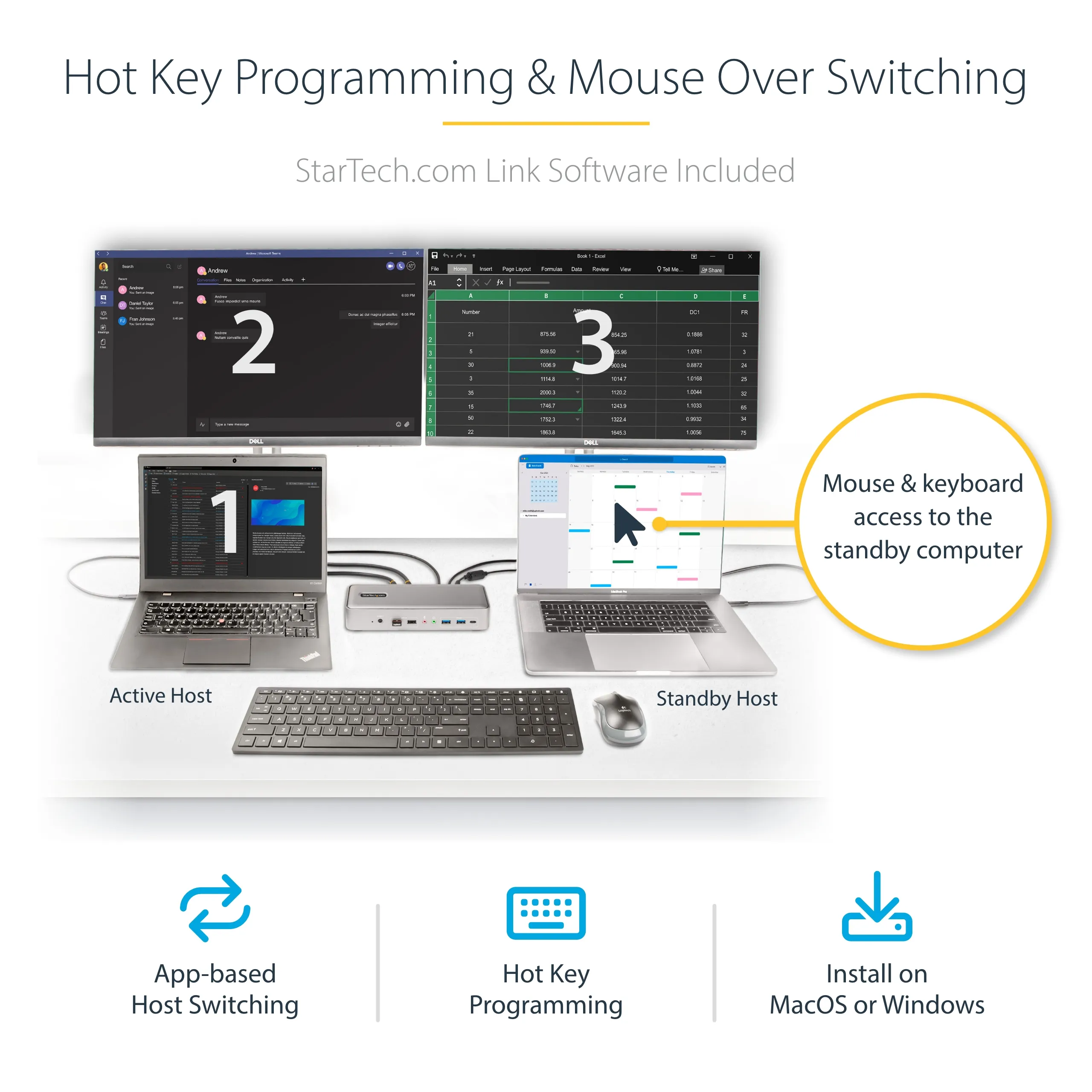

- KVM functionality allows seamless switching between two connected computers.
- Plug-and-play design for easy installation—no additional drivers required.
- Power delivery capability for charging USB-C devices while in use.
- Robust construction for durability and long-lasting use.
- Compatible with various operating systems, enhancing versatility.
- Compact design that fits neatly into any workspace.
- The Startech USB-C KVM Dual 4K 60Hz docking station
- USB-C cable for connection
- Power adapter
- Quick start guide or user manual
- Warranty information
