Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Technical details | |
| Warranty period | 6 year(s) |
| Weight & dimensions | |
| Height | 158 mm |
| Width | 130 mm |
| Depth | 112 mm |
| Radiator width | 11.2 cm |
| Radiator depth | 13 cm |
| Radiator height | 15.8 cm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan 2 dimensions (W x D x H) | 130 x 130 x 28 mm |
| Energy management | |
| Power consumption (typical) | 2.88 W |
| Rated current | 0.36 A |
| Maximum current | 0.36 A |
| Fan voltage | 12 V |
| Thermal Design Power (TDP) | 280 W |
| Rated voltage | 12 V |
| Starting voltage | 12 V |
| LED voltage | 5 V |
| Packaging content | |
| Remote control included | ![]() |
| Mounting kit | ![]() |
| Screws included | ![]() |
| Other features | |
| Connector(s) | 4 pin |
| Design | |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| RoHS compliance | ![]() |
| Radiator material | Copper |
| Number of heat pipes | 7 |
| Illumination LED | ![]() |
| Number of fins | 51 |
| Fins material | Copper |
| Performance | |
| Type | Air cooler |
| Speed detection | ![]() |
| Fan diameter | 13 cm |
| Supported processor sockets | LGA 1200 (Socket H5), LGA 1700, LGA 1851, LGA 2011 (Socket R), LGA 2066, Socket AM4, Socket AM5 |
| Suitable location | Processor |
| Maximum airflow | 69 cfm |
| Maximum air pressure | 2.87 mmH2O |
| Noise level (high speed) | 27 dB |
| Fan speed (max) | 2150 RPM |
| Rotational speed (max) | 2150 RPM |
| Bearing type | Sealed Precision FDB |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 29.7 dB |
| Pulse-width modulation (PWM) support | ![]() |
| Pump connector | 4-pin |
| Fan 2 rotational speed (max) | 1750 RPM |
| Fan 2 noise level (high speed) | 28.3 dB |
| Fan 2 maximum airflow | 81.88 cfm |
| Fan 2 maximum air pressure | 2.38 mmH2O |
| EAN | 0814256018272 |

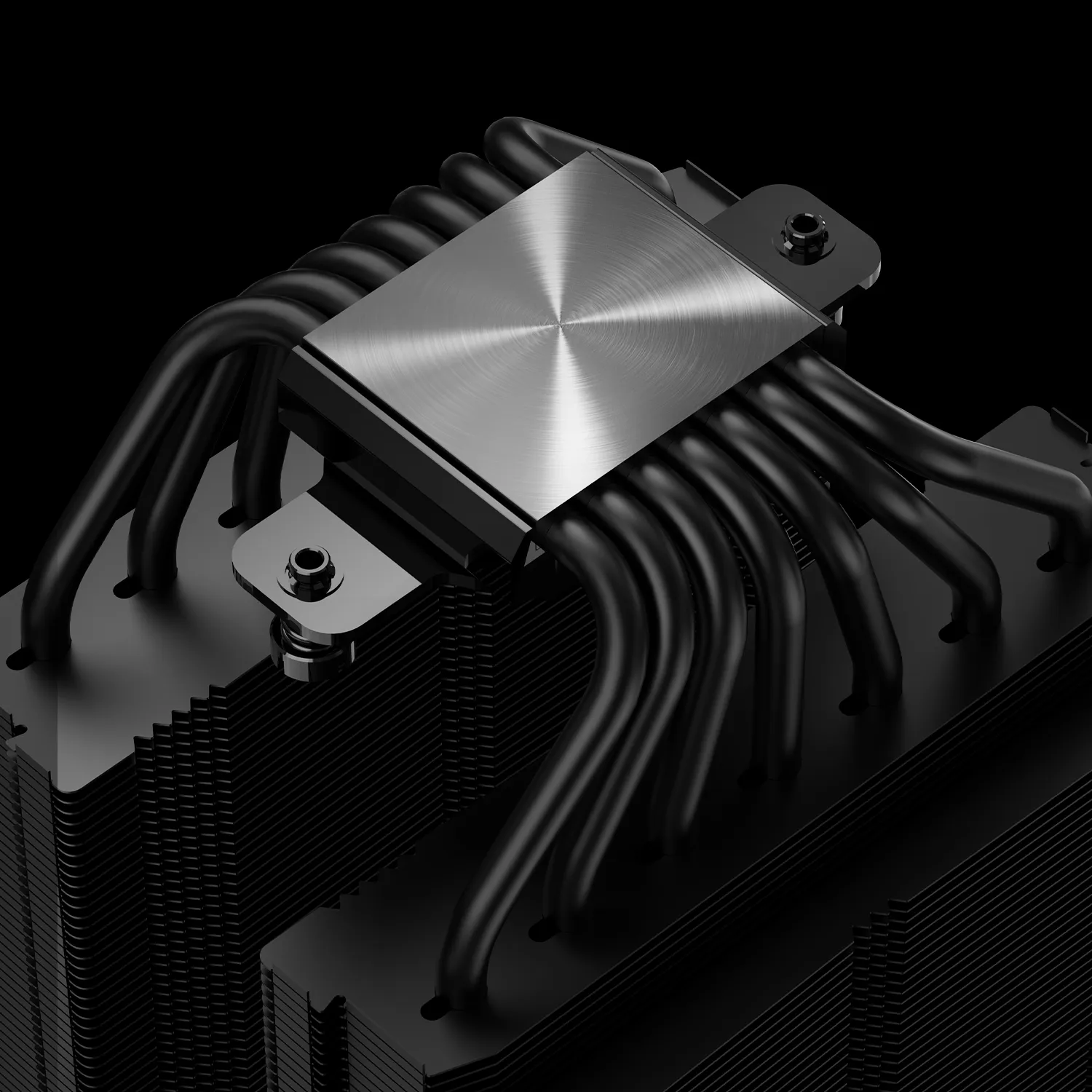

The Thermalright Royal Pretor 130 Ultra BLACK is a dual-tower air cooling solution rated for processors requiring thermal management up to 280W TDP. Heat is transferred efficiently via seven 6mm pure copper heat pipes distributed across the fin array. The base plate is constructed from C1100 pure copper and finished with nickel plating to ensure comprehensive thermal contact with the processor. This structure provides dependable cooling for high-performance Intel and AMD systems, including support for LGA1700 and AM5 sockets.

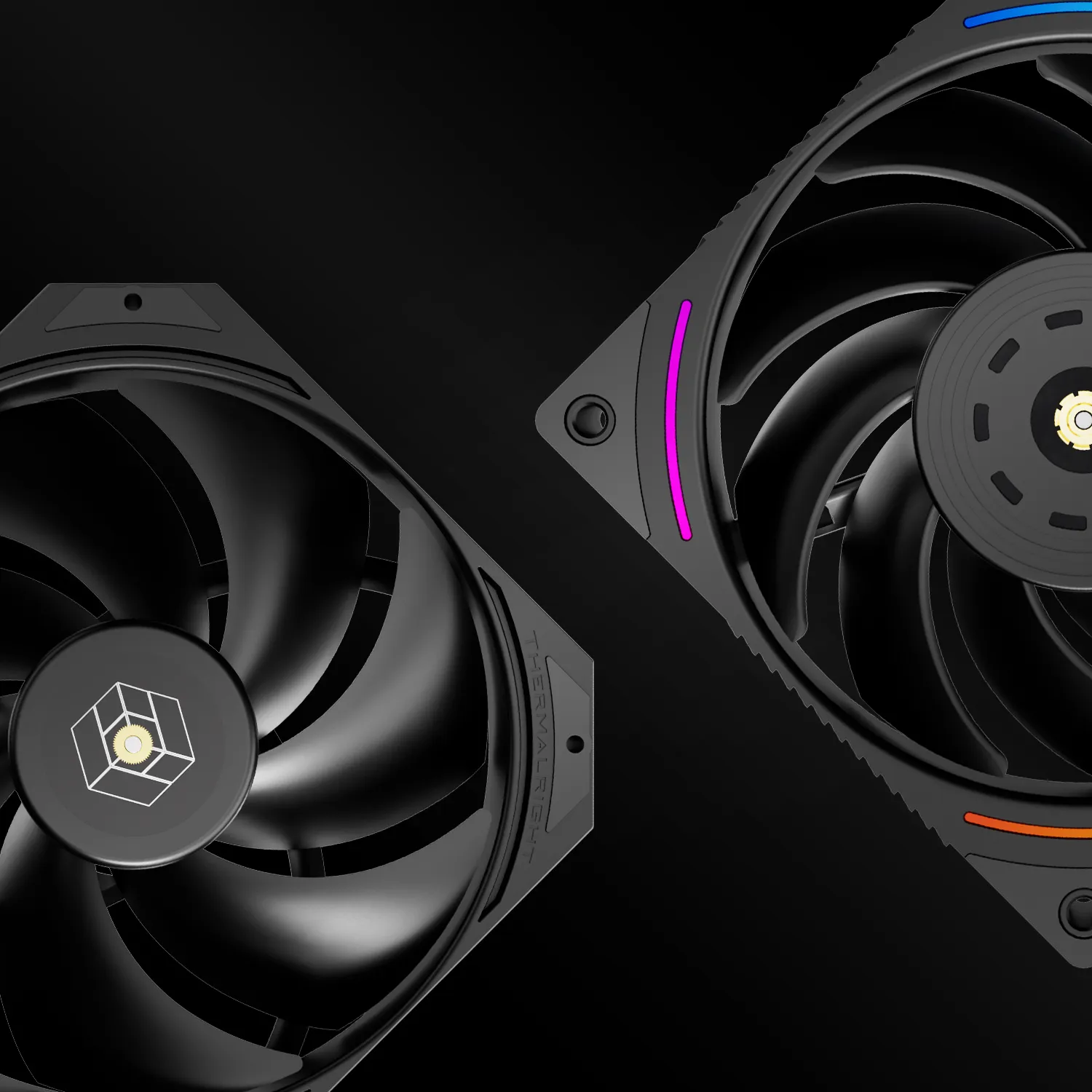

Cooling performance is maintained by a pair of included fans in a push-pull configuration. The primary fan spins up to 2150 RPM, capable of generating 69 CFM airflow and 2.87 mmH₂O static pressure. Both fans operate utilizing an S-FDB V2 bearing system and integrate Pulse Width Modulation (PWM) support for precise speed regulation based on thermal load. When operating at maximum rated speeds, the system generates up to 28.3 dB of noise. The assembled unit has a total height of 158 mm and a weight of 1182 grams.
Key Features:- Supports Intel LGA1700 and AMD AM5 processor sockets
- Maximum thermal dissipation capacity of 280W TDP
- Features seven 6mm pure copper heat pipes
- Base plate constructed from nickel-plated C1100 pure copper
- Dual fan configuration utilizing one 130 mm and one 120 mm fan
- Maximum fan rotational speed up to 2150 RPM
- Integrated PWM control for dynamic fan speeds
- Fan system uses S-FDB V2 bearing technology
- Includes ARGB lighting for aesthetic illumination
- Assembled cooler dimensions are 158 mm height by 130 mm width
