Thermaltake Toughpower GT 1200W - PSU, 80 Plus Gold
Manufacturer: THERMALTAKE
ID: PS-TPT-1200FNFAGE-3
16990€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| PCI Express connector |  |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| EPS power connector (8-pin) | |
| ATX power connector (20+4 pin) | |
| CPU power connector (4+4 pin) | |
| PCI Express power connectors (6+2 pin) | 5 |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 550 mm |
| SATA power cable length | 150,450 mm |
| CPU power cable length | 700 mm |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power cable length | 600 mm |
| EPS power connector (4+4 pin) | |
| PCI Express power connectors (12+4 pin) | 2 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |
| Weight & dimensions | |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 140 mm |
| Energy management | |
| Peak power | 1200 W |
| Input current | 15 - 10 A |
| Nominal power | 1200 W |
| Hold time | 17 ms |
| Power protection features | Over current, Over power, Under voltage, Over voltage, Short circuit |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1200 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 100 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 1200 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
| RoHS compliance | |
| 80 PLUS certification | 80 PLUS Gold |
| Compliance certificates | BIS, BSMI, CB, CCC, CE, EAC, Federal Communications Commission (FCC), ICES, Low Voltage Directive (LVD), RCM, UKCA, cTUVus |
| Design | |
| Product colour | Black |
| Illumination |  |
| Number of fans | 1 fan(s) |
| On/off switch | |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Form factor | ATX |
| Noise level | 0 dB |
| Purpose | PC |
| Bearing technology | Hydraulic |
| Supported motherboard form factors | ATX |
| ATX version | 3.1 |
| Silent mode | |
| Power supply unit (PSU) form factor | ATX |
| EAN | 4711658544087 |

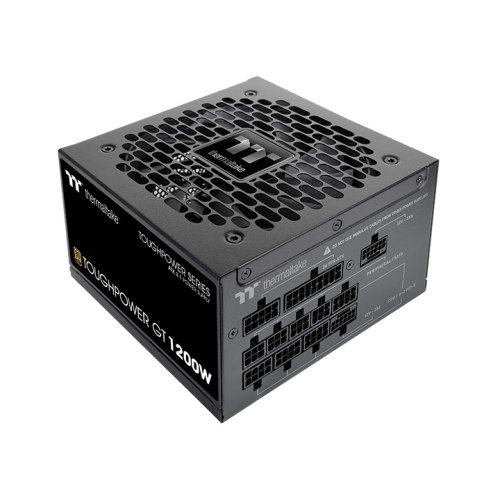

The Thermaltake Toughpower GT is a 1200W power supply unit engineered for high-performance computing systems. It conforms to the ATX 3.1 standard, providing stable and sufficient power for demanding CPUs and GPUs. With an 80 Plus Gold certification, the unit achieves up to 90% efficiency at typical loads, which helps reduce wasted heat and energy consumption. The inclusion of Active Power Factor Correction (PFC) ensures a consistent and clean power draw for sensitive components.
This PSU features a fully modular design, allowing for the use of only necessary cables to improve airflow and simplify cable management within the chassis. It is built in a standard ATX form factor with a 140mm depth, making it compatible with a wide range of computer cases. Cooling is managed by a 120mm fan, and a full suite of industrial-grade protections (OCP, OVP, UVP, OPP, SCP, OTP) is integrated to safeguard the system against power anomalies.
Key Features:- 1200W total power output
- 80 Plus Gold certified efficiency
- ATX 3.1 power supply standard
- Fully modular cabling for clean builds
- Equipped with a 120mm cooling fan
- Features five PCIe 8-pin connectors
- Includes six SATA power connectors
- Comprehensive OCP, OVP, UVP, OPP, SCP, and OTP protections
- Dimensions of 150mm x 86mm x 140mm
