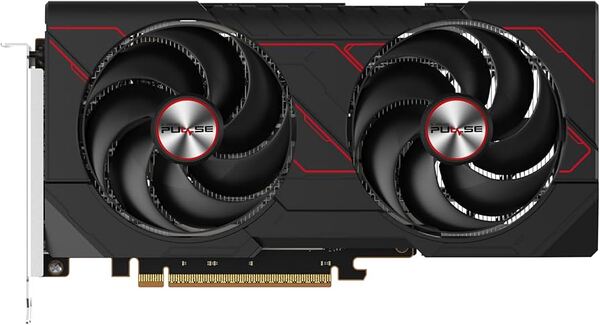

Sapphire Radeon RX 9060 XT Pulse OC 8GB Graphics Card

This SAPPHIRE PULSE graphics card is based on the AMD Radeon RX 9060 XT architecture, featuring 2048 Stream Processors and 32 Ray Accelerators. The unit is factory overclocked, allowing the core clock to boost up to 3290 MHz under heavy load conditions. It incorporates 8 GB of GDDR6 memory operating on a 128-bit memory interface at an effective speed of 20000 MHz. This configuration is optimized for reliable high-refresh-rate gaming performance at 1080p resolution.

The card utilizes an active cooling system with two fans to manage its typical power draw of 170 W. A minimum system power supply of 450 W is recommended, connecting via a single 8-pin supplementary power connector. Its physical design occupies approximately 2.3 slots, with a length of 244 mm, making it suitable for standard ATX enclosures. The display output configuration includes two HDMI ports and one DisplayPort 2.1a connection, supporting a maximum digital resolution of 7680 x 4320 pixels.

• Graphics processor: Radeon RX 9060 XT (OC Edition)
• Video memory: 8 GB GDDR6
• Memory bus width: 128-bit
• Maximum boost clock speed: 3290 MHz
• Stream processors count: 2048
• Integrated Infinity Cache: 32 MB
• Maximum supported displays: 3
• Supported API: Microsoft DirectX 12 Ultimate
• Supported technology: AMD FreeSync
• Power requirements: 1 x 8-pin connector, 450 W PSU minimum
• Cooling system: Active (2 fans)
• Dimensions (L x W x H): 244 mm × 124 mm × 46.1 mm
