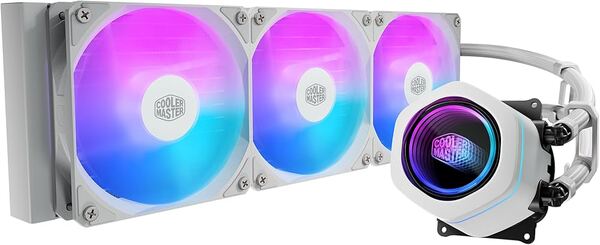

Cooler Master MasterLiquid Core Nex 360mm ARGB Liquid Cooler, White
Manufacturer: COOLER MASTER
ID: MLX-D36M-A18PA-RW
8890€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Weight & dimensions | |
| Weight | 1.65 kg |
| Package weight | 2.73 kg |
| Package depth | 450 mm |
| Package height | 142 mm |
| Package width | 229 mm |
| Fan thickness | 2.5 cm |
| Radiator width | 36 cm |
| Radiator depth | 39.4 cm |
| Radiator height | 39.4 cm |
| Tube length | 40 cm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Pump width | 7.85 cm |
| Pump depth | 8.36 cm |
| Pump height | 6.29 cm |
| Energy management | |
| Rated current | 0.26 A |
| Pump voltage | 12 V |
| Fan voltage | 12 V |
| Fan current | 0.26 A |
| Rated voltage | 12 V |
| Fan power consumption | 7.2 W |
| Pump power consumption | 7.2 W |
| Safety current | 0.37 Ah |
| LED voltage | 12 V |
| Packaging content | |
| Mounting kit |  |
| CPU bracket(s) | |
| RGB controller included | |
| Other features | |
| Built-in display |  |
| Thermal grease | |
| Design | |
| Product colour | White |
| Brightness adjustment | |
| Number of fans | 3 fan(s) |
| Illumination colour | Red, Green, Blue |
| Base plate material | Copper |
| Water block material | Copper |
| Fan connector | 7-pin |
| Radiator material | Aluminum |
| Illumination LED | |
| Fan controller | |
| Performance | |
| Type | Liquid cooling kit |
| Airflow | 122.4 m³/h |
| Fan diameter | 12 cm |
| Supported processor sockets | LGA 1851, LGA 1700, LGA 1200 (Socket H5), LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), Socket AM4, Socket AM5 |
| Suitable location | Processor |
| Maximum airflow | 71.9 cfm |
| Maximum air pressure | 1.86 mmH2O |
| Pump motor speed (max) | 2800 RPM |
| Pump motor speed | 2800 RPM |
| Fan speed (max) | 1750 RPM |
| Fan speed (min) | 650 RPM |
| Rotational speed (max) | 1750 RPM |
| Rotational speed (min) | 650 RPM |
| Bearing type | Rifle bearing |
| Quantity per pack | 3 pc(s) |
| Fan noise level (max) | 27.2 dB |
| Pump noise level | 25 dB |
| Pulse-width modulation (PWM) support | |
| Pump connector | 3-pin + 4-pin |
| Pump's mean time to failure (MTTF) | 35000 h |
| Fan's mean time to failure (MTTF) | 40000 h |
| Fan bearing technology | Rifle bearing |
| Features | |
| Product type | CPU liquid cooler |
| Logistics data | |
| Master (outer) case height | 310 mm |
| Master (outer) case width | 465 mm |
| Master (outer) case length | 475 mm |
| Products per master (outer) case | 4 pc(s) |
| EAN | 4719512161999 |
The Cooler Master MasterLiquid Core Nex 360 is an all-in-one liquid cooling solution engineered for modern high-performance CPUs. It integrates a 360mm aluminum radiator with three 120mm rifle bearing fans to manage thermal output during intensive workloads. The system utilizes Pulse-Width Modulation (PWM) to automatically adjust fan speeds based on processor temperature, providing a balance between cooling effectiveness and operational noise. A copper base plate is used for direct contact with the CPU's integrated heat spreader to facilitate efficient thermal transfer.
This cooler features Addressable RGB lighting on both the pump and fans, allowing for visual customization and synchronization with compatible motherboard software. It is supplied with mounting hardware to support a broad range of current Intel and AMD sockets, ensuring wide-ranging build compatibility. The 400mm flexible tubing accommodates installation in most standard mid-tower and full-tower cases. The pump operates at a consistent 2800 RPM to maintain steady coolant circulation throughout the loop for predictable performance.
Key Features:- Supports Intel LGA 1851/1700/1200/115x and AMD AM5/AM4 sockets
- 360mm radiator constructed from aluminum
- Three 120mm fans with PWM control and rifle bearings
- Fan speed range of 650 to 1750 RPM
- Maximum airflow of 71.9 CFM and static pressure of 1.86 mmH2O
- Pump motor operates at a fixed 2800 RPM
- Addressable RGB illumination on both pump and fans
- Copper base plate for efficient heat transfer
- 400mm flexible tubing for versatile installation
