DeepCool CG580 4F V2 WH Midi-Tower Case with window, with RGB lighting, White
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| USB 2.0 ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| Combo headphone/mic port | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 0 |
| Weight & dimensions | |
| Weight | 8.8 kg |
| Height | 501 mm |
| Width | 235 mm |
| Depth | 437 mm |
| Storage | |
| Card reader integrated | ![]() |
| Number of HDDs supported | 2 |
| Supported HDD sizes | 2.5,3.5" |
| Number of storage drives supported | 4 |
| HDD/SSD combo cage | ![]() |
| SSD form factor | 2.5" |
| Packaging data | |
| LED controller | ![]() |
| Cooling | |
| Cooling | ![]() |
| Front fans installed | 3x 120 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Side fans diameters supported | 120,140 mm |
| Rear fans diameters supported | 120,140 mm |
| Top fans diameters supported | 120,140 mm |
| Bottom fans diameters supported | 120 mm |
| Number of side fans supported (max) | 3 |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Number of bottom fans supported (max) | 2 |
| Side fans installed | 3x 120 mm |
| Rear fans installed | 1x 120 mm |
| Liquid cooling capability | ![]() |
| Rear radiator sizes supported | 120,140 mm |
| Front radiator sizes supported | 120,140,360 mm |
| Rear radiator installed | ![]() |
| Front radiator installed | ![]() |
| Top radiator installed | ![]() |
| Top radiator sizes supported | 120,140,240,280,360 mm |
| Pulse-width modulation (PWM) support | ![]() |
| Fan speed control | ![]() |
| Bottom radiator sizes supported | 120 mm |
| Side radiator fan sizes supported | 120,140,360 mm |
| Other features | |
| Power LED | ![]() |
| Screws included | ![]() |
| Design | |
| Type | PC |
| Rack mounting | ![]() |
| Form factor | Midi Tower |
| Material | Acrylonitrile butadiene styrene (ABS), SGCC, Tempered glass |
| Cable lock slot | ![]() |
| LED indicators | ![]() |
| Product colour | White |
| Illumination | ![]() |
| Cable management | ![]() |
| Reset button | ![]() |
| Supported motherboard form factors | ATX, ITX, micro ATX |
| Anti-dust filter | ![]() |
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 2 |
| Illumination colour | Multi |
| Suitable for | Gaming |
| Transport wheels | ![]() |
| Side window | ![]() |
| Number of internal 3.5" bays | 2 |
| Maximum CPU cooler height | 17.6 cm |
| Maximum graphics card length | 41 cm |
| Number of expansion slots | 7 |
| Maximum PSU length | 21 cm |
| Illumination location | Case fans |
| Number of 2.5" bays | 2 |
| On/off button | ![]() |
| Tempered glass panel(s) | ![]() |
| RGB control button | ![]() |
| Power supply | |
| Number of power supply units | 1 |
| Power supply location | Bottom |
| Power supply included | ![]() |
| Supported power supply form factors | ATX, PS2 |
| EAN | 6933412765400 |

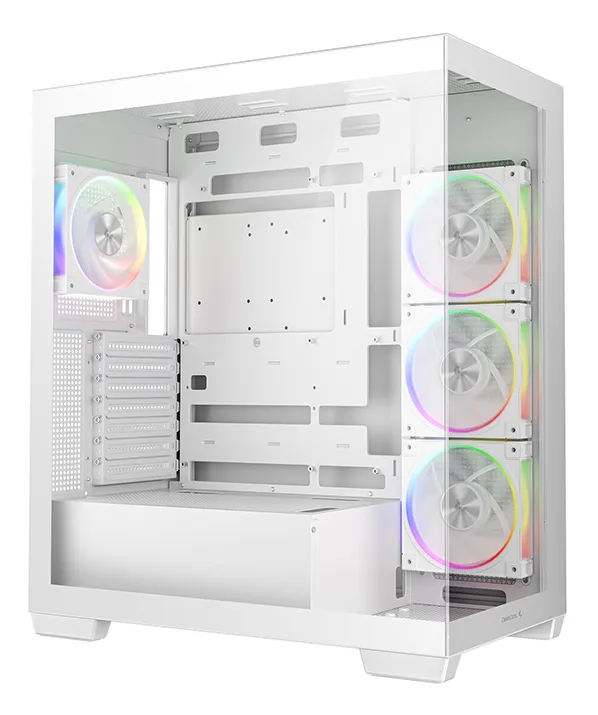

The DeepCool CG580 4F V2 WH is a single-chamber Midi Tower case designed for component visibility. Its construction removes the front A-pillar, combining front and side tempered glass panels to create an unobstructed 270-degree panoramic view of the interior. The chassis is built from SGCC steel and ABS plastic, providing a stable frame for a system build that prioritizes hardware display. This configuration is compatible with ATX, Micro-ATX, and ITX motherboard form factors.

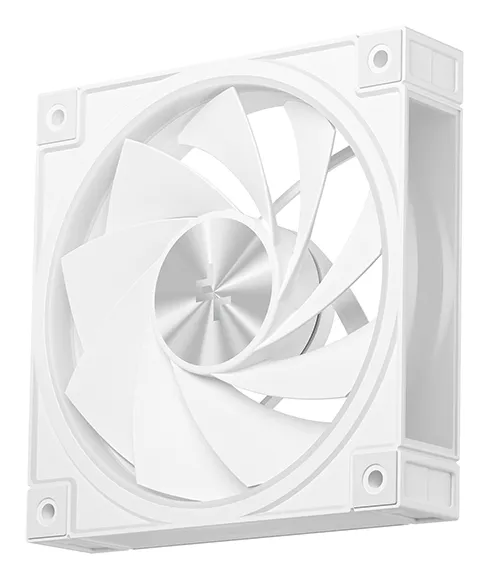

Thermal management is handled by four pre-installed 120 mm ARGB PWM fans, with three positioned for side intake and one for rear exhaust. The case offers extensive cooling flexibility, with mounts for up to a 360 mm radiator on the top, front, or side panels. It provides clearance for CPU coolers up to 176 mm in height and power supplies up to 210 mm in length. Additional build-oriented features include removable dust filters, integrated cable management routing, and a dedicated RGB control button on the I/O panel.
Key Features:- Supports ATX, Micro-ATX, and ITX motherboards
- Features 1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, and a combo audio jack
- Accommodates up to two 3.5-inch and two 2.5-inch drives
- Provides 176 mm for CPU cooler height and 210 mm for PSU length
- Includes 7 standard horizontal expansion slots
- Fits up to a 360 mm radiator on the top, front, or side mounts
- Constructed with a steel frame, ABS accents, and tempered glass panels
