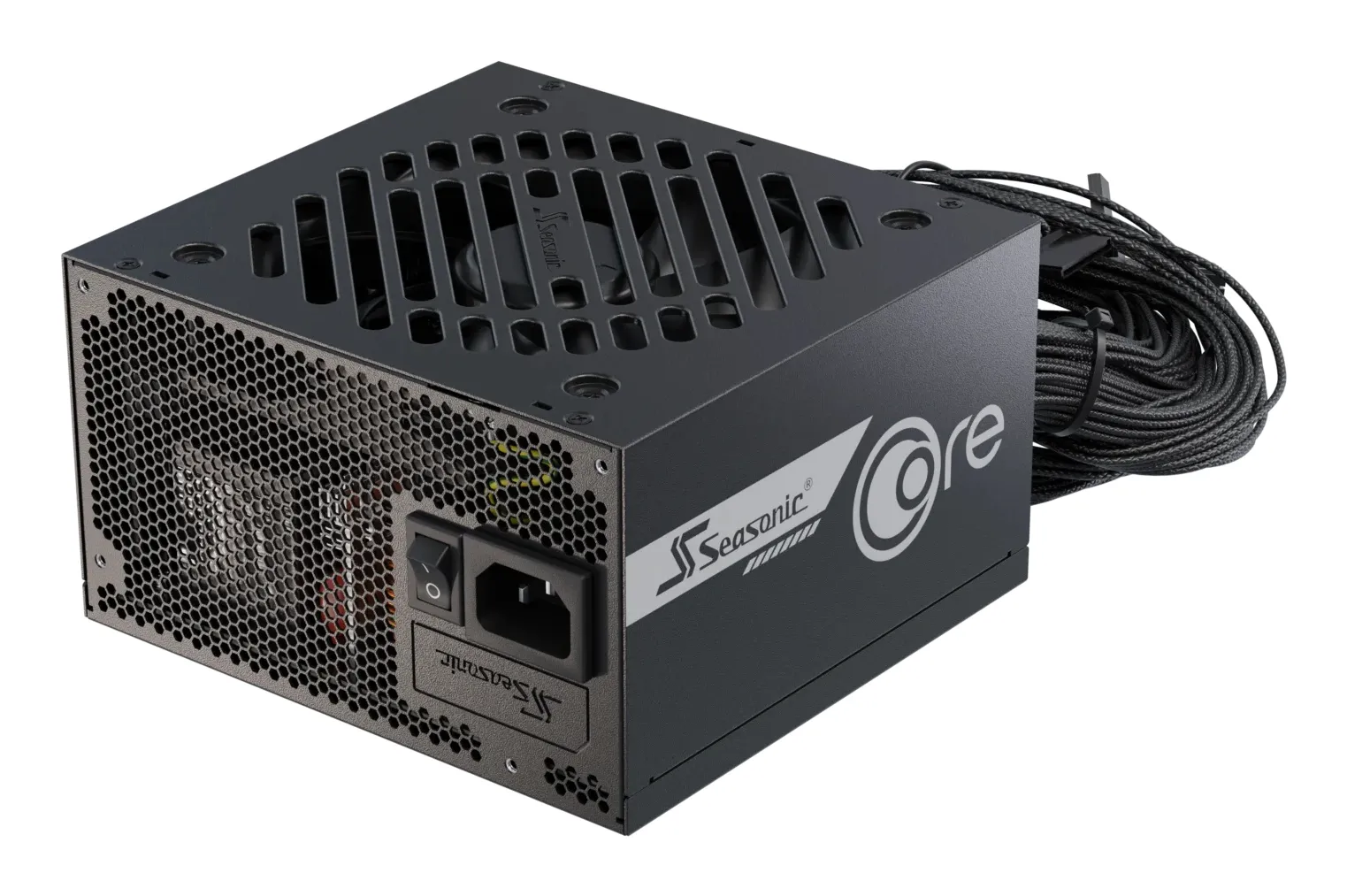

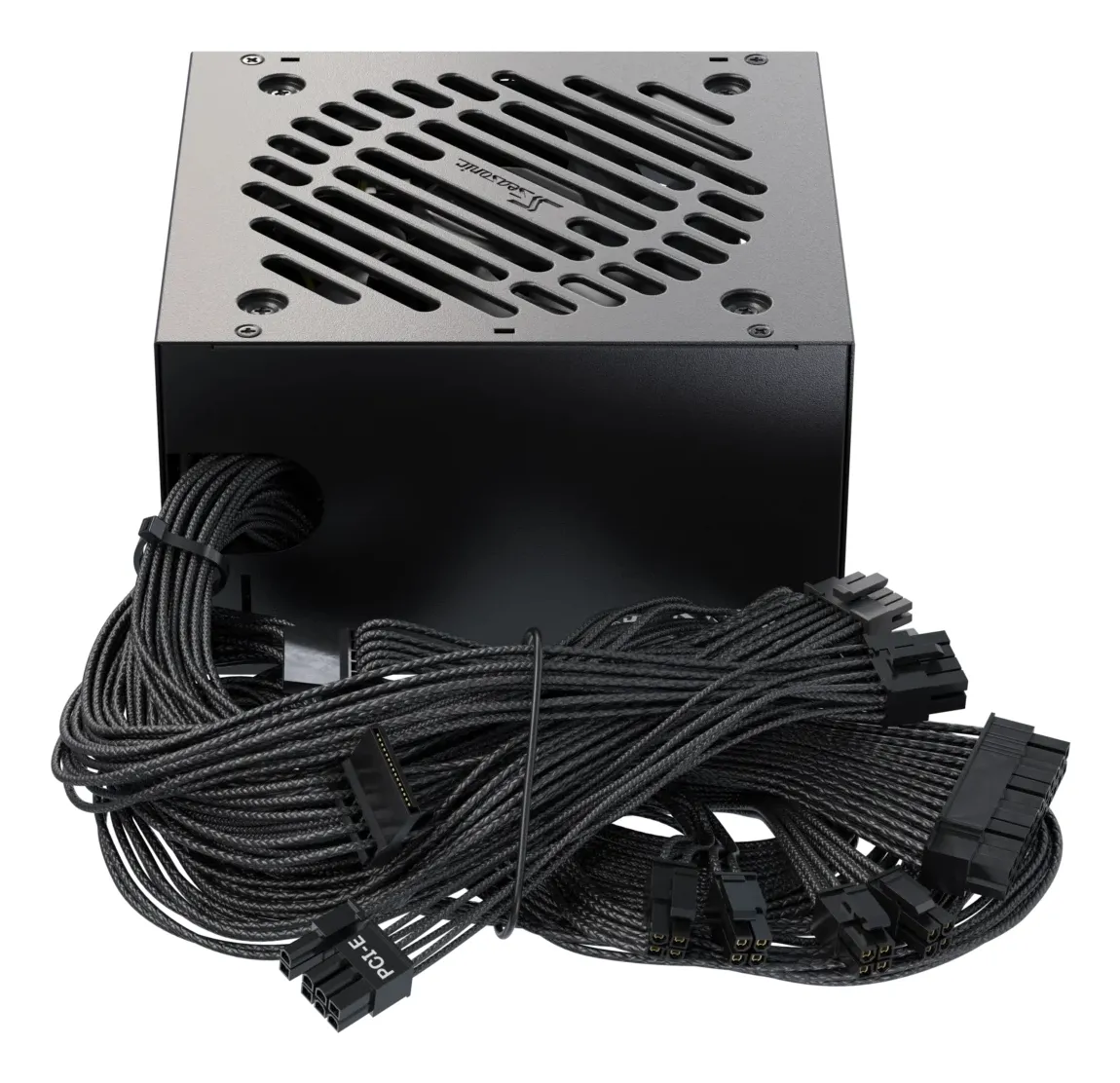

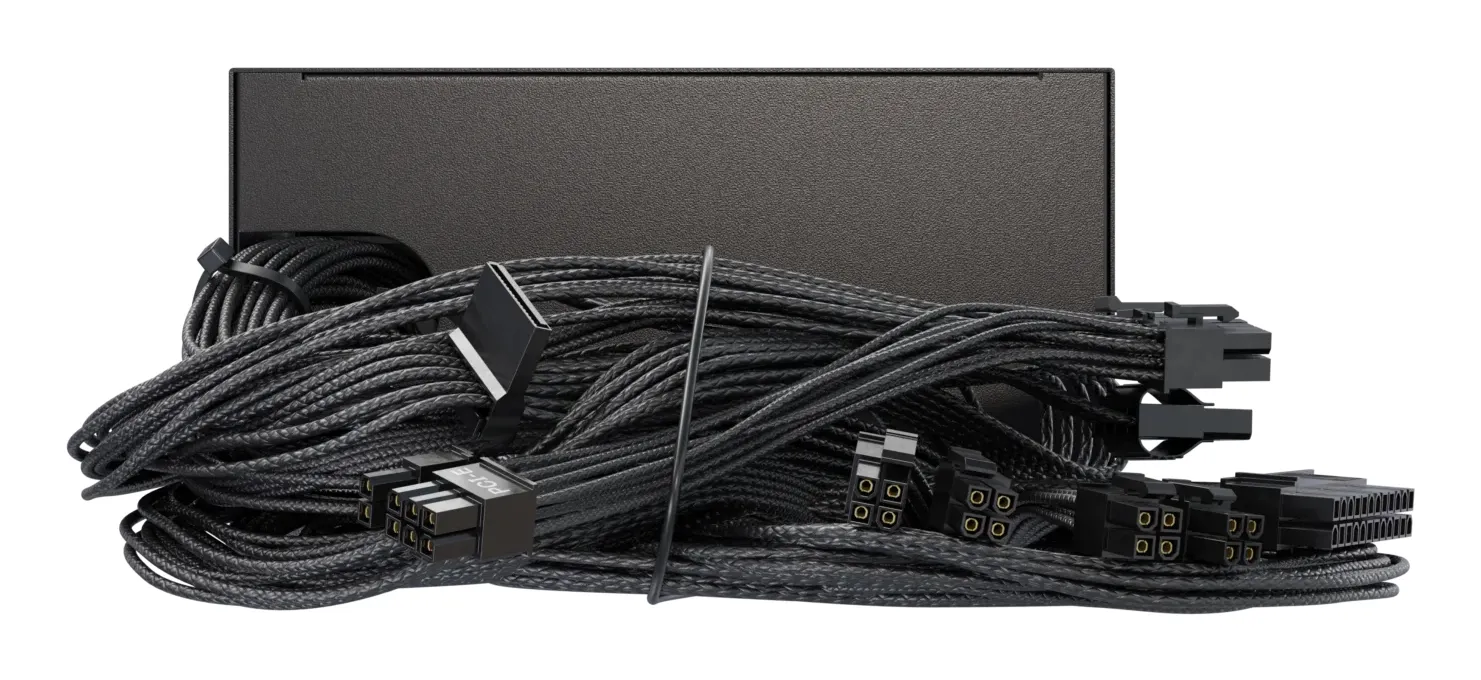

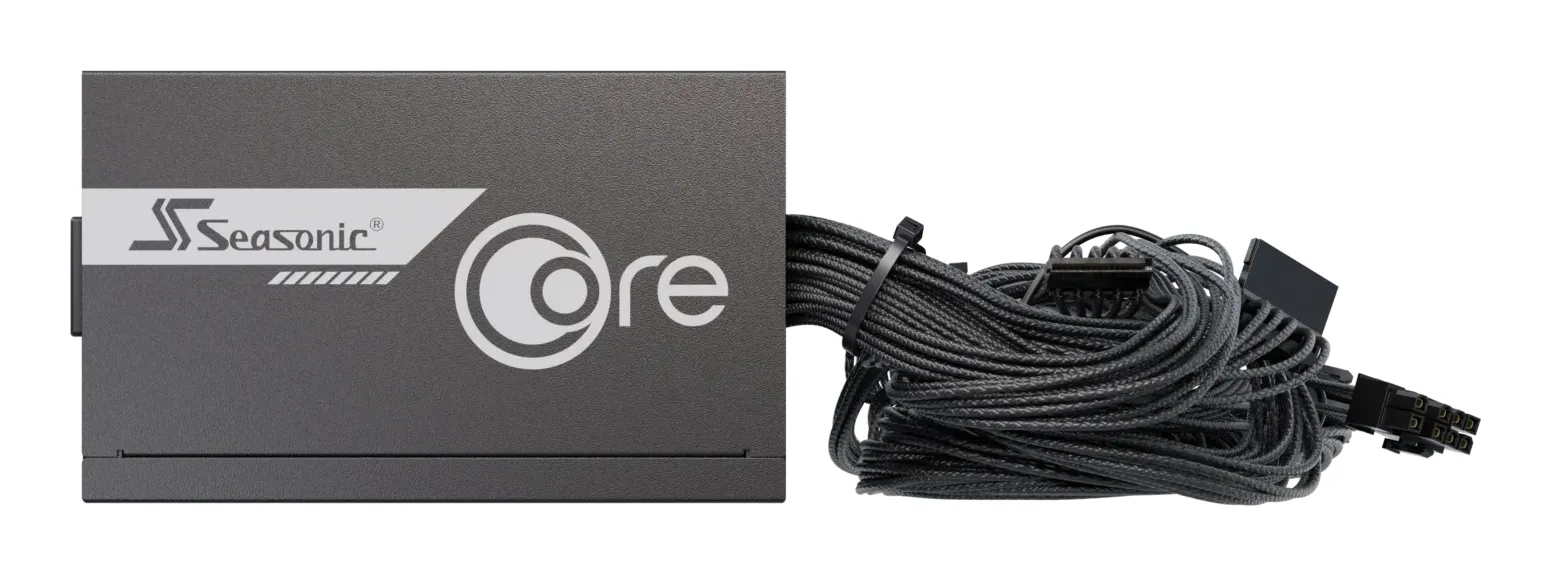

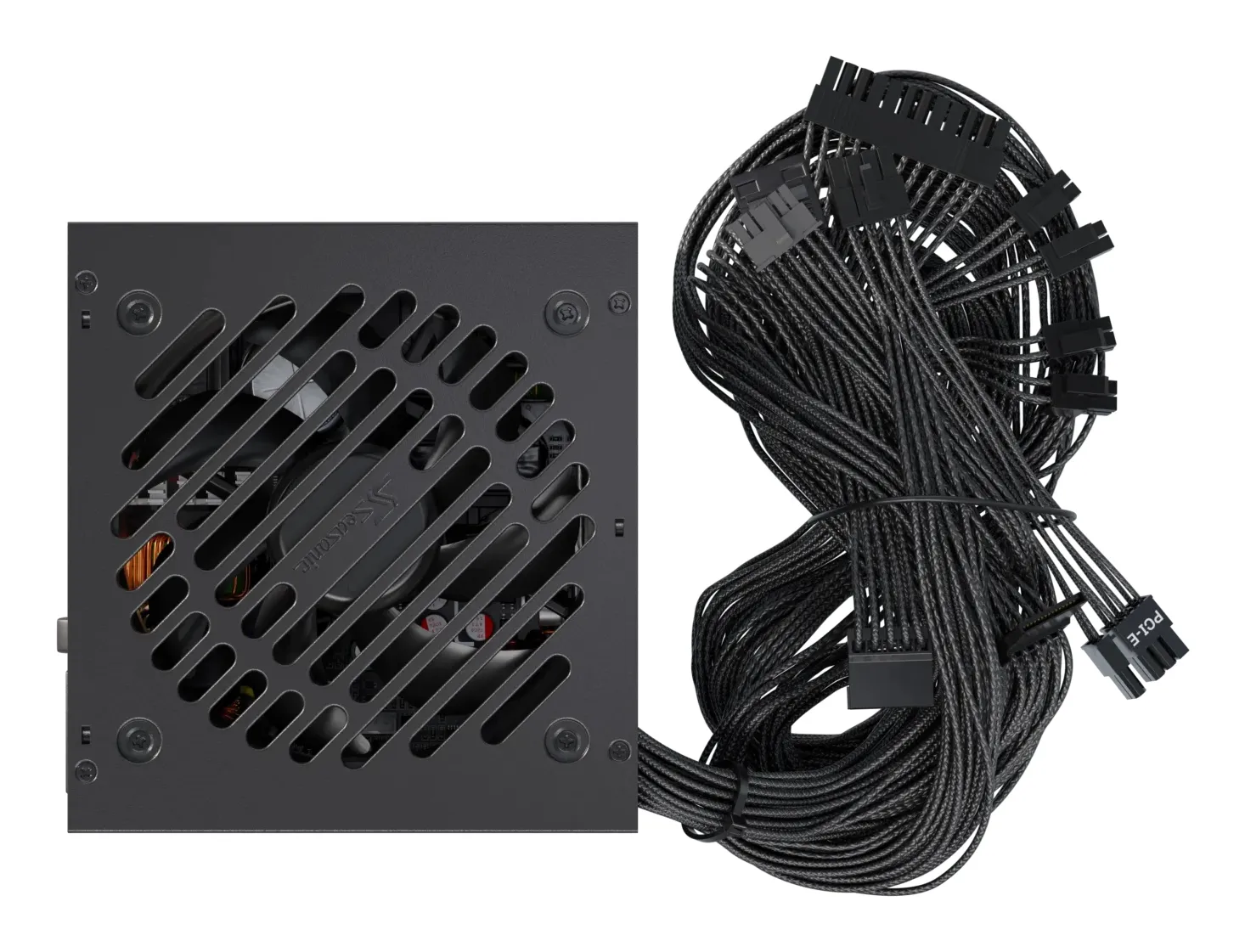

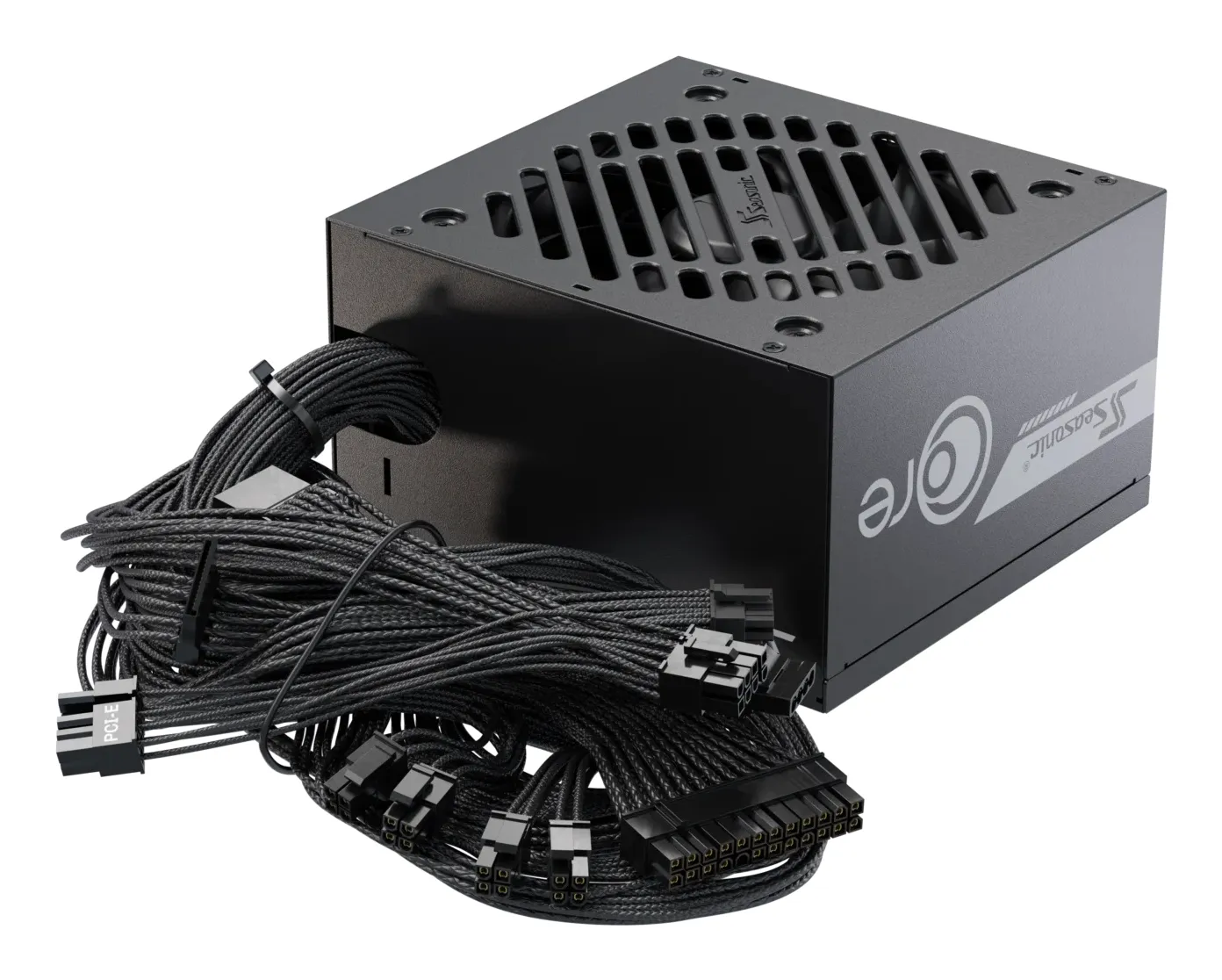

Seasonic CORE GC-850 850W - PSU, 80 Plus Gold
Manufacturer: SEA SONIC ELECTRONICS
ID: SRP-CGC851-A5A32SF
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability 1
Delivery
Price development
Manuals
| Technical details | |
| Sustainability certificates | ENERGY STAR, ErP |
| Ports & interfaces | |
| PCI Express connector |  |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | |
| ATX power connector (20+4 pin) | |
| PCI Express power connectors (8-pin) | 3 |
| CPU power connector (4+4 pin) | |
| PCI Express power connectors (6+2 pin) | 1 |
| Cabling type | Non-Modular |
| Number of PATA power connectors | 2 |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 750 mm |
| CPU power cable length | 60 cm |
| Peripheral (Molex) power cable length | 600 mm |
| PCI Express power cable length | 55 cm |
| Weight & dimensions | |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 140 mm |
| Energy management | |
| Peak power | 850 W |
| Input current | 11 - 5.5 A |
| Nominal power | 850W |
| Power protection features | Over current, Over power, Under voltage, Over voltage, Short circuit, Overheating |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 840 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 850 W |
| Operational conditions | |
| Operating relative humidity (H-H) | 15 - 65% |
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging data | |
| Package type | Box |
| Certificates | |
| Certification | CE, CB, CCC, cTUVus, TUV, BSMI, EAC, UKCA, Energy Star, RoHS, REACH, WEEE, ErP Lot 6 |
| RoHS compliance | |
| 80 PLUS certification | 80 PLUS Gold |
| Compliance certificates | CE, CB, China Compulsory Certification (CCC), cTUVus, BSMI, EAC, UKCA, RoHS, REACH, WEEE |
| Packaging content | |
| Cables included | AC |
| Design | |
| Product colour | Black |
| Illumination |  |
| Number of fans | 1 fan(s) |
| On/off switch | |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Form factor | ATX |
| Purpose | PC |
| Bearing technology | Ball bearing |
| Supported motherboard form factors | ATX |
| ATX version | 3.1 |
| Silent mode | |
| Power supply unit (PSU) form factor | ATX |
| Features | |
| Product type | Power supply unit |
| EAN | 4711173879114 |
The Seasonic CORE GC-850W is an ATX power supply unit designed to provide 850 watts of continuous power for desktop systems. It is built to the ATX 3.1 standard, ensuring appropriate power delivery and connector support for current-generation hardware. With an 80 PLUS Gold certification, the unit operates with high energy efficiency, which helps reduce wasted heat and electricity consumption. The standard ATX dimensions, combined with a compact 140 mm depth, facilitate installation in a wide variety of computer chassis.
Thermal management is handled by a 120 mm fan featuring Smart and Silent Fan Control (S2FC), which modulates fan speed according to system load for quieter operation under light workloads. This model utilizes a non-modular design with fixed cables directly attached to the main unit. A complete suite of industrial-grade protections, such as Over Voltage Protection (OVP) and Short Circuit Protection (SCP), is integrated to safeguard connected components from electrical irregularities. The steel casing is coated with a scratch-resistant finish for increased durability.
Key Features:- Delivers 850W of total power
- Carries an 80 PLUS Gold efficiency certification
- Built to the ATX 3.1 standard
- Features a compact 140 mm depth in an ATX form factor
- Uses a non-modular, fixed cable design
- Equipped with a 120mm fan with intelligent speed control
- Includes one 12VHPWR (12V-2x6) connector for modern GPUs
- Incorporates protections for OVP, UVP, OCP, OPP, SCP, and OTP
