Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Technical details | |
| Sustainability certificates | ErP |
| Compliance certificates | Federal Communications Commission (FCC), CE |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 |
| Supported processor sockets | LGA 1851 |
| Memory | |
| Maximum internal memory | 256 GB |
| ECC | ![]() |
| Non-ECC | ![]() |
| Supported memory clock speeds | 5600,6800,4800,4400,6533,8666 MHz |
| Supported memory types | DDR5 |
| Memory channels | Dual-channel |
| Unbuffered memory | ![]() |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | Non-ECC |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 305 mm |
| Networking | |
| Wi-Fi standards | 802.11ax |
| Bluetooth version | 5.4 |
| Ethernet LAN | ![]() |
| Bluetooth | ![]() |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | ![]() |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| CPU fan connector | ![]() |
| ATX Power connector (24-pin) | ![]() |
| Number of EATX power connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | ![]() |
| TPM connector | ![]() |
| EPS power connector (8-pin) | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | ![]() |
| 12V power connector | ![]() |
| RGB LED pin header | ![]() |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 1 |
| Number of EPS power connectors (8-pin) | 2 |
| Back panel I/O ports | |
| Line-in | ![]() |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | ![]() |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Storage controllers | |
| RAID levels | 0/1/5/10 |
| Number of HDDs supported | 4 |
| RAID support | ![]() |
| Number of storage drives supported | 7 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 5.0, M.2, SATA III |
| Packaging content | |
| Cables included | SATA |
| Screws included | ![]() |
| Antenna included | ![]() |
| M.2 standoff included | ![]() |
| Expansion slots | |
| PCI Express x16 slots | 2 |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Clear CMOS button | ![]() |
| Graphics | |
| Parallel processing technology support | Not supported |
| HDCP | ![]() |
| HDCP version | 2.3 |
| High Dynamic Range (HDR) supported | ![]() |
| Processor special features | |
| Intel Extreme Memory Profile (XMP) | ![]() |
| Features | |
| Motherboard chipset | Intel B860 |
| Motherboard form factor | ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | Intel |
| Component for | PC |
| Product type | Motherboard |
| Audio chip | Realtek ALC1220 |
| EAN | 4711581494190 |

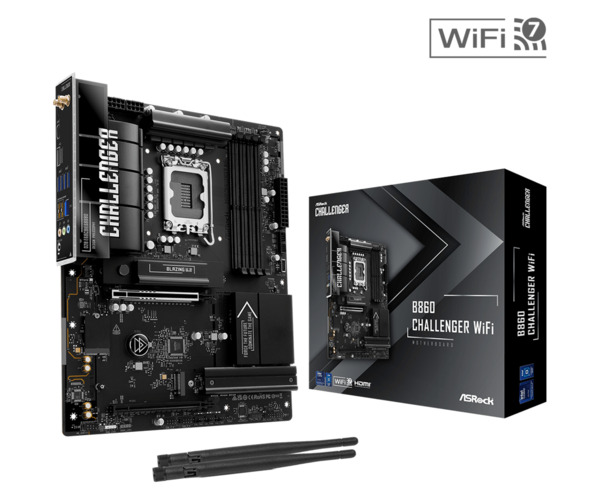

The ASRock 90-MXBUC0-A0UAYZ is an ATX motherboard designed for the Intel B860 chipset and LGA 1851 socket. It provides native support for Intel Core Ultra 200 Series processors, serving as a foundation for contemporary desktop and workstation systems. The board is equipped with a robust power delivery system to ensure stable operation under various workloads. Its primary expansion slot is a PCIe 5.0 x16 interface, which accommodates the full bandwidth of current-generation graphics cards, supplemented by a PCIe 4.0 x16 slot for additional hardware.
This motherboard accommodates up to 256 GB of dual-channel DDR5 memory across its four DIMM slots, with supported speeds reaching up to 8000 MHz. Storage options are extensive, with three M.2 slots available for high-speed NVMe drives and four SATA III connectors for traditional storage devices. For networking, it includes a 2.5GbE LAN port for high-speed wired connections, alongside integrated Wi-Fi 7 and Bluetooth 5.4 for wireless connectivity. The rear I/O offers a practical selection of USB ports, HDMI 2.1, and DisplayPort for peripherals and multi-monitor configurations.
Key Features:- Supports Intel Core Ultra 200 Series processors
- Features the LGA 1851 socket and Intel B860 chipset
- Accommodates up to 256 GB of DDR5 memory
- Provides four DIMM slots for dual-channel configurations
- Offers one PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot
- Includes three M.2 slots and four SATA III ports
- Equipped with 2.5GbE LAN, Wi-Fi 7, and Bluetooth 5.4
- Features the Realtek ALC1220 audio chip
- Built on the standard ATX form factor
- Supports RAID levels 0, 1, 5, and 10
