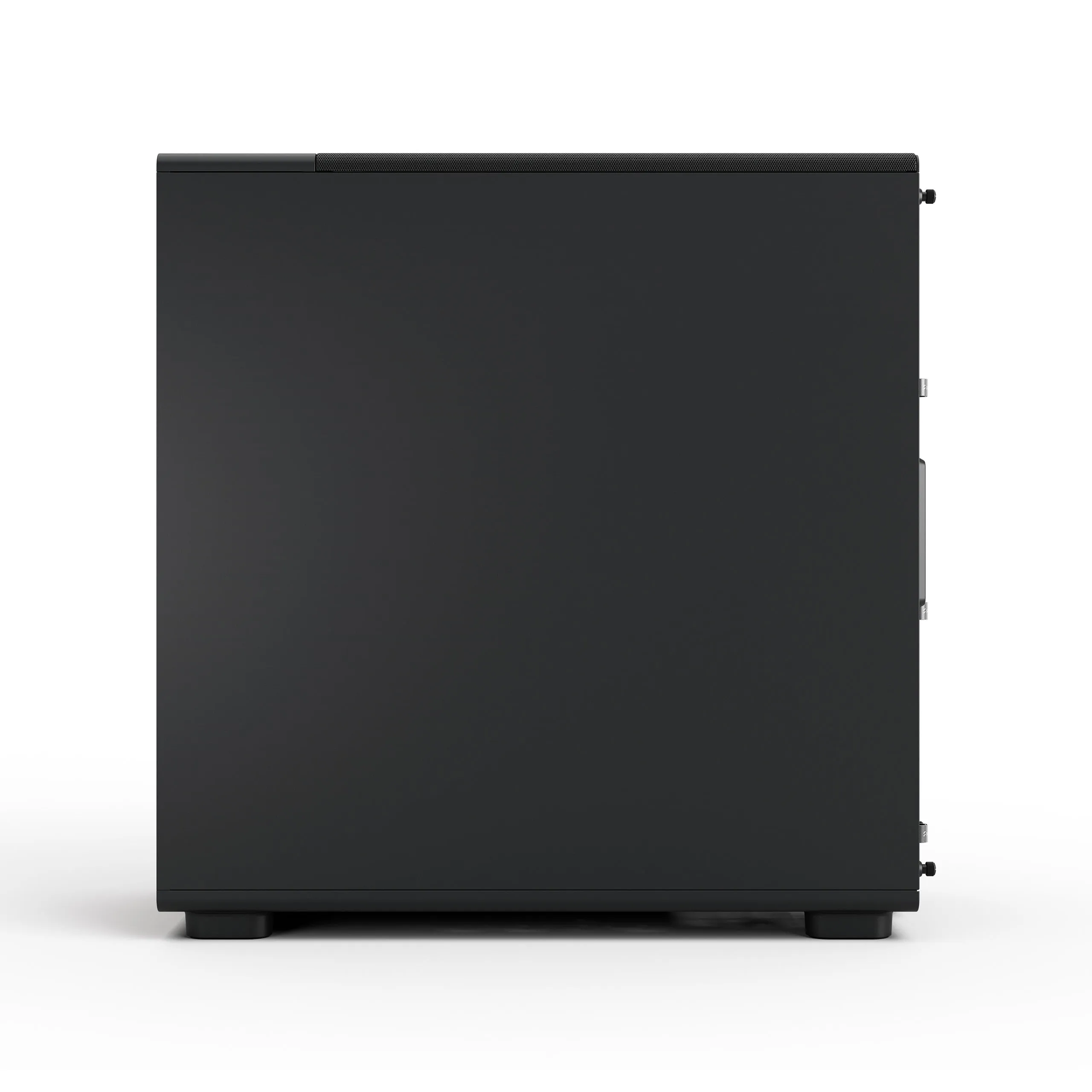

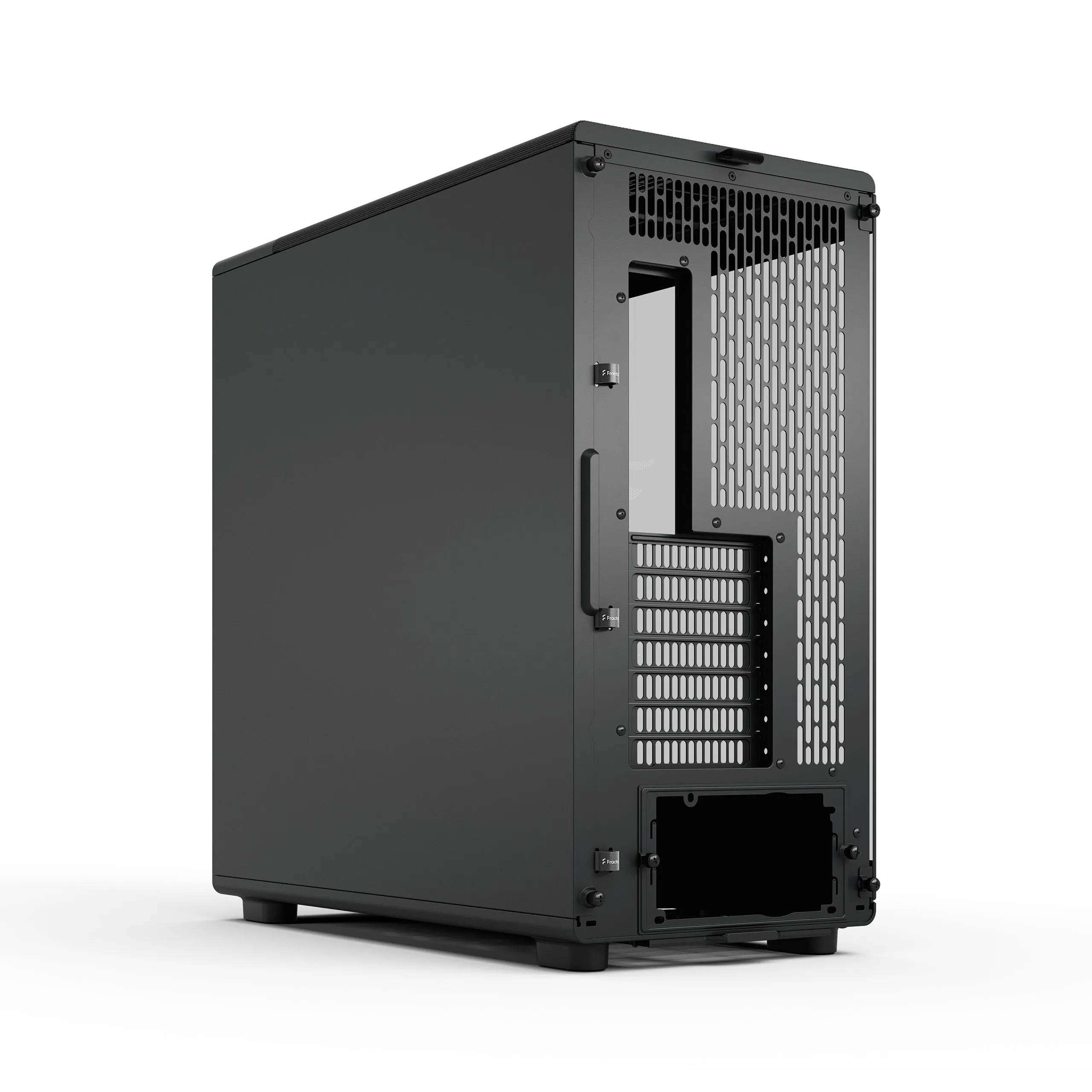

Fractal Design Epoch XL Full-Tower Case with RGB lighting and light tinted window, Black
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| Audio input | Yes |
| Audio output | Yes |
| Headphone outputs | 1 |
| Microphone in | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| Combo headphone/mic port | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Weight & dimensions | |
| Weight | 9.75 kg |
| Height | 509 mm |
| Width | 240 mm |
| Depth | 503 mm |
| Storage | |
| Card reader integrated | ![]() |
| Number of HDDs supported | 4 |
| Supported HDD sizes | 2.5,3.5" |
| Number of storage drives supported | 4 |
| Supported storage drive types | HDD, SSD |
| HDD/SSD combo cage | ![]() |
| SSD form factor | 2.5" |
| Packaging data | |
| Package weight | 11.6 kg |
| Package depth | 602 mm |
| Package height | 606 mm |
| Package width | 353 mm |
| LED controller | ![]() |
| Cooling | |
| Cooling | ![]() |
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 140 mm |
| Rear fans diameters supported | 120 mm |
| Top fans diameters supported | 140,120 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Liquid cooling capability | ![]() |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 280,360 mm |
| Rear radiator installed | ![]() |
| Front radiator installed | ![]() |
| Top radiator installed | ![]() |
| Top radiator sizes supported | 280,360 mm |
| Fan speed control | ![]() |
| Other features | |
| Power LED | ![]() |
| On/off switch | ![]() |
| Screws included | ![]() |
| Design | |
| Type | PC |
| Rack mounting | ![]() |
| Form factor | Full Tower |
| Material | Steel |
| Cable lock slot | ![]() |
| LED indicators | ![]() |
| Product colour | Black |
| Illumination | ![]() |
| Cable management | ![]() |
| Reset button | ![]() |
| Supported motherboard form factors | ATX, micro ATX, ITX, EATX |
| Anti-dust filter | ![]() |
| Number of 5.25" bays | 0 |
| Number of 3.5" bays | 2 |
| Illumination colour | Multi |
| Suitable for | Gaming |
| Transport wheels | ![]() |
| Side window | ![]() |
| Number of internal 3.5" bays | 2 |
| Maximum CPU cooler height | 17.6 cm |
| Maximum graphics card length | 42.5 cm |
| Number of expansion slots | 7 |
| Maximum PSU length | 29 cm |
| Number of 2.5" bays | 2 |
| On/off button | ![]() |
| Tempered glass panel(s) | ![]() |
| RGB control button | ![]() |
| Power supply | |
| Number of power supply units | 1 |
| Power supply location | Bottom |
| Power supply included | ![]() |
| Supported power supply form factors | ATX |
| Features | |
| Product type | PC Case |
| EAN | 7340172710400 |
| Warranty | 2 years |

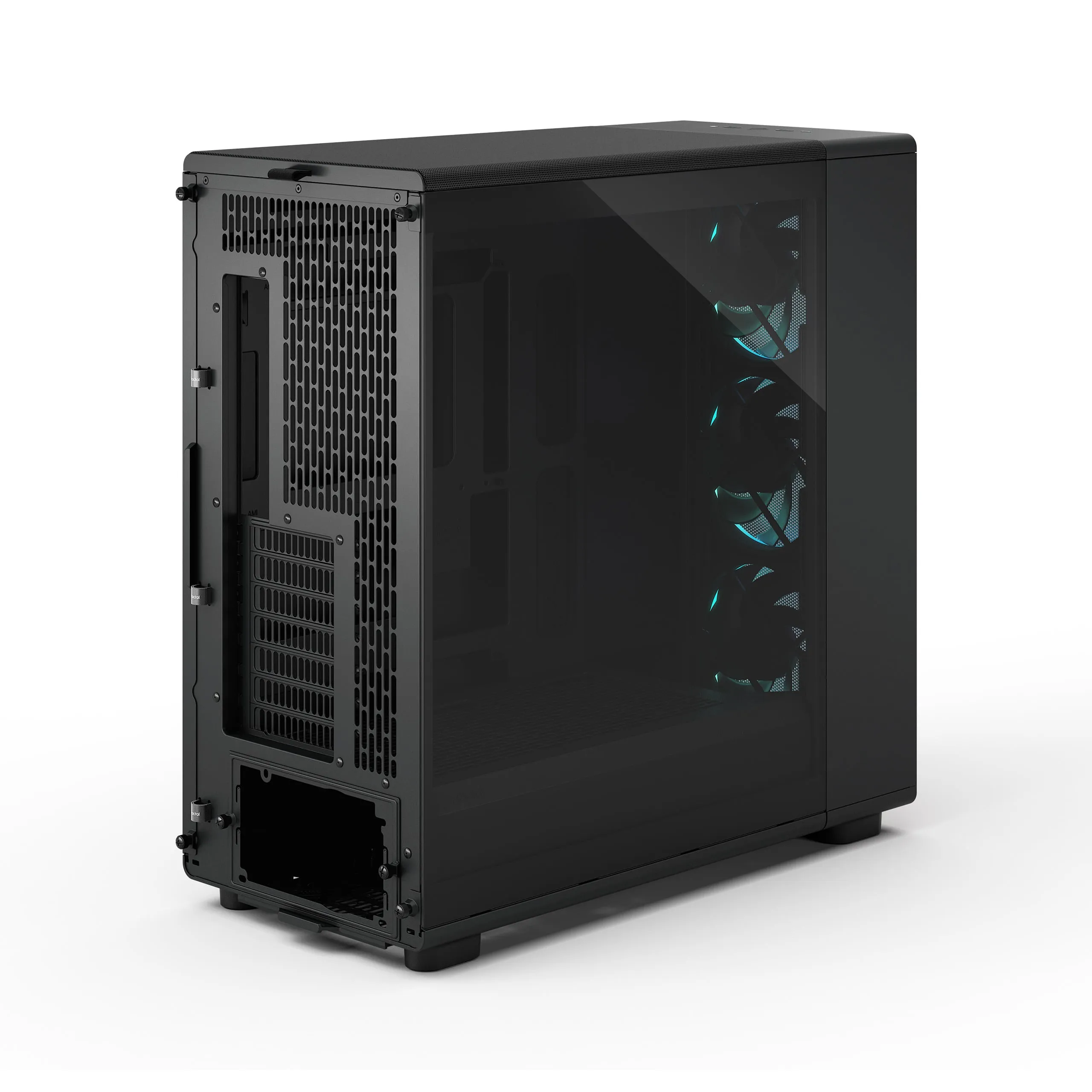

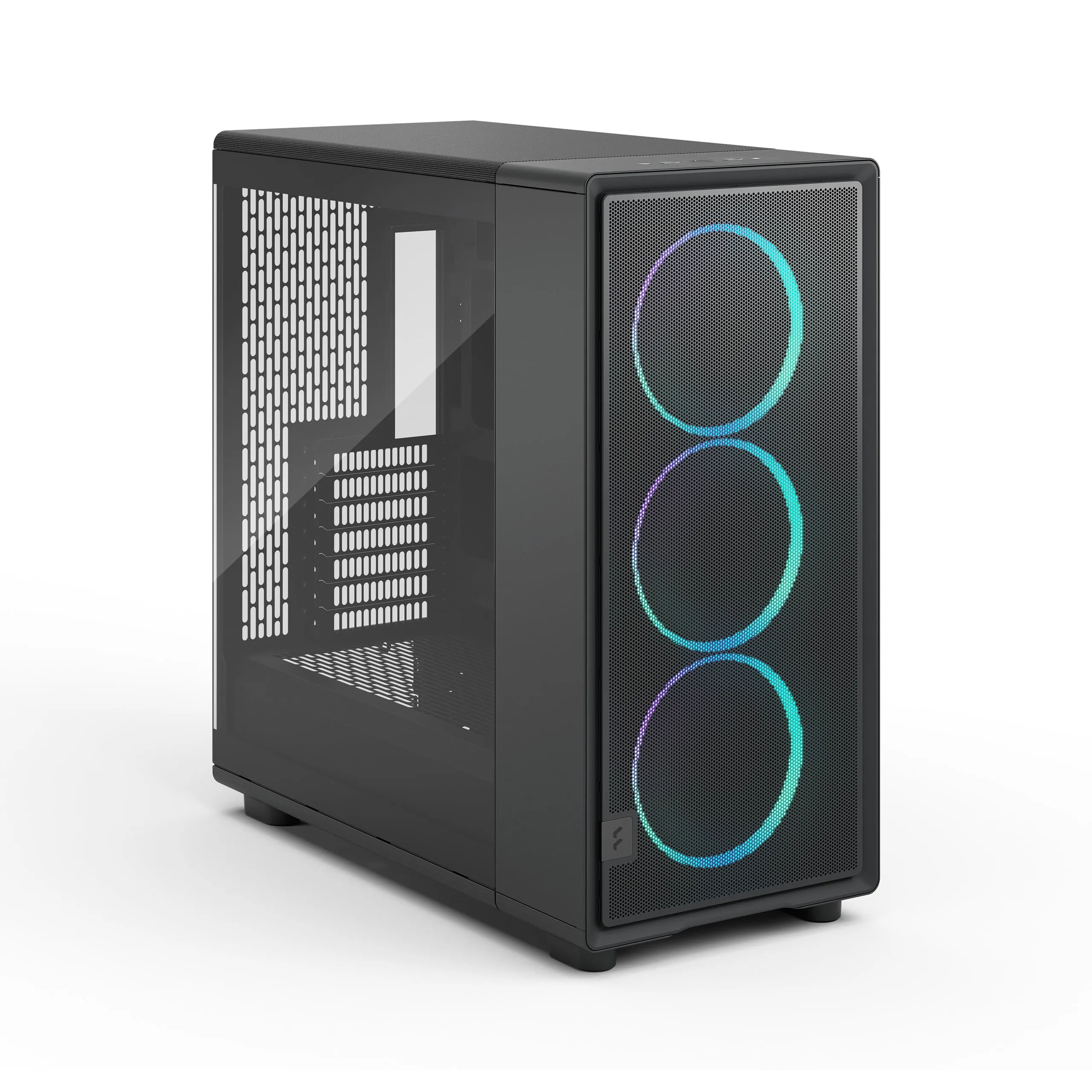

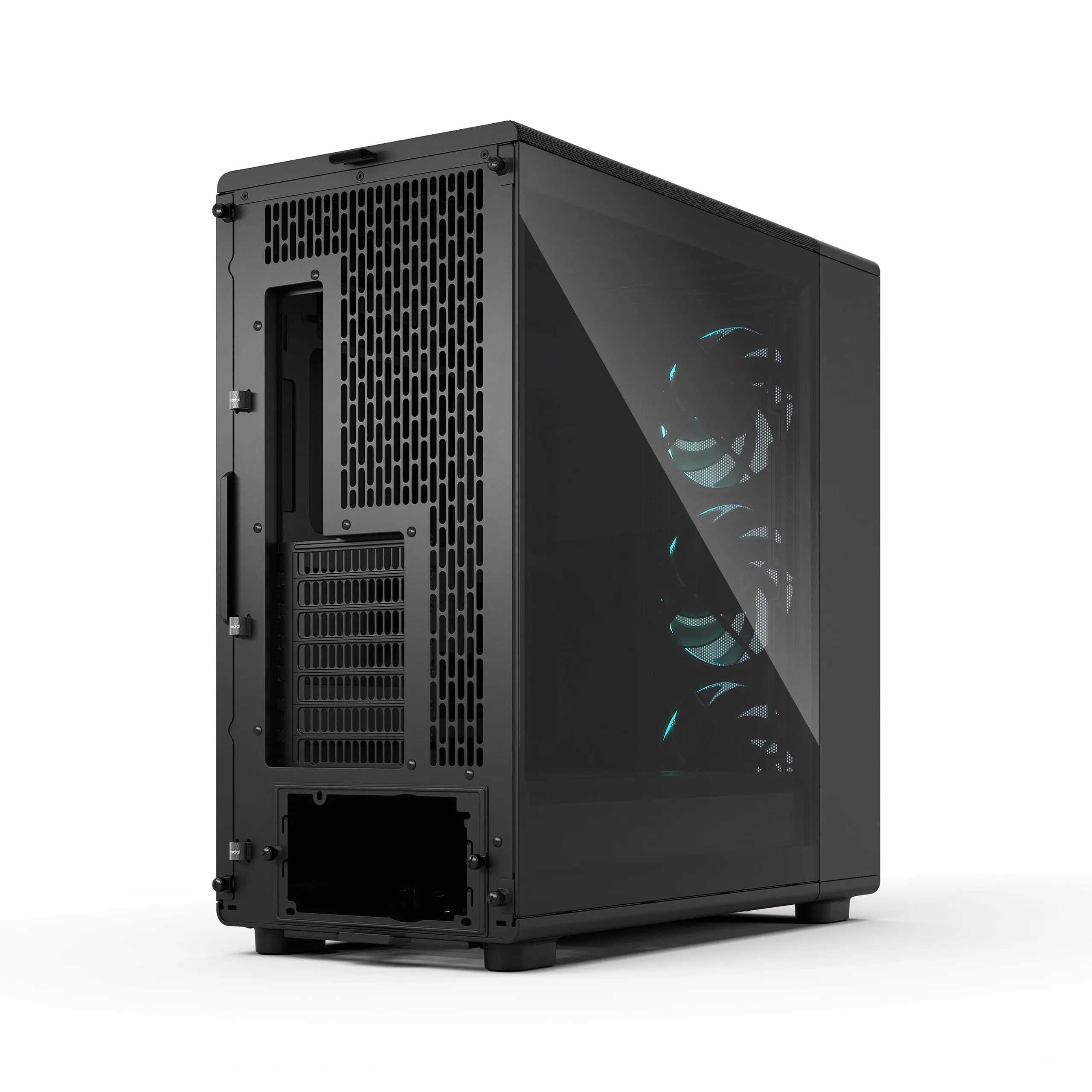

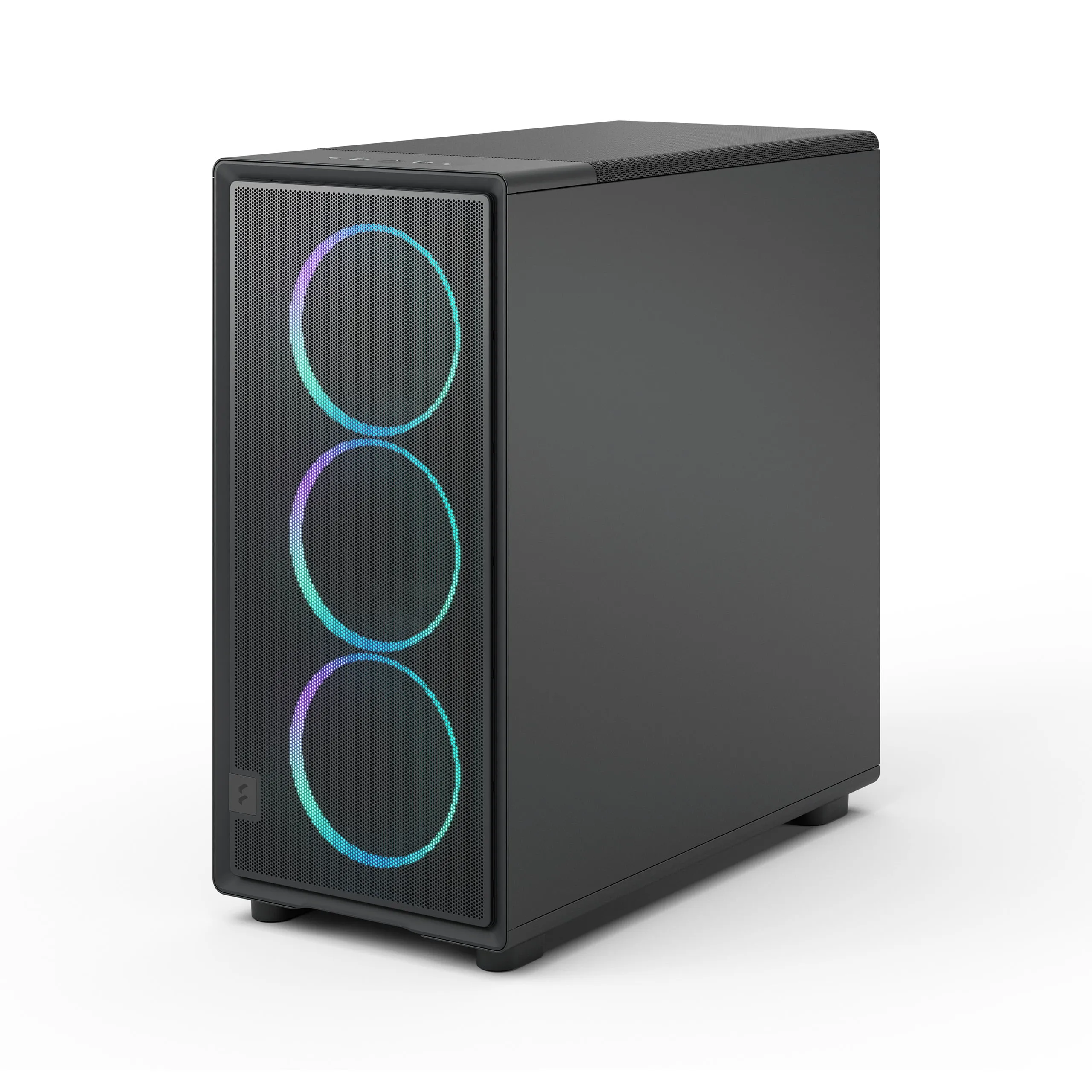

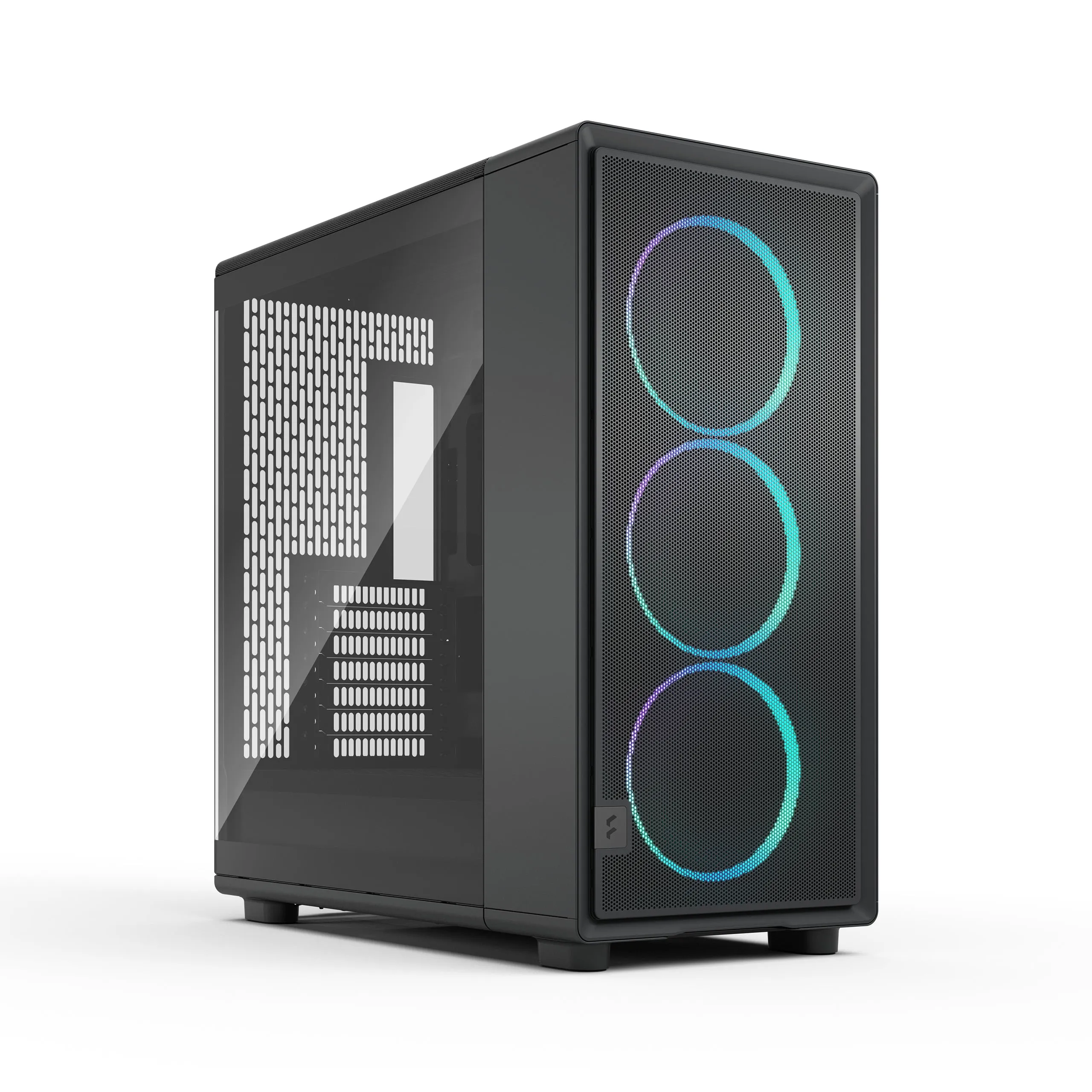

The Epoch XL Black TG RGB is a full-tower PC case constructed with a steel frame and tempered glass panels. It is designed to accommodate a wide range of motherboard form factors, from ITX up to E-ATX models (275 mm wide), providing a foundation for high-performance system builds. The chassis includes three pre-installed 140 mm RGB fans at the front and one 120 mm fan at the rear to establish an initial airflow configuration. Integrated RGB illumination offers customizable case lighting.

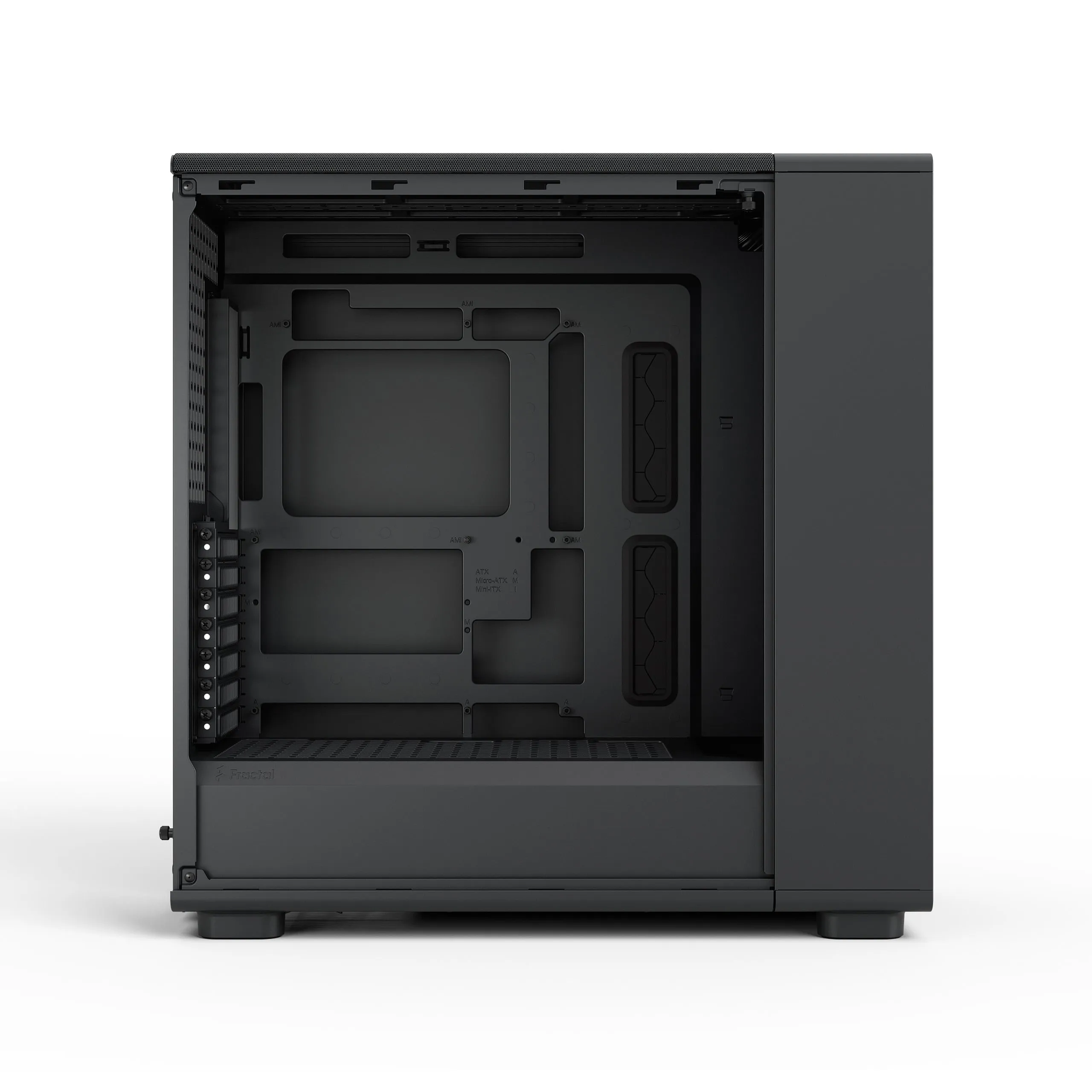

Internal space is sufficient for large components, with clearance for CPU coolers up to 176 mm in height and graphics cards up to 425 mm in length. The cooling system is versatile, supporting liquid cooling radiators up to 360 mm on both the front and top panels, and a 120 mm radiator at the rear. This flexibility allows for the installation of various all-in-one liquid coolers or the creation of custom cooling loops to manage thermal output effectively.

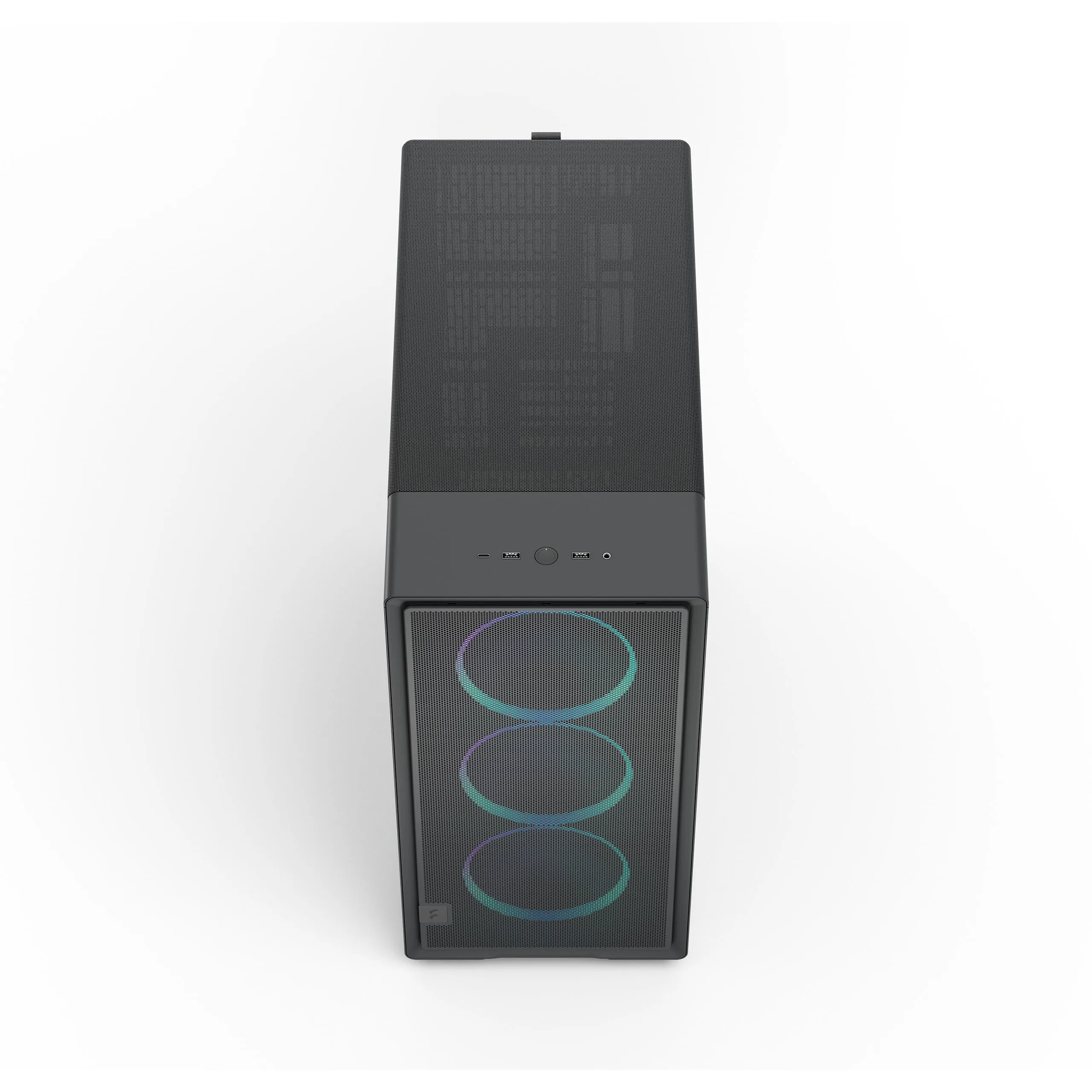

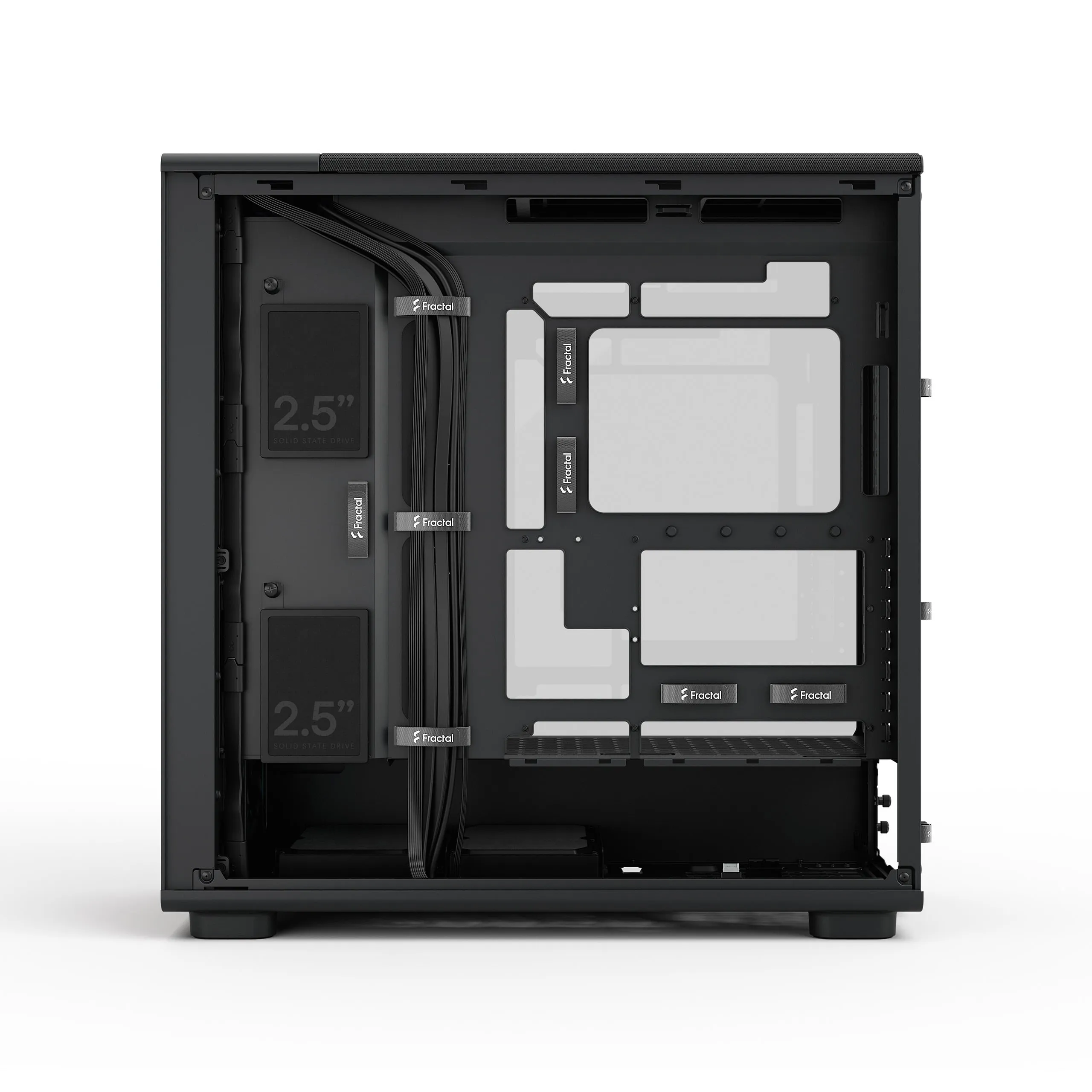

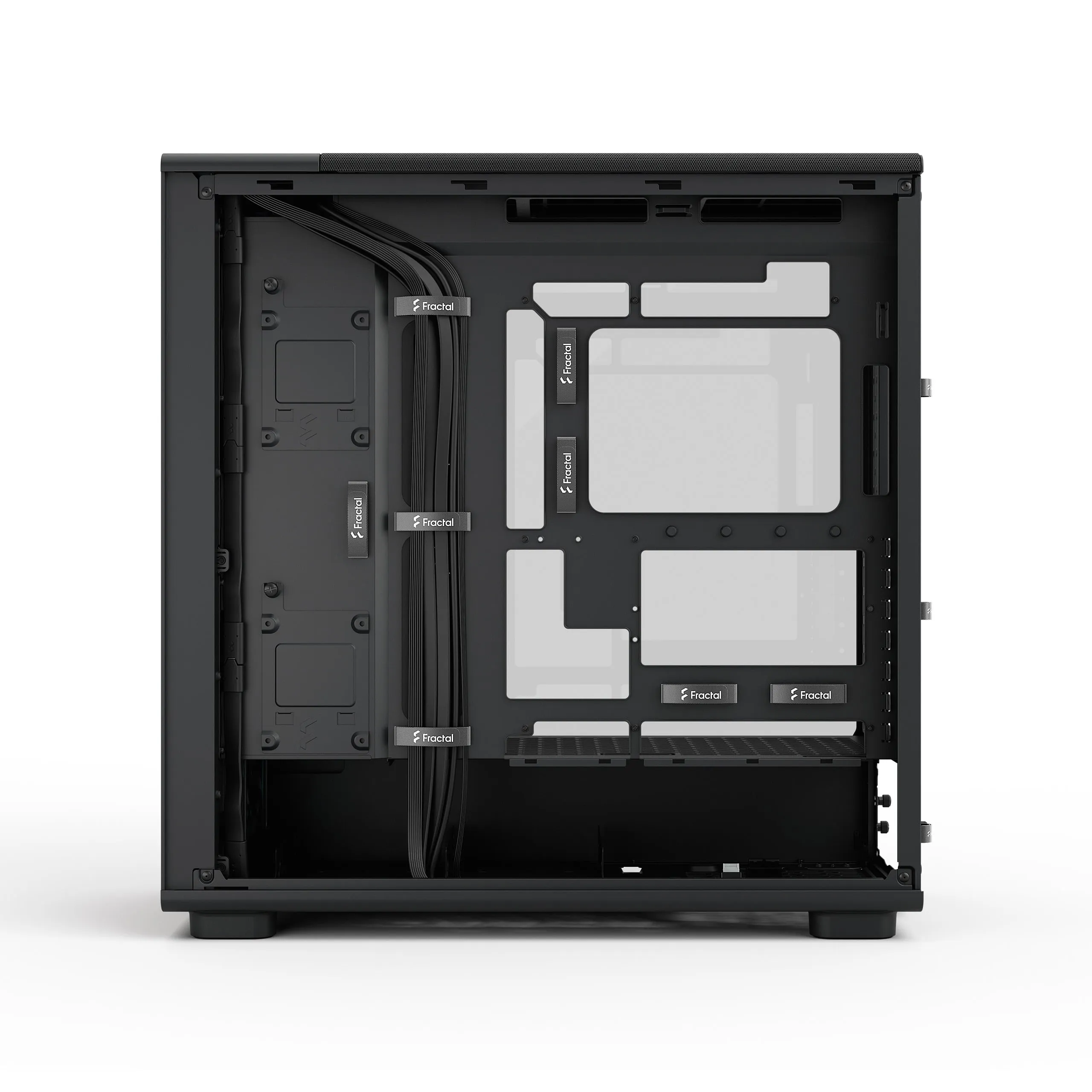

For system assembly and maintenance, the case includes features such as integrated cable management and dust filters. The front I/O panel is equipped with two USB 3.2 Gen 1 Type-A ports, one USB Type-C port, and a combination audio port for connecting peripherals. Storage options include a drive cage that supports both 3.5-inch and 2.5-inch drives, providing capacity for multiple storage devices.
Key Features:- Supports E-ATX, ATX, Micro-ATX, and ITX motherboards

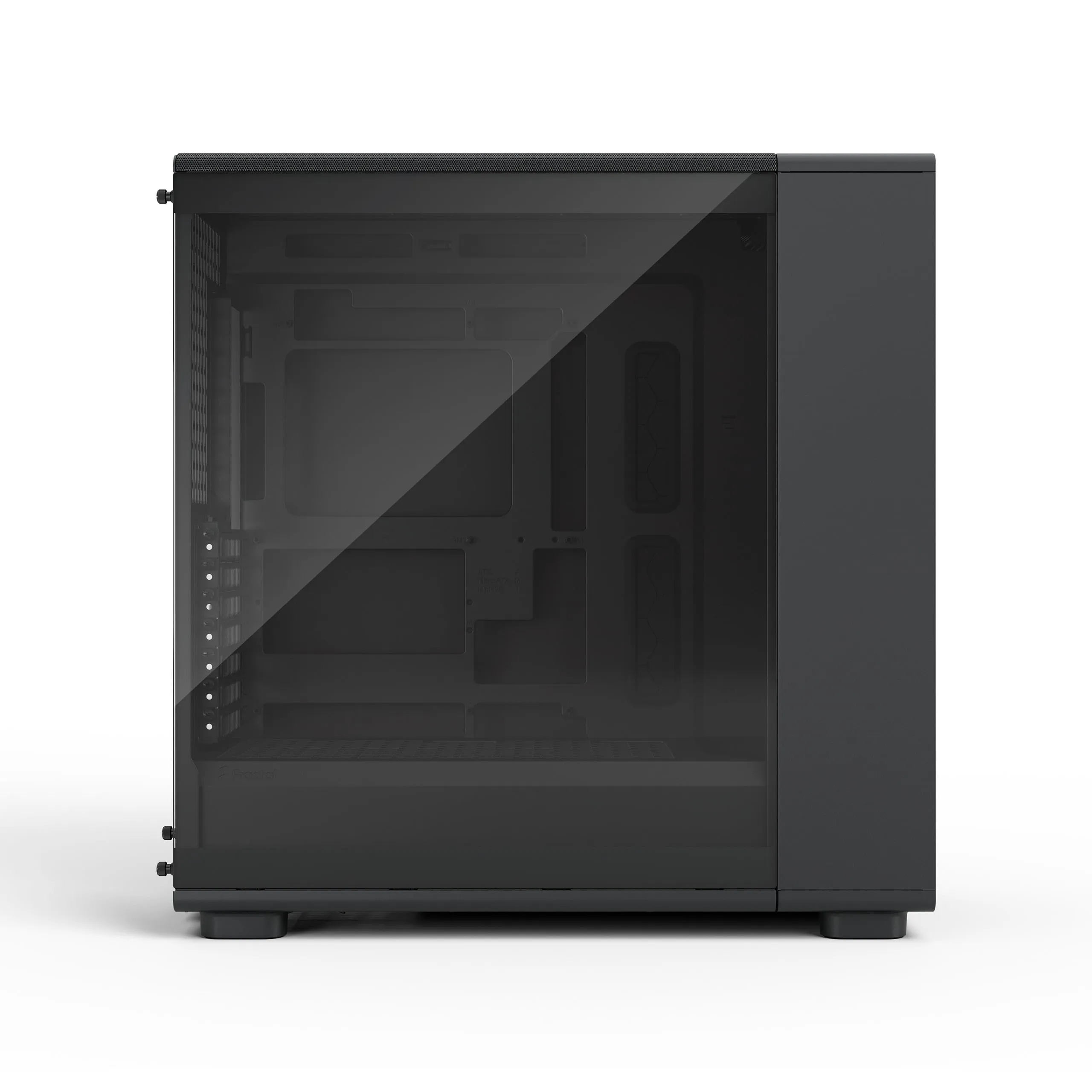

- Constructed with a steel chassis and tempered glass panels

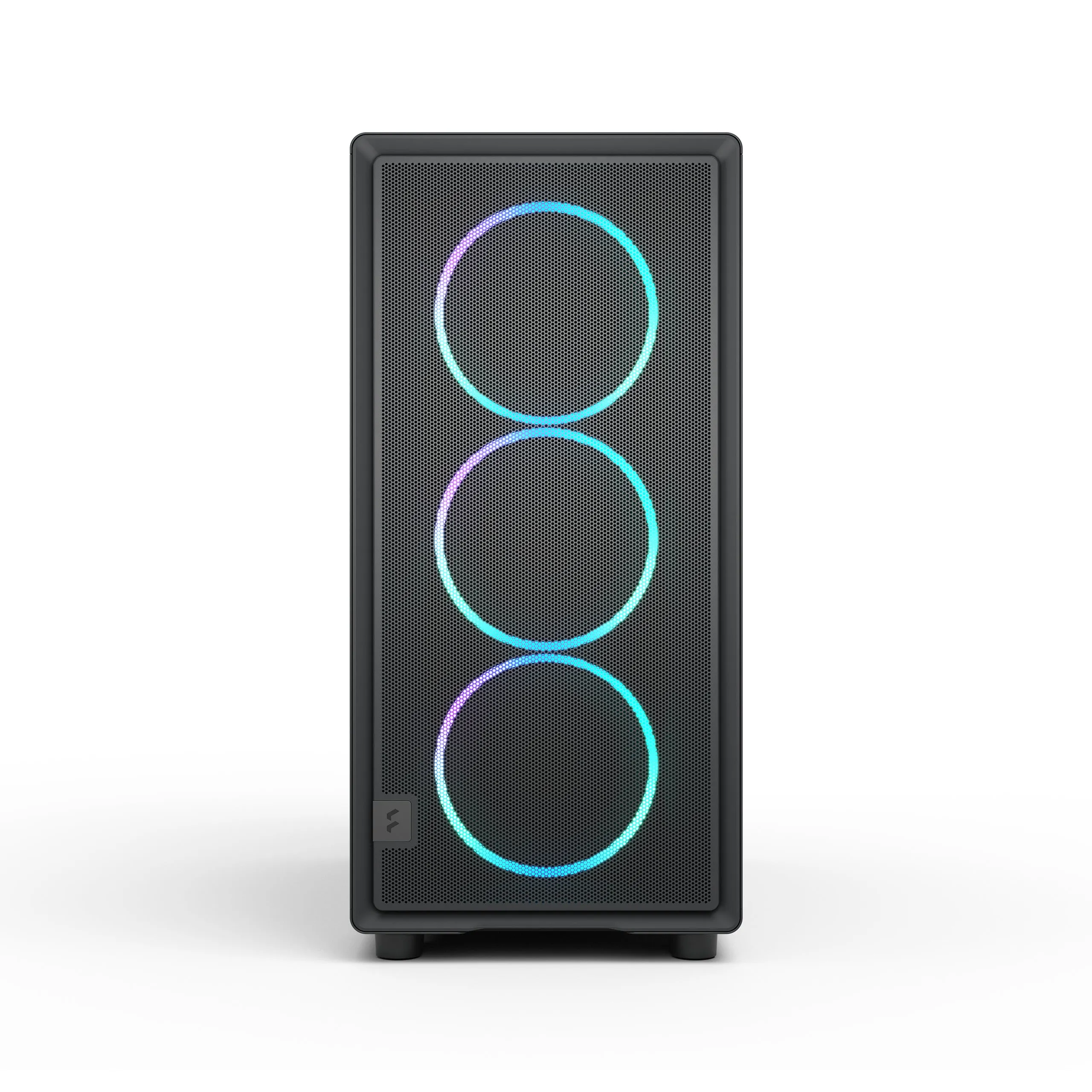

- Includes three 140 mm front RGB fans and one 120 mm rear fan
- Accommodates CPU coolers up to 176 mm and GPUs up to 425 mm
- Allows for front and top radiators up to 360 mm or 280 mm
- Features two 3.5-inch internal drive bays
- Provides 7 expansion slots for component installation
- Front I/O includes 2x USB-A 3.2 Gen 1 and 1x USB-C
- Compatible with standard ATX power supplies up to 290 mm
