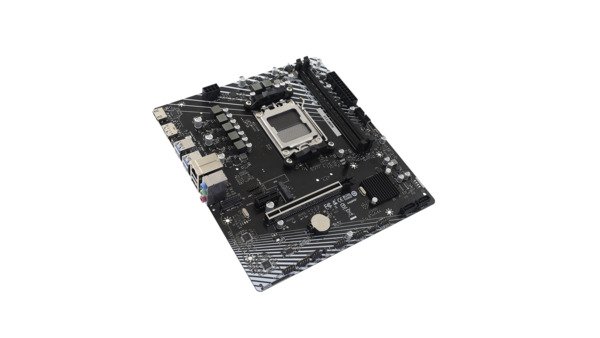

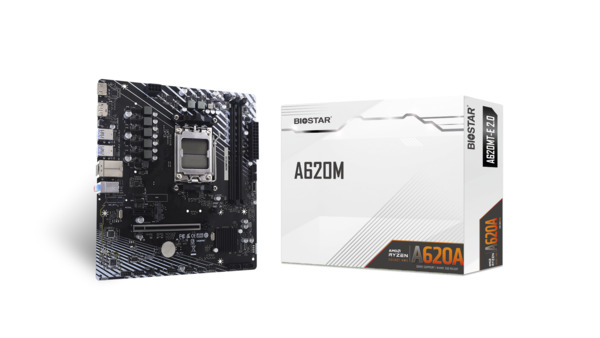

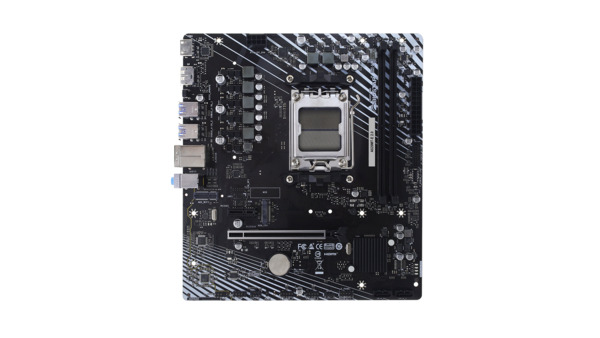

Biostar A620MT-E 2.0 AM5 mATX Motherboard

The Biostar A620MT-E 2.0 is a microATX motherboard built on the AMD A620 chipset for the AM5 socket. It is engineered to support contemporary AMD Ryzen desktop processors, providing a stable platform for home or office PC builds. The board's power delivery system utilizes an 8-pin EPS connector to supply adequate power for mainstream CPUs. Its compact form factor makes it suitable for smaller chassis while offering the core features required for general productivity and media consumption tasks.

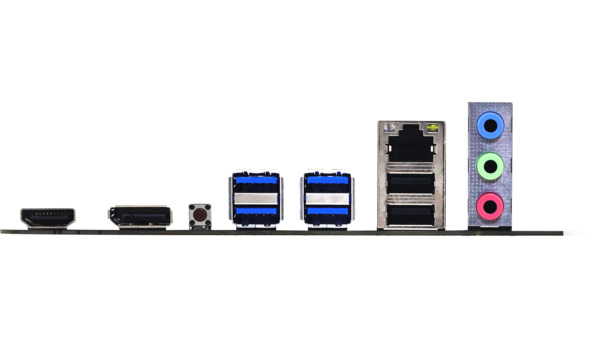

This motherboard includes two DIMM slots that support dual-channel DDR5 memory, with clock speeds up to 6000 MHz. For storage, it is equipped with one M.2 slot for NVMe drives and four SATA III ports, which support RAID 0, 1, and 10 configurations. Expansion is handled by a PCIe 4.0 x16 slot for a graphics card and an additional PCIe 3.0 x1 slot. The rear I/O panel provides HDMI and DisplayPort outputs, USB 3.2 Gen1 and Gen2 ports, and a Gigabit Ethernet port for wired networking.

• Supports AMD Ryzen processors for the AM5 socket
• Built with the AMD A620 chipset
• Features a compact microATX form factor
• Accommodates up to 128 GB of dual-channel DDR5 memory
• Includes one M.2 slot and four SATA III ports for storage
• Provides one PCIe 4.0 x16 slot for expansion
• Equipped with a Gigabit Ethernet port for network connectivity
• Offers both HDMI and DisplayPort video outputs
