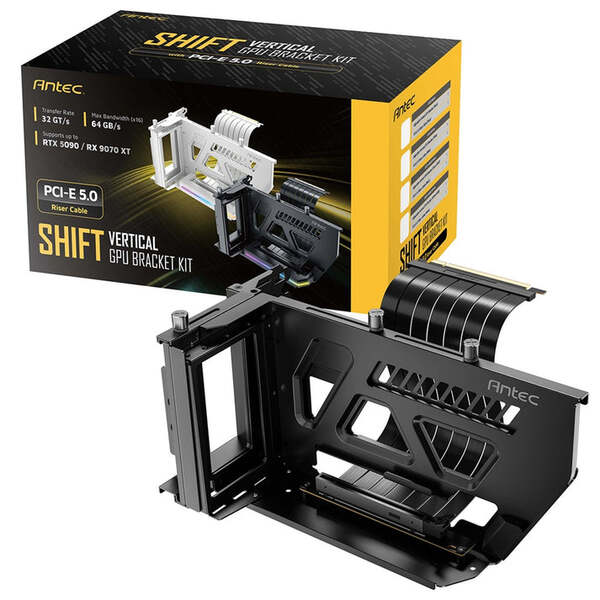

Antec AT-ARCVB-BK190-PCIE5 Shift Vertical GPU Kit, PCIe 5.0 x16, 190 mm

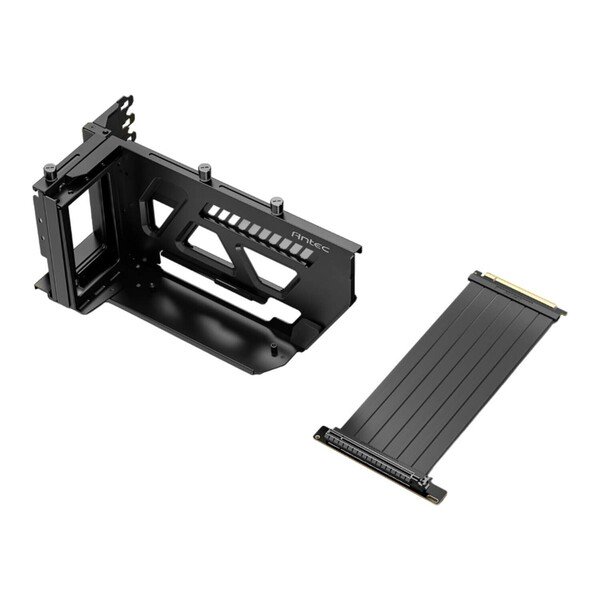

The Antec AT-ARCVB-BK190-PCIE5 is a vertical GPU mounting kit for desktop cases. It includes a 190 mm riser cable that facilitates a PCIe 5.0 x16 connection between the motherboard and the graphics card. Supporting the full bandwidth of the PCIe 5.0 standard, the assembly maintains signal integrity for high-performance cards. It rotates the GPU to face the side panel of the case rather than the motherboard. The kit is designed for E-ATX and standard ATX cases, with limited support for Micro-ATX layouts. This mounting style helps manage internal space and allows for different thermal configurations. The kit supports a single graphics card and ensures a secure connection during operation.

The bracket accommodates graphics cards up to three slots wide, fitting the larger cooling solutions found on modern hardware. Compatibility extends to GPUs between 284 mm and 337 mm in length. This black assembly features integrated ARGB lighting for custom visual effects within the PC. The 940 g frame provides a stable base for heavy cards, reducing stress on the motherboard’s primary PCIe slot. Installation requires sufficient clearance within the chassis to house the 145 mm wide and 133.1 mm tall bracket. The riser is rated at 5A, meeting standard PCIe power delivery requirements. The 190 mm cable length allows for flexible routing in mid-to-large tower cases.

• PCIe 5.0 x16 interface: supports high-speed data transfer for current and next-generation graphics hardware.
• 190 mm riser cable: provides the necessary length for routing connections in standard ATX builds.
• 3-slot GPU width support: enables mounting of wide graphics cards with triple-fan cooling systems.
• ARGB lighting: integrates addressable RGB effects for visual coordination with other system components.
• Chassis compatibility: designed to fit E-ATX, ATX, and some Micro-ATX desktop cases.
• Male-to-female PCIe connection: maintains a direct electrical link between the GPU and the motherboard.
• 940 g bracket weight: provides a robust support system to prevent GPU sag and hardware strain.
• Broad GPU length support: accommodates graphics cards ranging from 284 mm to 337 mm.
