Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 / 8000 / 9000 series |
| Processor socket | AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Maximum internal memory | 128 GB |
| Supported memory types | DDR5 |
| Memory channels | Dual-channel |
| Unbuffered memory |  |
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Supported memory clock speed (max) | 6000 MHz |
| ECC сompatibility | Non-ECC |
| Weight & dimensions | |
| Width | 221 mm |
| Depth | 235 mm |
| Networking | |
| Ethernet LAN | |
| LAN controller | Realtek RTL8125-BG |
| Wi-Fi |  |
| Ethernet interface type | 2.5 Gigabit |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| CPU fan connector | |
| Number of COM connectors | 1 |
| ATX Power connector (24-pin) | |
| Front panel audio connector | |
| TPM connector | |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Audio connector | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Back panel I/O ports | |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 3 |
| Microphone in | |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Storage controllers | |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Number of storage drives supported | 5 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCIe 4.0 M.2, SATA III |
| Packaging content | |
| Cables included | SATA |
| Drivers included | |
| Expansion slots | |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI |
| Clear CMOS jumper | |
| Graphics | |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | |
| Features | |
| Motherboard chipset | B650 |
| Motherboard form factor | Micro-ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| PC health monitoring | Temperature, Fan, CPU, Voltage |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD B650 |
| Component for | PC |
| Product type | Motherboard |
| Audio chip | Realtek ALC897 |
| EAN | 4712960687905 |

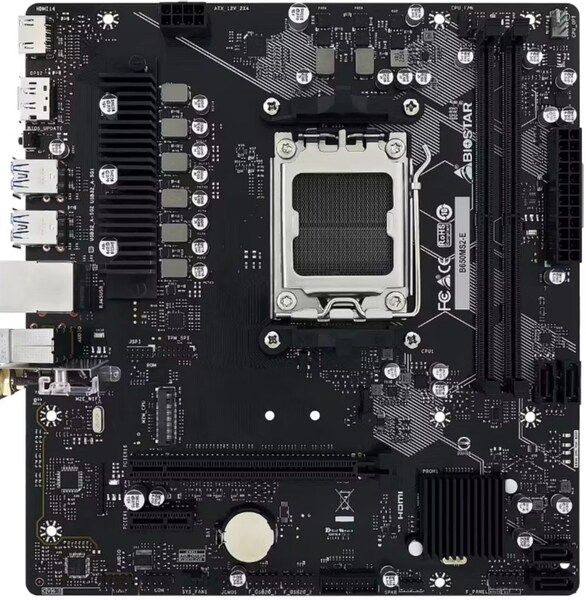

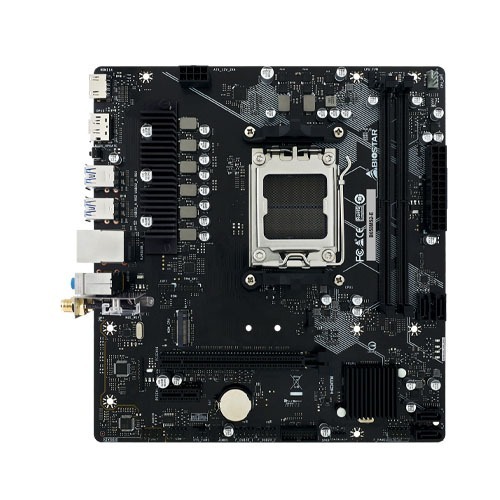

The BIOSTAR B650MS2-E motherboard supports AMD AM5 processors. Designed as a Micro-ATX board, it uses the AMD B650 chipset to suit compact system builds. It supports DDR5 memory, providing the bandwidth needed for demanding applications. For storage, it features PCIe 4.0 M.2 slots and SATA III ports, allowing for a mix of fast NVMe boot drives and high-capacity storage.
The board includes a 2.5 Gigabit Ethernet port for high-speed local network connectivity. This component packs essential features into a smaller form factor while retaining support for standard hardware. Using current NVMe technology helps eliminate data bottlenecks, ensuring solid-state drives perform efficiently under heavy workloads.
Key Features:- Compatible with AMD Ryzen 7000, 8000, and 9000 series processors.
- Supports up to 128 GB of RAM for multitasking and large file handling.
- Two DIMM slots for memory module installation.
- Dual-channel memory architecture for improved data bandwidth.
- Supports memory clock speeds up to 6000 MHz.
