Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Technical details | |
| Purpose | CPU cooling |
| Weight & dimensions | |
| Weight | 1.4 kg |
| Height | 156.5 mm |
| Width | 124 mm |
| Depth | 142.5 mm |
| Fan thickness | 2.5 cm |
| Heat pipes diameter | 6 mm |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Energy management | |
| Thermal Design Power (TDP) | 265 W |
| Packaging content | |
| Mounting kit | ![]() |
| CPU bracket(s) | ![]() |
| Other features | |
| Connector(s) | 4-pin PWM fan connector |
| Design | |
| Product colour | Black |
| Number of fans | 2 fan(s) |
| Base plate material | Copper |
| Fan connector | 4-pin PWM |
| Number of heat pipes | 6 |
| Illumination LED | ![]() |
| Performance | |
| Fan diameter | 12 cm |
| Suitable location | CPU |
| Maximum airflow | 78 cfm |
| Maximum air pressure | 2.7 mmH2O |
| Noise level (high speed) | 29 dB |
| Rotational speed (max) | 2200 RPM |
| Rotational speed (min) | 800 RPM |
| Pulse-width modulation (PWM) support | ![]() |
| Features | |
| Product type | CPU air cooler |
| EAN | 6930788486366 |

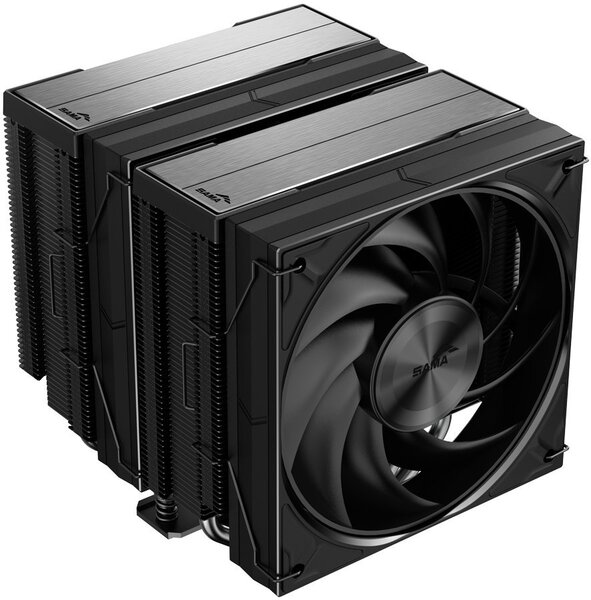

The SAMA A60 Black is a tower-style air cooler for desktop processors. It features a black fin stack topped with a brushed metal cover. Heat is transferred from the processor through a solid copper base plate, with six 6 mm heat pipes conducting it into an aluminum heatsink. The cooler is rated for a thermal design power (TDP) of up to 265 W, providing an air-cooled alternative to liquid systems for sustained workloads.
Two 120 mm hydro-bearing fans with airflow guide rings handle heat dissipation, reducing turbulence as they move air through the fins. Both fans connect to standard 4-pin PWM motherboard headers, allowing them to adjust their speed automatically between 800 and 2200 RPM based on system temperature. With no integrated lighting, the unit is suited for workstations and understated builds. The package includes all mounting hardware required to secure the 1400 g assembly.
Key Features:- Maximum airflow: 78 CFM.
- Static pressure: 2.7 mmH2O.
- Maximum noise level: 29 dB.
- Dimensions: 156.5 x 124 x 142.5 mm.
- Intel socket support: LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA1700, and LGA1851.
- AMD socket support: AM4 and AM5.
- Includes Freezee thermal paste.
