Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| Weight & dimensions | |
| Height | 448 mm |
| Width | 292 mm |
| Depth | 420 mm |
| Storage | |
| Number of HDDs supported | 1 |
| Supported HDD sizes | 2.5, 3.5 " |
| SSD form factor | 2.5" |
| Packaging data | |
| LED controller | ![]() |
| Cooling | |
| Cooling | ![]() |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Rear fans diameters supported | 120 mm |
| Top fans diameters supported | 120 mm |
| Bottom fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Number of bottom fans supported (max) | 3 |
| Liquid cooling capability | ![]() |
| Rear radiator sizes supported | 120 mm |
| Front radiator sizes supported | 360 mm |
| Rear radiator installed | ![]() |
| Front radiator installed | ![]() |
| Top radiator installed | ![]() |
| Top radiator sizes supported | 360 mm |
| Fan speed control | ![]() |
| Other features | |
| Expansion slots | 7 |
| Volume | 55 L |
| Design | |
| Rack mounting | ![]() |
| Form factor | Mid Tower |
| Material | Steel, Tempered glass |
| Product colour | Black |
| Illumination | ![]() |
| Cable management | ![]() |
| Reset button | ![]() |
| Supported motherboard form factors | ATX, Micro-ATX, Mini-ITX |
| Cooling type | Air/Liquid |
| Anti-dust filter | ![]() |
| Number of 3.5" bays | 1 |
| Illumination colour | RGB |
| Side window | ![]() |
| Number of internal 3.5" bays | 1 |
| Maximum CPU cooler height | 16.5 cm |
| Number of expansion slots | 7 |
| Maximum PSU length | 20 cm |
| Product type | PC Case |
| On/off button | ![]() |
| Tempered glass panel(s) | ![]() |
| Power supply | |
| Number of power supply units | 1 |
| Power supply location | Bottom |
| Power supply included | ![]() |
| Supported power supply form factors | ATX |
| EAN | 5056547209357 |

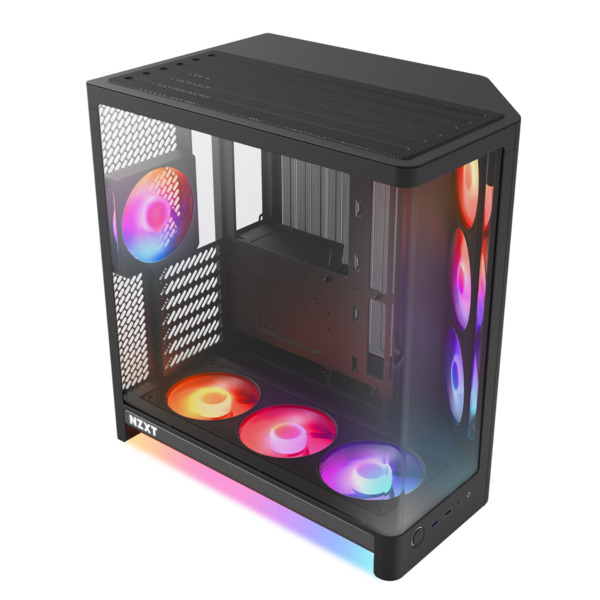

The NZXT H6 RGB+ Compact Dual-Chamber ATX Mid-Tower Case separates core components from the power supply, directing airflow where it is needed most. A dedicated lower chamber hides cable routing, leaving an unobstructed view of the main hardware through a curved tempered-glass front panel. The steel chassis accommodates ATX, Micro-ATX, and Mini-ITX motherboards and supports both air and liquid cooling configurations. Ten 120 mm fan mounts provide ventilation, with intake through the front and exhaust at the top and rear. Dust filters are fitted throughout the frame to keep the interior clean.
A built-in controller synchronises internal RGB illumination and fan speeds directly, allowing for adjustments to noise and airflow without the need for third-party hubs. The chassis provides seven expansion slots for graphics cards and additional PCIe devices. A bottom-mounted ATX power supply stabilises the enclosure, while dedicated channels keep cables tidy. With an internal volume of 55 litres, the case occupies less desk space than a standard full tower while accommodating modern, oversized components.
Key Features:- Hardware clearances: Supports CPU coolers up to 165 mm tall and standard ATX power supplies up to 200 mm long.
- Liquid cooling: Fits up to a 360 mm radiator on the front or top panels, and a 120 mm unit at the rear.
- Front panel connectivity: Includes two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port, and a combo headset jack.
- Included fans: Features three 120 mm F360 RGB Reverse intake fans and one 120 mm F120 RGB exhaust fan, operating between 2200 and 2400 RPM.
- Drive support: Houses one 3.5-inch hard drive and accommodates 2.5-inch solid-state drives.
- Dimensions: Measures 292 × 448 × 420 mm (Width × Height × Depth) with an unpopulated weight of 9.3 kg.
