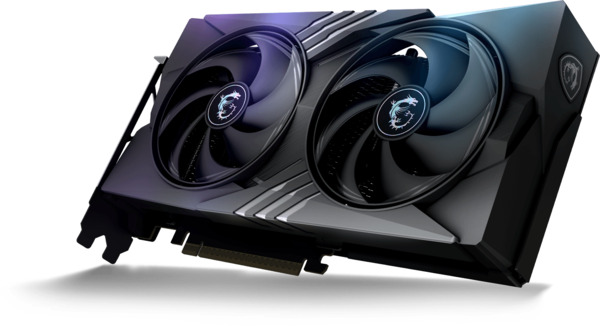

MSI GeForce RTX 5060 GAMING V1 OC 8GB Graphics Card

The MSI GeForce RTX 5060 8GB GAMING OC V1 is a desktop graphics card for gaming and GPU-accelerated tasks. It belongs to the NVIDIA GeForce RTX 50 series and uses 8 GB of GDDR7 memory. A 128-bit memory interface connects to the GPU, which has 3840 CUDA cores. The card uses a PCI Express Gen 5 x16 interface but is wired for x8 operation. Factory overclocking raises the clock limits above the reference design. Dedicated memory holds textures and assets used by modern rendering engines.

The base clock is 2587 MHz and the boost clock is 2602 MHz. Typical power consumption is 150 W, and a 550 W power supply is the recommended minimum. Maximum digital resolution is 7680 x 4320 pixels. The card weighs 653 g and measures 135 mm in height, fitting standard mid-range desktop cases. DisplayPort and HDMI outputs sit on the rear bracket.

• Three DisplayPort 2.1b ports and one HDMI 2.1b port: provide connectivity for high-resolution displays
• Four simultaneous displays: allow for expanded multi-monitor workstation or gaming setups
• DirectX 12 Ultimate and OpenGL 4.6 support: ensures compatibility with modern gaming APIs and creative software
• NVIDIA G-SYNC technology: enables refresh-rate synchronisation with compatible monitors
• 248 mm length and 41 mm width: define the physical footprint for chassis clearance and installation
• Single 8-pin power connector: supplies supplementary power for stable operation
