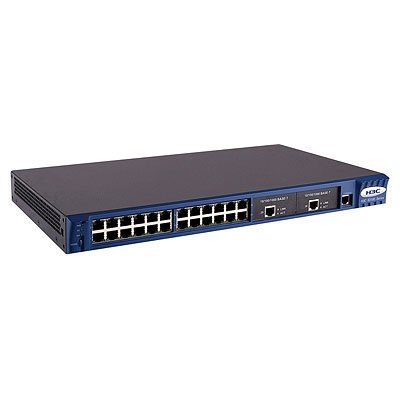

HPE A3100-24 SI SWITCH

Valmistaja: HEWLETT-PACKARD
ID: JD306A#ABB
Tuote ei ole saatavilla
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.

Tärkeimmät tekniset tiedot

Valitse yksi tai useampi ominaisuus etsiäksesi tuotteita, joilla on samat tekniset tiedot.
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Liitettävyys
Gigabit Ethernet -portteja2
Console-porttiRJ-45
Fast Ethernet (kupari) porttien määrä24
Basic kytkentä RJ-45 Ethernet-porttien määrä26
Paino ja mitat
Paino3 kg
Tuotteen korkeus43 mm
Tuotteen leveys436 mm
Tuotteen syvyys241 mm
Virranhallinta
Virrankulutus20 W
Energy Star -sertifioitucross
AC-syöttötaajuus50 - 60 Hz
AC-syöttöjännite100-240
Ympäristöolosuhteet
Suhteellinen kosteusalue10 - 90%
Varastointilämpötila-40 - 70 °C
Käyttölämpötila (T-T)0 - 45 °C
Säilytysympäristön kosteus5 - 95%
Protokollat
HallintaprotokollaSNMPv3
Verkko
Täysin kaksipuolinencheckmark
VerkkostandarditIEEE 802.1D,IEEE 802.1p,IEEE 802.1Q,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Virranhallinnan tukicheckmark
Linkkien yhdistäminencheckmark
STP-Protokollacheckmark
10G-tukicross
Datasiirto
Tuettu tiedonsiirtonopeus10/100 Mbps
Kytkentäkapasiteetti8,8 Gbit/s
Suurin tiedonsiirtonopeus0,1 Gbit/s
Suojaus
Tietoturva-algoritmit802.1x RADIUS,SSH-2
MAC-osoitteensuodatuscheckmark
Hallintaominaisuudet
MIB-tukiCLI, GUI
KytkinkerrosL2
Verkkosivupohjainen hallintacheckmark
Kytkin tyyppiUnmanaged network switch
Muut ominaisuudet
Viive6 us
Ethernet LANcheckmark
YhteysteknologiaLangallinen
Virran merkkivalocheckmark
Ethernet LAN -datanopeudet10,100 Mbit/s
Ethernet-liitännän tyyppiNopea Ethernet
Suunnittelu
Telineasennuscheckmark
TurvallisuusUL, IEC, EN, CAN/CSA, CFR, ROHS
Sähkömagneettinen yhteensopivuusFCC, ICE, VCCI, EN, CISPR, ANSI, EMC
Kotelo1U
Tuotteen väriMusta
Power over Ethernet (PoE)
Power over Ethernet -tukicross
Suorituskyky
Sisäinen muisti128 MB
Flash-muisti16 MB
MuistityyppiSDRAM
Laitteen puskurimuistiin0,384 MB
EAN
Takuu1 vuosi
Source: Icecat.biz

Overview
The HP A3100 SI Switch Series is a low-cost Fast Ethernet switch line that enables organizations to do more with less. Stackable and affordable, this series comprises intelligent, network-manageable Layer 2 Fast Ethernet switches that offer high performance, high port density, and easy installation. They provide 10/100 Mbps downlinks and Gigabit Ethernet uplinks, and offer link aggregation that expands bandwidth and enhances connection reliability. In enterprise networks, they can serve as access devices for 100 Mbps-to-desktop applications. In metropolitan area networks (MANs) or industry networks, they can connect end users or aggregate low-end switches through 100 Mbps electrical interfaces in the downlink direction, converging at an IP switching center or a large capacity Layer 3 switch in the uplink direction via a GbE interface or link aggregation.

Features
Quality of Service (QoS)

• Powerful QoS feature: supports the following congestion actions: weighted round robin queuing and HQ+WRR


Management

• Friendly port names: allow assignment of descriptive names to ports


Connectivity

• Auto-MDIX: automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports


Performance

• Gigabit Ethernet interface: provides a connection to the network that eliminates the network as a bottleneck


Resiliency and high availability

• Separate data and control paths: increases security and performance


Layer 2 switching

• 8K MAC addresses: provide access to many Layer 2 devices


Security

• IEEE 802.1X: industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server
