Techconnect 3:1 HDMI Switcher
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Liitettävyys | |
Videoportin tyyppi | HDMI |
RS-232-portit | 1 |
HDMI-porttien lukumäärä | 4 |
HDMI-versio | 2.0 |
HDMI in | 1 |
HDMI-lähtöjen lukumäärä | 3 |
Paino ja mitat | |
Paino | 230 g |
Tuotteen korkeus | 20 mm |
Tuotteen leveys | 50 mm |
Pituus | 0,16 m |
Leveys | 5,08 cm (2") |
Korkeus | 2,03 cm (0.8") |
Virranhallinta | |
Virtalähteen syöttöjännite | 100 - 240 V |
Virtalähteen taajuus | 50/60 Hz |
Virtalähteen tuottojännite | 5 V |
Virtalähteen tuottovirta | 1 A |
Ympäristöolosuhteet | |
Suhteellinen kosteusalue | 10 - 90% |
Käyttölämpötila (T-T) | 0 - 60 °C |
Pakkaustiedot | |
Pakkauksen paino | 0,74 kg |
Pakkauksen korkeus | 80 mm |
Pakkauksen leveys | 150 mm |
Sertifikaatit | |
Sertifiointi | PSU COMPLIANCE: WEEE, CB Certification, BIS CRS, BSMI, CCC, CE/EMC, cUL, EAC, FCC, KCC, Kvalitet, PSE, RCM, SAA, C-TICK, SDoC, S-Mark, UkrTEST SWITCHER COMPLIANCE: WEEE, CE/EMC, BSMI, CB Certification, C-TICK , EAC, FCC, IEC, KCC |
Pakkauksen sisältö | |
Virtalähde mukana | |
Kaukosäädin | |
Sisältää johdot | Sarja |
Lukumäärä per pakkaus | 1 kpl |
Ominaisuudet | |
Resoluutio | 3840 x 2160 pikseliä |
Plug & Play -yhteensopiva | |
Materiaali | Metalli |
Värin syvyys | 12 bittiä |
Enimmäiserottelutarkkuus | 3840 x 2160 pikseliä |
Tuotteen väri | Valkoinen |
Portin enimmäiskaistanleveys | 18 Gbit/s |
Tuetut grafiikan erottelutarkkuudet | 3840 x 2160 |
Tuetut videomoodit | 2160p |
Kaistanleveys | 600 MHz |
HDCP | |
Suurin päivitystaajuus | 60 Hz |
3D | |
HD-tyyppi | 4K Ultra HD |
EAN | 4053413000002 |
Takuu | 2 vuotta |
Source: Icecat.biz |
Vision’s professional-grade HDMI switcher connects to up to three sources and switches between them with ease. Ideal for corporate installations where fast switching and reliable HDCP management is important.
Fast Switching

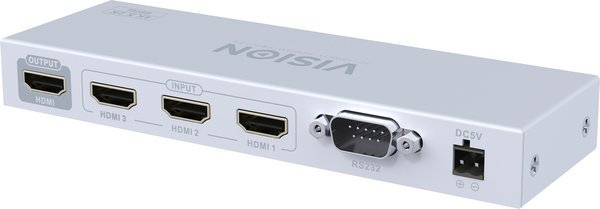

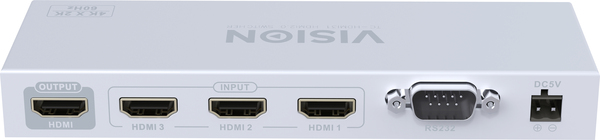

tc-hdmi31-rearAutomatic EDID (extended display identification data) management and fast switching.
3D Support
Supporting resolutions of up to 4K2K@60Hz, this switcher easily supports 3D.
High Bandwidth
The TC-HDMI31 has a bandwidth of up to 18Gbps – three times faster than our previous model!
Plug and Play
This product uses the latest switching chipset to ensure it has excellent compatibility with a wide range of source devices.

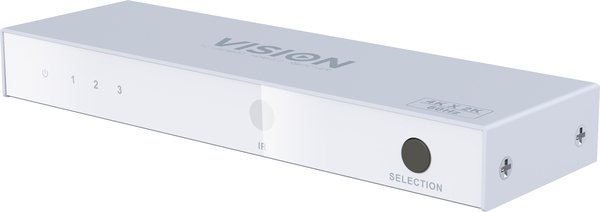

Remote Control
An IR remote control is included which has direct select buttons, or toggle up and down buttons, along with discreet on and off buttons.
RS-232 Control
The HDMI switcher can be controlled by a control system via RS-232.
Stable Performance
A metal heat sink keeps the circuit cool to ensure stable performance.
