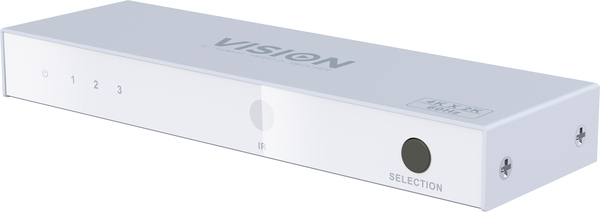

Techconnect 3:1 HDMI Switcher
This product is end of life or currently not available.
Ports & interfaces | |
Video port type | HDMI |
RS-232 ports | 1 |
HDMI ports quantity | 4 |
HDMI version | 2.0 |
HDMI in | 1 |
Number of HDMI outputs | 3 |
Weight & dimensions | |
Weight | 230 g |
Height | 20 mm |
Width | 50 mm |
Length | 0.16 m |
Width (imperial) | 5.08 cm (2") |
Height (imperial) | 2.03 cm (0.8") |
Energy management | |
AC adapter input voltage | 100 - 240 V |
AC adapter frequency | 50/60 Hz |
AC adapter output voltage | 5 V |
AC adapter output current | 1 A |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Operating temperature (T-T) | 0 - 60 °C |
Packaging data | |
Package weight | 0.74 kg |
Package height | 80 mm |
Package width | 150 mm |
Certificates | |
Certification | PSU COMPLIANCE: WEEE, CB Certification, BIS CRS, BSMI, CCC, CE/EMC, cUL, EAC, FCC, KCC, Kvalitet, PSE, RCM, SAA, C-TICK, SDoC, S-Mark, UkrTEST SWITCHER COMPLIANCE: WEEE, CE/EMC, BSMI, CB Certification, C-TICK , EAC, FCC, IEC, KCC |
Packaging content | |

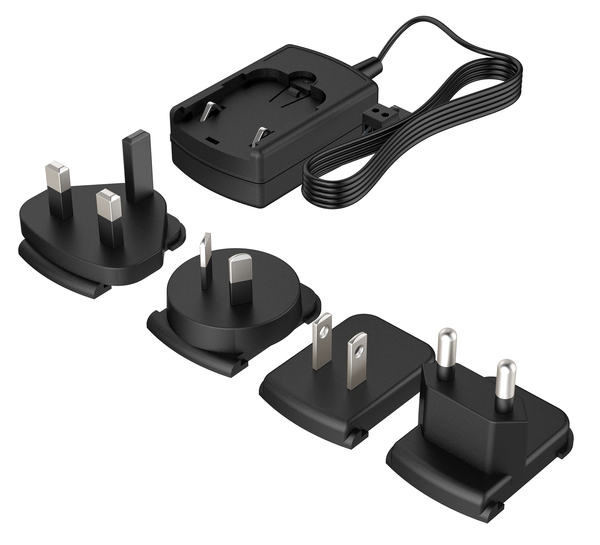

AC adapter included | |
Remote control included | |
Cables included | Serial |
Quantity per pack | 1 pc(s) |
Features | |
Resolution | 3840 x 2160 pixels |
Plug and Play | |
Material | Metal |
Colour depth | 12 bit |
Maximum resolution | 3840 x 2160 pixels |
Product colour | White |
Bandwidth | 600 MHz |
Supported graphics resolutions | 3840 x 2160 |
Supported video modes | 2160p |
HDCP | |
Maximum refresh rate | 60 Hz |
3D | |
HD type | 4K Ultra HD |
EAN | 4053413000002 |
Warranty | 2 years |
Source: Icecat.biz |
Vision’s professional-grade HDMI switcher connects to up to three sources and switches between them with ease. Ideal for corporate installations where fast switching and reliable HDCP management is important.
Fast Switching

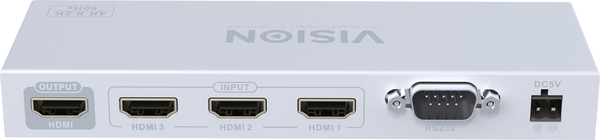

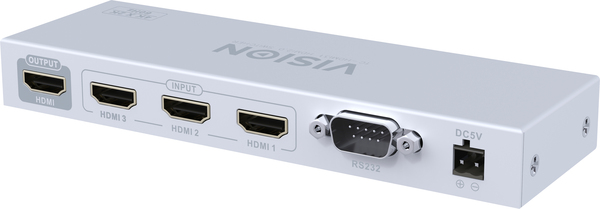

tc-hdmi31-rearAutomatic EDID (extended display identification data) management and fast switching.
3D Support
Supporting resolutions of up to 4K2K@60Hz, this switcher easily supports 3D.
High Bandwidth
The TC-HDMI31 has a bandwidth of up to 18Gbps – three times faster than our previous model!
Plug and Play
This product uses the latest switching chipset to ensure it has excellent compatibility with a wide range of source devices.
Remote Control
An IR remote control is included which has direct select buttons, or toggle up and down buttons, along with discreet on and off buttons.
RS-232 Control
The HDMI switcher can be controlled by a control system via RS-232.
Stable Performance
A metal heat sink keeps the circuit cool to ensure stable performance.
