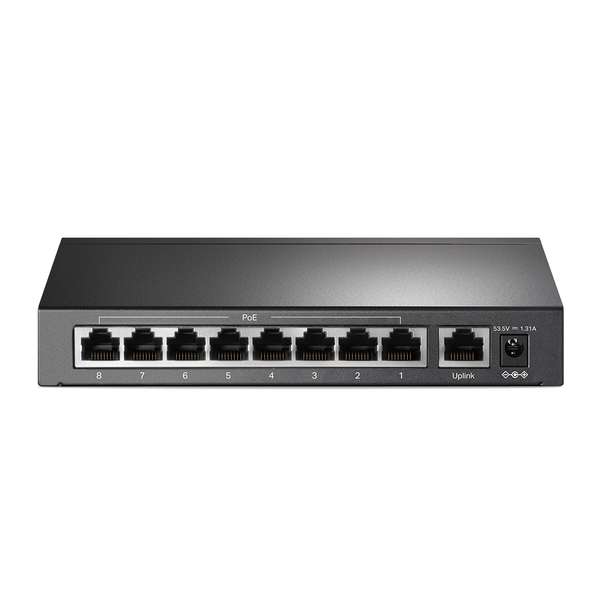

TP-LINK TL-SF1009P 9-Port 10/100 Mbps Steel Desktop Switch with 8-Port PoE+ 67W PoE budget
Tärkeimmät tekniset tiedot
Valitse yksi tai useampi ominaisuus etsiäksesi tuotteita, joilla on samat tekniset tiedot.Liitettävyys | |
Fast Ethernet (kupari) porttien määrä | 9 |
Asennettujen SFP+ moduulien määrä | 0 |
Asennettujen SFP moduulien määrä | 0 |
Peruskytkentä RJ-45 Ethernet-porttien tyyppi | Fast Ethernet (10/100) |
Basic kytkentä RJ-45 Ethernet-porttien määrä | 9 |
Virtaliitin | DC-tulo jakkiliitin |
Paino ja mitat | |
Tuotteen korkeus | 27 mm |
Tuotteen leveys | 171 mm |
Tuotteen syvyys | 98 mm |
Virranhallinta | |
Voimanlähde | DC/PoE |
Syöttöjännite | 1.31 A |
AC-syöttötaajuus | 50 Hz |
AC-syöttöjännite | 220 V |
DC-syöttöjännite | 53.5 V |
Tehonkulutus (maks.) | 77,08 W |
Virtalähde mukana | ![]() |
Ympäristöolosuhteet | |
Käytön suhteellinen kosteus (H-H) | 10 - 90% |
Varastointilämpötila | -40 - 70 °C |
Käyttölämpötila (T-T) | 0 - 40 °C |
Säilytysympäristön kosteus | 5 - 90% |
Lämmön poisohjaus | 262,84 BTU/h |
Verkko | |
Täysin kaksipuolinen | ![]() |
Verkkostandardit | IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
Virranhallinnan tuki | ![]() |
Auto MDI/MDI-X | ![]() |
10G-tuki | ![]() |
Ethernet kaapelointiteknologia | 10BASE-T, 100BASE-TX |
Tuetut kaapelityypit | Cat3, Cat4, Cat5, Cat5e |
Auto-negotiaatio | ![]() |
MAC-osoitteen automattisen oppimisen tuki | ![]() |
Mac-osoitteen automaattisen vanhentumisen tuki | ![]() |
Puolidupleksi | ![]() |
Datasiirto | |
MAC-osoitetaulukko | 2000 entries |
Kytkentäkapasiteetti | 1,6 Gbit/s |
Tallenna ja lähetä edelleen | ![]() |
Forwarding rate | 1,3392 Mpps |
Pakkaustiedot | |
Pakkauksen paino | 980 g |
Virtalähde mukana | ![]() |
Pakkauksen syvyys | 280 mm |
Pakkauksen korkeus | 68 mm |
Pakkauksen leveys | 223 mm |
Pakkaustyyppi | Laatikko |
Sertifikaatit | |
Sertifiointi | FCC, CE, RoHS |
Hallintaominaisuudet | |
Kytkin tyyppi | Hallitsematon |
Pakkauksen sisältö | |
Käyttöopas | ![]() |
Suunnittelu | |
Telineasennus | ![]() |
LED-merkkivalot | Activity, Link, PoE, Power |
Seinäkiinnitteinen | ![]() |
Tuotteen väri | musta |
Pinottava | ![]() |
Kotelon materiaali | Metalli |
Power over Ethernet (PoE) | |
Power over Ethernet -tuki | ![]() |
Power over Ethernet plus (PoE +) -porttien määrä | 8 |
Power over Ethernet (PoE) arvioitu kokonaismäärä | 65 W |
Power over Ethernet (PoE) -virta per portti | 30 W |
Suorituskyky | |
Ilman tuuletinta | ![]() |
Logistiikkatiedot | |
Harmonoidun järjestelmän nimikkeistökoodi (HS) | 85176990 |
Kestävän kehityksen mukainen | ![]() |
EAN | 6935364052966 |
Takuu | 5 vuotta |
Source: Icecat.biz |
Professional 9-Port Unmanaged Switch with 8 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
Professional 9-Port Switch with 8-Port PoE+ (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Ideal for IP Surveillance
—Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Durable Metal Casing
The interior components of TL-SF1009P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1009P delivers switching performance you can depend on.
