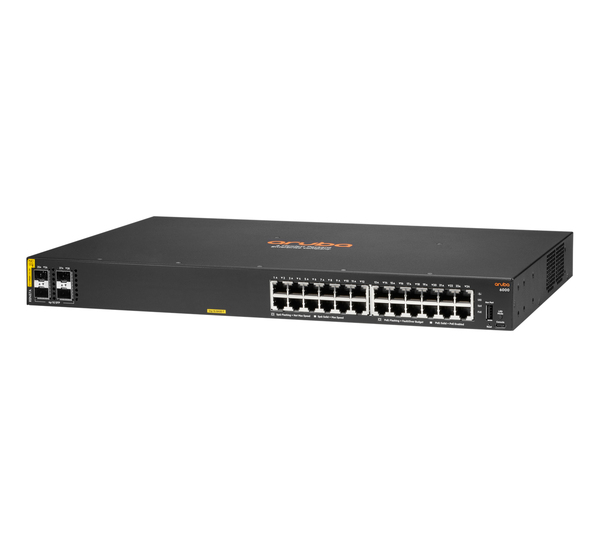

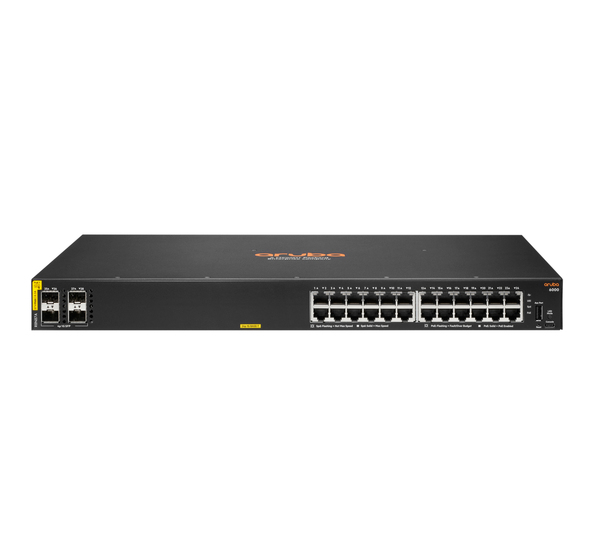

HPE Aruba 6000 24G Class4 PoE 4SFP 370W Switch - Kytkin - Hallinnoitu - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - sivusta sivuun ilmavirtaus - räkkiin asennet
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.
Tärkeimmät tekniset tiedot
Valitse yksi tai useampi ominaisuus etsiäksesi tuotteita, joilla on samat tekniset tiedot.Liitettävyys | |
Console-portti | USB |
Asennettujen SFP+ moduulien määrä | 0 |
Asennettujen SFP moduulien määrä | 0 |
Peruskytkentä RJ-45 Ethernet-porttien tyyppi | Gigabit Ethernet (10/100/1000) |
Basic kytkentä RJ-45 Ethernet-porttien määrä | 24 |
SFP -moduulipaikkojen määrä | 4 |
Paino ja mitat | |
Paino | 4,2 kg |
Tuotteen korkeus | 44 mm |
Tuotteen leveys | 442 mm |
Tuotteen syvyys | 268 mm |
Virranhallinta | |
Voimanlähde | AC |
AC-syöttötaajuus | 50 - 60 Hz |
AC-syöttöjännite | 100 - 240 V |
Tehonkulutus (maks.) | 32,7 W |
Virtalähde mukana | ![]() |
Ympäristöolosuhteet | |
Käytön suhteellinen kosteus (H-H) | 15 - 95% |
Varastointilämpötila | -40 - 70 °C |
Käyttölämpötila (T-T) | 0 - 45 °C |
Säilytysympäristön kosteus | 15 - 90% |
Protokollat | |
IPv4 FIB entries | 256 |
IPv6 FIB entries | 128 |
IPv4- ja IPv6 -ominaisuudet | IPv4/IPv6 access-control list (ACL) |
Verkko | |
Verkkostandardit | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
Virranhallinnan tuki | ![]() |
Porttien peilaus | ![]() |
Linkkien yhdistäminen | ![]() |
Auto MDI/MDI-X | ![]() |
STP-Protokolla | ![]() |
VLAN-tuki | ![]() |
10G-tuki | ![]() |
Datasiirto | |
MAC-osoitetaulukko | 8192 entries |
Kytkentäkapasiteetti | 56 Gbit/s |
Jumbo Frames -tuki | ![]() |
Latenssi (1 Gbps) | 1,5 us |
Suoritusteho | 41,6 Mpps |
Suojaus | |
Pääsynhallintalista | ![]() |
IGMP snooping | ![]() |
Todennustapa | MAC-pohjainen tunnistautuminen |
DHCP-ominaisuudet | DHCP client |
Hallintaominaisuudet | |
Kytkinkerros | L3 |
Quality of Service -tuki | ![]() |
Verkkosivupohjainen hallinta | ![]() |
Kytkin tyyppi | Hallittu |
Pilvipalvelussa hallinnoitu | ![]() |
Suunnittelu | |
Telineasennus | ![]() |
Kotelo | 1U |
Pinottava | ![]() |
Power over Ethernet (PoE) | |
Power over Ethernet -tuki | ![]() |
Power over Ethernet (PoE) arvioitu kokonaismäärä | 370 W |
Suorituskyky | |
Prosessorin taajuus | 1016 MHz |
Sisäinen muisti | 8192 MB |
Prosessorimalli | ARM Cortex-A9 |
Flash-muisti | 16384 MB |
Muistityyppi | DDR3-SDRAM |
Sisäänrakennettu prosessori | ![]() |
Logistiikkatiedot | |
Harmonoidun järjestelmän nimikkeistökoodi (HS) | 85176990 |
Multicast-tuki | ![]() |
EAN | 190017560403 |
Takuu | 5 vuotta |
Source: Icecat.biz |
The HPE Aruba Networking CX 6000 Switch Series is a modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Designed for reliable, simple, and secure access, this switch family provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications. Prepare your network for tomorrow’s unpredictable demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System (AOS-CX) to deliver a more consistent, more efficient operator experience. This fully-managed series has convenient built-in uplinks with up to 740W of Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces. The CX 6000 Series is easy to deploy and use with flexible management choices, allowing the best fit for your business and network environment.
What is new supporting point:
Compact and fanless 12-port PoE model for space-constrained deployments.
Simplify IT operations with modern Layer 2 switch series that provides entry level, reliable, and convenient wired access connectivity.
Flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy to use Web GUI, or industry standard CLI.
Convenient built-in 1 GbE uplinks and up to 740W of Class 4 PoE for support of access points, client, and IoT devices.
Ready for software defined networking with REST APIs.
