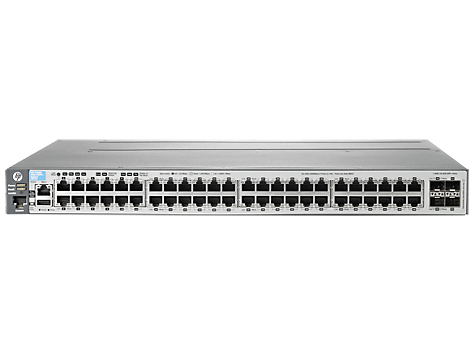

HPE 3800-48G-4SFP+ Switch

Valmistaja: HEWLETT-PACKARD
ID: J9576A#ABB
Tuote ei ole saatavilla
Tätä tuotetta ei valmisteta enää tai sitä ei ole tällä hetkellä saatavilla.

Tärkeimmät tekniset tiedot

Valitse yksi tai useampi ominaisuus etsiäksesi tuotteita, joilla on samat tekniset tiedot.
Tuotetiedot
Kuvaus
Myymäläsaatavuus
Toimitus
Hinnan muutokset
Liitettävyys
Console-porttiRJ-45
Asennettujen SFP+ moduulien määrä4
Peruskytkentä RJ-45 Ethernet-porttien tyyppiGigabit Ethernet (10/100/1000)
Basic kytkentä RJ-45 Ethernet-porttien määrä48
SFP+ -moduulipaikkojen määrä4
Paino ja mitat
Paino7,26 kg
Tuotteen korkeus43,2 mm
Tuotteen leveys467,4 mm
Tuotteen syvyys442,7 mm
Virranhallinta
Virrankulutus186 W
AC-syöttötaajuus50 - 60 Hz
AC-syöttöjännite100-240
Ympäristöolosuhteet
Käyttölämpötila (T-T)0 - 55 °C
Lämmön poisohjaus635 BTU/h
Verkko
Täysin kaksipuolinencheckmark
VerkkostandarditIEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Virranhallinnan tukicheckmark
Porttien peilauscheckmark
Linkkien yhdistäminencheckmark
Nopeuden rajoituscheckmark
DHCP-asiakascheckmark
DHCP servericheckmark
IP-reitityscheckmark
IGMP snoopingcheckmark
STP-Protokollacheckmark
VLAN-tukicheckmark
Routing entries10000
10G-tukicheckmark
Automaattinen tunnistuscheckmark
Datasiirto
MAC-osoitetaulukko65500 entries
Kytkentäkapasiteetti176 Gbit/s
Latenssi (1 Gbps)2,8 us
Latenssi (10 Gbps)1,9 us
Suoritusteho130,9 Mpps
Suojaus
Pääsynhallintalistacheckmark
SSH/SSL-tukicheckmark
Hallintaominaisuudet
MIB-tukiKyllä
KytkinkerrosL3
Quality of Service -tukicheckmark
Multicast-tukicheckmark
Verkkosivupohjainen hallintacheckmark
Kytkin tyyppiManaged network switch
Suunnittelu
Telineasennuscheckmark
Kotelo1U
Tuotteen väriHarmaa
Power over Ethernet (PoE)
Power over Ethernet -tukicross
Suorituskyky
Sisäinen muisti2048 MB
Flash-muisti4096 MB
MuistityyppiSDRAM
Pinottavacheckmark
Sisäänrakennettu prosessoriProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz
Laitteen puskurimuistiin36 MB
EAN0886112091699
Takuu1 vuosi
Source: Icecat.biz

The HP 3800 Switch Series is a family of nine fully managed Gigabit Ethernet switches available in 24-port and 48-port models, with or without PoE+, and with either SFP+ or 10GBASE-T uplinks. The 3800 Switch Series utilizes the latest HP ProVision ASIC technology and advances in hardware engineering to deliver one of the most resilient and energy-efficient switches in the industry. Meshed stacking technology is implemented in the HP 3800 Switch Series to deliver chassis-like resiliency in a flexible, stackable form factor.

Software-defined networking

• OpenFlow: is a key technology that enables software-defined networking by allowing the separation of data (packet forwarding) and control (routing decision) paths


Quality of Service (QoS)

• Advanced classifier-based QoS: classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis


Management

• Friendly port names: allows assignment of descriptive names to ports


Connectivity

• Jumbo frames: on Gigabit Ethernet and 10-Gigabit Ethernet ports, jumbo frames allow high-performance remote backup and disaster-recovery services


Performance

• Selectable queue configurations: allows for increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications


Resiliency and high availability

• Nonstop switching and routing: improves network availability to better support critical applications such as unified communication and mobility; traffic will continue to be forwarded during failover when the backup member of the stack becomes the commander


Layer 2 switching

• GARP VLAN Registration Protocol: allows automatic learning and dynamic assignment of VLANs
