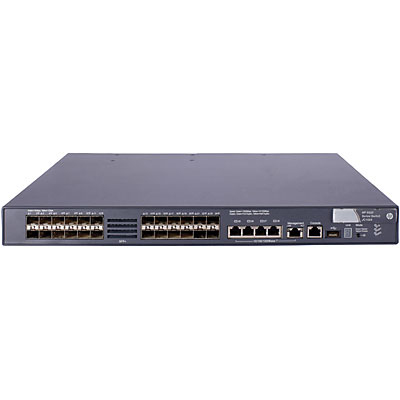

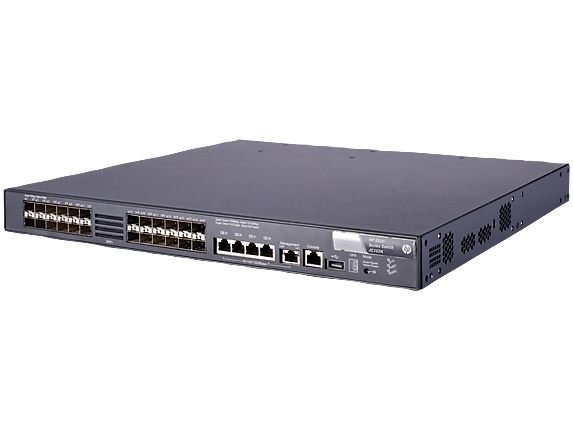

HPE 5820-24XG-SFP+ Switch

Overview
The HP 5820 Switch Series supports advanced features that deliver a unique combination of
unmatched 10 Gigabit Ethernet; Fibre Channel over Ethernet (FCoE) connectivity; high-availability architecture; full Layer 2/3 dual-stack IPv4/IPv6; and line-rate, low-latency performance on all ports. Extensible embedded application capabilities enable these switches to integrate services into the network, consolidating devices and appliances to simplify deployment and reduce power consumption and rack space. Extremely versatile, the switches can be used in high-performance, high-density building or department cores as part of a consolidated network; for data center top-of-rack server access; or as high-performance Layer 3, 10GbE aggregation switches in campus and data center networks.

Features
Quality of Service (QoS)

• Powerful QoS feature: creates traffic classes based on access control lists (ACLs), IEEE 802.1p precedence, IP, and DSCP or Type of Service (ToS) precedence; supports filter, redirect, mirror, or remark; supports the following congestion actions: strict priority (SP) queuing, weighted round robin (WRR), weighted fair queuing (WFQ), weighted random early discard (WRED), weighted deficit round robin (WDRR), and SP+WDRR


Management

• Remote configuration and management: is available through a secure Web browser or a CLI


Connectivity

• High-density port connectivity: 194 10GbE ports with a 40 Gbps resilient backplane


Performance

• Hardware-based wire-speed access control lists (ACLs): feature-rich ACL implementation (TCAM-based) helps provide high levels of security and ease of administration without impacting network performance


Resiliency and high availability

• Data center-optimized design: the HP 5820AF-24XG Switch (JG219A) supports front-to-back/back-to-front airflow for hot/cold aisles, rear rack mounts, and redundant hot-swappable AC or DC power and fans


Manageability

• Full-featured console: provides complete control of the switch with a familiar CLI


Layer 2 switching

• 32K MAC addresses: provide access to many Layer 2 devices
