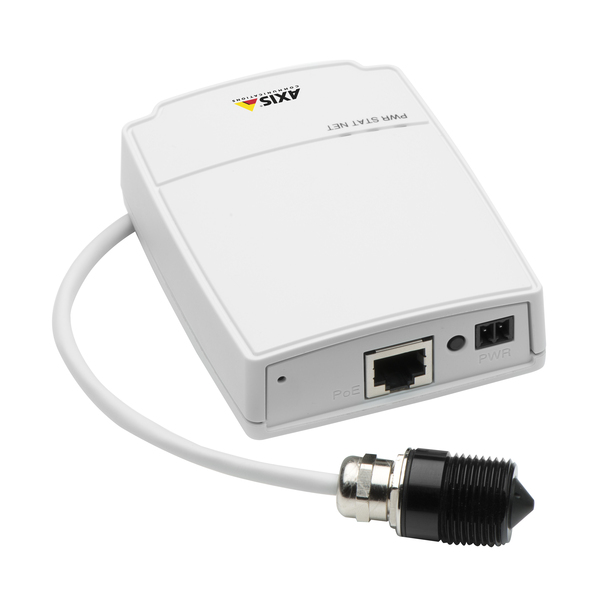

P1214 Mini HDTV pinhole cam

0532-001
520,00 €
Show price: incl. VAT excl. VAT
Multitronic warehouse0
Multitronic - JNT Vaasa0
Multitronic - JNT Pietarsaari0
iTronic Vaasa0
iTronic Seinäjoki0
Multitronic / iTronic Lappeenranta0
Multitronic / iTronic Jyväskylä0
Multitronic Mariehamn0
Multicare Pietarsaari0
Supplier3 pcs
Estimated delivery time5-7 days
Fetch from the shop0,00 €
Posti Parcel Point3,90 €
Postal Parcel5,60 €
Parcel to the Doorstep11,10 €
Home Delivered Parcel11,70 €
Matkahuolto Near Parcel6,20 €
Matkahuolto Bus Parcel4,10 €
Specifications
System requirements
Windows operating systems supportedcheckmark
Mac operating systems supportedcross
Ports & interfaces
InterfaceRJ-45
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
Lens system
Fixed focal length3.7 mm
Weight & dimensions
Height31 mm
Width76 mm
Depth103 mm
Diameter2 cm
Energy management
Power consumption (typical)4.7 W
DC-in jackcheckmark
Power over Ethernet (PoE)checkmark
Operational conditions
Operating relative humidity (H-H)10 - 85%
Operating temperature (T-T)-20 - 50 °C
Networking
Supported network protocolsIPv4/v6, HTTP, HTTPS, QoS Layer 3 DiffServ, FTP, SMTP, Bonjour, UPnP, SNMPv1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS
Cabling technology10/100Base-T(X)
Ethernet LANcheckmark
Wi-Ficross
Video
Maximum resolution1280 x 720 pixels
Supported graphics resolutions1280 x 720 (HD 720)
Supported video modes720p
Video formats supportedH.264,M-JPEG,MPEG4
Storage
Internal memory256 MB
Flash memory128 MB
Compatible memory cardsSD,SDHC
Card reader integratedcheckmark
Built-in hard drivecross
Security
Security algorithms802.1x RADIUS
Password protection typecheckmark
Video motion detectioncheckmark
Active tampering alarmcheckmark
IP address filteringcheckmark
HTTPS encryptioncheckmark
Certificates
CertificationEN 55022 B, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 55024, FCC 15 B B, ICES-003 B, VCCI B, C-tick AS/NZS CISPR 22, KCC B, EN/IEC 60950-1, IEC 60068-2-6 4M4, IEC 60068-2-27 M3, IEC 60068-2-1. IEC 60068-2-2, 60068-2-78 3K3, IEC 60529: IP20
Image sensor
Sensor typeCMOS
Optical sensor size25.4 / 4 mm (1 / 4")
Camera
Viewing angle, horizontal57°
Viewing angle, vertical31°
Camera shutter speed1/24500 - 1/6
Minimum illumination1.2 lx
Angle of rotation270°
Camera shutter typeElectronic
Packaging content
Bundled softwareAXIS Camera Station
User guidecheckmark
Mounting kitcheckmark
Other features
Power requirements8 - 28 VDC / IEEE 802.3af
Data transfer rate100 Mbit/s
Compatible operating systemsWindows 7, Windows Vista, Windows XP, Windows Server 2008, Windows Server 2003
Design
Form factorCovert
LED indicatorsStatus
Colour of productBlack, White
Housing materialPolycarbonate
Mounting typeCeiling/wall
International Protection (IP) codeIP20
Performance
TypeIP security camera
Placement supportedIndoor
PTZ control (Pan/Tilt/Zoom)cross
Alarm input/outputcheckmark
EAN7331021004016
Source: Icecat.biz
Description

- Functional and extremely discreet design
- Easy and flexible installation
- HDTV 720p
- Edge storage
- Multiple H.264 streams
- Power over Ehternet

Unique design concept
The unique form factor and small size of the sensor unit, enables flush mounting at places where a concealed application is required. AXIS P1214 is ideal for indoor compact and covert surveillance in stores, architectural buildings, hotels, offices, banks and ATMs.

Compact and covert installations
The innovative design concept of AXIS P1214 comprises a main unit and a separate sensor unit, enabling it to be mounted up to 8 meters (26ft.) apart.

AXIS P1214 can easily be mounted behind any wall, with just a small opening for the lens, or with the whole lens protruding from the wall. The camera include various mounting accessories enabling quick and easy installation.

HDTV 720p
The exceptionally discreet, miniature AXIS P1214 Network Camera provides full frame rate HDTV 720p (1280x720 pixels) video in H.264 and Motion JPEG.

More features
- Power over Ethernet (IEEE 802.3af), eliminating the need for power cables and reducing installation costs
- Intelligent capabilities such as enhanced video motion detection and detection of camera tampering attempts like blocking or spray-painting
- Advanced security and network management features such as HTTPS encryption with preserved performance, IPv6 and Quality of Service
