Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Product type | Processor |
| Processor cache | 1024 KB |
| Processor core voltage | 0.8500-1.5 V |
| Status | Discontinued |
| Launch date | Q4'07 |

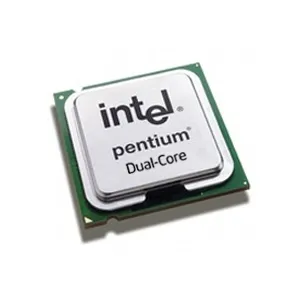

| Product name | Intel Pentium E2200 (1M Cache, 2.20 GHz, 800 MHz FSB) |
| Born on date | Q4'07 |
| Bus type units | MHz |
| Bus bandwidth | 800 |
| Processor brand name | Intel Pentium |
| Last change | 63903513 |
| Product family | Legacy Intel Pentium Processor |
| Processor | |
| Processor model | E2200 |
| Processor manufacturer | Intel |
| Processor front side bus | 800 MHz |
| Processor lithography | 65 nm |
| Processor family | Intel Pentium |
| Box |  |
| Processor socket | LGA 775 |
| Stepping | M0 |
| Processor cores | 2 |
| CPU multiplier (bus/core ratio) | 11 |
| VID Voltage Range | 0.85 - 1.5 V |
| Processor threads | 2 |
| Compatible chipsets | Intel 945G Express, Intel® 945GC Express, Intel® 945GZ Express, Intel® 945P Express, Intel 945PL Express, Intel® 946GZ Express, Intel 946PL Express, Intel® 975X Express, Intel® G31 Express, Intel® G33 Express, Intel® G35 Express, Intel® G41 Express, Intel® G43 Express, Intel® G45 Express, Intel® G965 Express, Intel® P31 Express, Intel® P35 Express, Intel® P43 Express, Intel® P45 Express, Intel® P965 Express, Intel® Q33 Express, Intel® Q35 Express, Intel® Q43 Express, Intel® Q45 Express, Intel® Q963 Express, Intel® Q965 Express, Intel® X38 Express, Intel® X48 Express |
| Processor operating modes | 64-bit |
| Component for | PC |
| Processor cache | 1 MB |
| FSB Parity |  |
| Bus type | FSB |
| Thermal Design Power (TDP) | 65 W |
| Processor codename | Conroe |
| Processor cache type | L2 |
| Processor series | Intel Pentium E2000 Series for Desktop |
| Processor ARK ID | 33925 |
| Cooler included | |
| Weight & dimensions | |
| Processor package size | 37.5 x 37.5 mm |
| Operational conditions | |
| Tcase | 73.3 °C |
| Packaging data | |
| Package depth | 414 mm |
| Package height | 148 mm |
| Package width | 157 mm |
| Package type | Retail box |
| Other features | |
| Intel® Virtualization Technology (Intel® VT) | |
| Cache memory | 1 MB |
| Supplemental SKU | |
| Graphics | |
| On-board graphics card | |
| Processor special features | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | |
| Intel® Turbo Boost Technology | |
| Intel® AES New Instructions (Intel® AES-NI) | |
| Enhanced Intel SpeedStep Technology | |
| Intel Trusted Execution Technology | |
| Intel Enhanced Halt State | |
| Intel Demand Based Switching | |
| Intel 64 | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel Virtualization Technology (VT-x) | |
| Features | |
| Execute Disable Bit | |
| Idle States | |
| Thermal Monitoring Technologies | |
| Number of Processing Die Transistors | 105 M |
| Embedded options available | |
| Processing Die size | 77 mm² |
| Number of Graphics & IMC Die Transistors | 105 M |
| Market segment | Desktop |
| EAN | 5032037008358 |
| Warranty | 3 years |
- Dual Core
- Enhanced Halt State (C1E)
- Enhanced Intel Speedstep® Technology
- Execute Disable Bit
- Intel® EM64T
- Intel® Thermal Monitor
Intel's newest addition to the Intel® Pentium® processor family with dual-core processor technology that delivers great desktop and mobile performance, low power enhancements, and multitasking for everyday computing.
Intel® 64 architecture delivers 64-bit computing on server, workstation, desktop and mobile platforms when combined with supporting software. Intel 64 architecture improves performance by allowing systems to address more than 4 GB of both virtual and physical memory.
Enhanced Intel SpeedStep® Technology is an advanced means of enabling very high performance while also meeting the power-conservation needs of mobile systems. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load.
Execute Disable Bit is a hardware-based security feature that can reduce exposure to viruses and malicious-code attacks and prevent harmful software from executing and propagating on the server or network. Help protect your customers' business assets and reduce the need for costly virus-related repairs by building systems with built-in Intel Execute Disable Bit.
