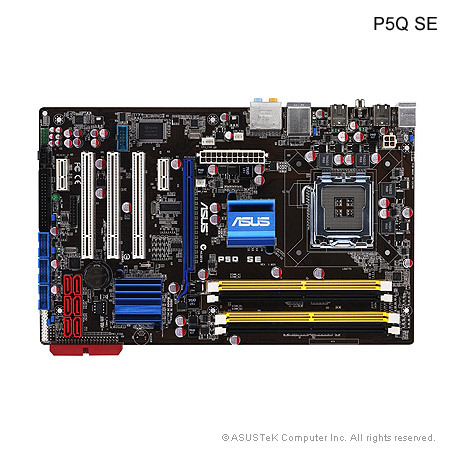

ASUS P5Q SE Socket775 ATX RTL

Intelin uudella P45 piirisarjalla varustettu Quad Core emolevy! FSB 1600/1333/1066/800. Dual Channel DDR2 1200/1066/800/667. PCI-E 16X. 8CH-audio, Gb LAN. Takuu 36kk

---

Prosessorituki:
Intel® Socket 775 for Intel® Core™2 Extreme/Core™2 Quad/ Core™2 Duo/Pentium® dual-core/Celeron® dual-core /Celeron® Processors
Compatible with Intel® 05B/05A/06 processors
Support Intel® 45nm Multi-Core CPU

Piirisarja: Intel® P45 / ICH10 with Intel® Fast Memory Access Technology

Väylänopeus: 1600/1333/1066/800 MHz

VGA: -

PCI-E X16: 1kpl

PCI-E X4: -

PCI-E X1: 2 kpl

PCI: 3kpl

Muisti: 4 x DIMM, DDR2 1200/1066/800/667 MHz, non-ECC, un-buffered memory
Dual channel memory architecture.
* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
**When installing four DDR2 DIMM modules, install only single-sided memory modules.

Tallennus/RAID: Southbridge
- 1 x UltraDMA 133
- 6 xSATA 3 Gb/s ports

USB: 12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel)

Firewire: -

LAN: Atheros L1E Gigabit LAN controller featuring AI NET 2

WLAN: -

Audio: Realtek ALC1200 8 -Channel High-Definition Audio CODEC
- Support Jack Detection, Multi-streaming, and Front Panel Jack-Retasking
- Coaxial S/PDIF out ports at back I/O
- ASUS Noise Filtering

Hallittavuus: WfM 2.0, DMI 2.0, WOL by PME, WOR by PME, PXE

Ylikellotusominaisuudet:

Intelligent overclocking tools:
- ASUS AI Booster utility
Precision Tweaker:
- vCore: Adjustable CPU voltage at 6.25mV increment
- vDIMM: 5-step DRAM voltage control
SFS (Stepless Frequency Selection)
- FSB tuning from 200MHz up to 800MHz at 1MHz increment
- Memory tuning from 667MHz up to 1333MHz for DDR2
- PCI Express frequency tuning from 100MHz up to180MHz at 1MHz increment
Overclocking Protection:
- ASUS C.P.R.(CPU Parameter Recall)

Erikoisominaisuudet:

ASUS Power Saving Solution:
- ASUS EPU- 4 Engine
- ASUS AI Nap
ASUS Exclusive Features:
- ASUS Express Gate
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: heatsink solution
- ASUS Fan Xpert
ASUS EZ DIY:
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2

Takapaneelin liitännät:

1 x PS/2 Keyboard port
1 x PS/2 Mouse port
1 x S/PDIF Out (Coaxial) port
1 x RJ45 port
6 x USB 2.0/1.1 ports
8-channel Audio I/O ports

Sisäiset liitännät:

3 x USB connectors support 6 additional USB ports
1 x Floppy disk drive connector
1 x IDE connector
1 x COM connector
6 x SATA connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x Power Fan connector
Front panel audio connector
1 x S/PDIF Out Header
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 4-pin ATX 12V Power connector
1 x TPM Header
System Panel(Q-Connector) l


Ohjelmisto:

Drivers
ASUS PC Probe II
ASUS Update
Express Gate
ASUS AI Suite
Anti-virus software (OEM version)

Tarvikkeet:

1 x UltraDMA 133/100/66 cable
1 x FDD cable
2 x Serial ATA cables
1 x 2-port Serial ATA power cable
I/O Shield
User's manual
2 in 1 Q-connector

Pakkaus: Retail (10)

Koko: ATX Form Factor, 12"x 7.6" (30.5cm x 19.3cm)

Takuu: 36 kk
