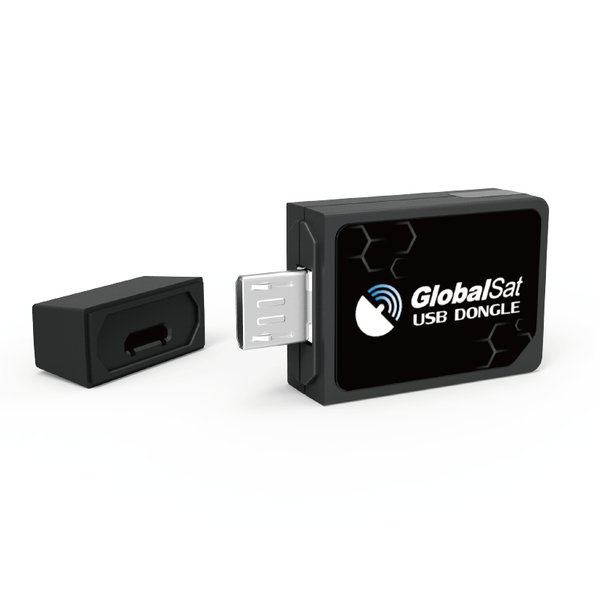

GlobalSat ND-105C, GPS-mottagare med micro USB, 66-kanaler, svart
Manufacturer: GLOBALSAT
ID: ND-105C
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| WAAS capability |  |
| Product colour | Black |
| Ports & interfaces | |
| USB connector type | Micro-USB B |
| Weight & dimensions | |
| Height | 15.4 mm |
| Width | 30.4 mm |
| Depth | 4.5 mm |
| GPS Performance | |
| Interface | USB |
| Channels quantity | 210 channels |
| Antenna | Internal |
| Sensitivity | 165 dBmW |
| Navigation protocols | GGA, GSA, GSV, RMC |
| Certificates | |
| Certification | CE |
| Illumination/Alarms | |
| LED indicators | Status |
| Battery charge indicator | |
| Operating system/software | |
| Windows operating systems supported | Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Other operating systems supported | Android |
| Packaging content | |
| Manual | |
| Battery | |
| Rechargeable | |
| EAN | 7340004696087 |
| Source: Icecat.biz | |
ND-105C features high GPS sensitivity, Micro USB interface, low power consumption and ultra small form factor. This product is powered by MTK GPS solution; it can provide you with superior sensitivity and performance even in urban canyon and dense foliage environment. ND-105C supports up to 210 PRN channels. With 66 search channels and 22 simultaneous tracking channels, ND-105C acquires and tracks satellites in the shortest time even at indoor signal levels. Through ND-105C’s excellent low-power consumption characteristic, while using power sensitive devices, especially portable applications.
Features
- MediaTek high performance GPS Chipset
- Very high sensitivity (Chip Tracking Sensitivity: -165 dBm)
- Extremely fast TTFF (Time To First Fix) at low signal level
- Micro USB interface.
- Built-in LNA
- Built-in GPS Antenna
- Built-in GPS status LED(Red).
- Built-in Back up Battery.
- Compact size (30.4 mm x 15.4 mm x 4.5 mm) suitable for portable application
- Very low power consumption
- Support NMEA0183 V4.0(GGA,GSA,GSV,RMC)
- Support SBAS (WASS, EGNOS, MSAS, GAGAN), QZSS
- Micro USB Supports Android & Window8 operating system
Features
- MediaTek high performance GPS Chipset
- Very high sensitivity (Chip Tracking Sensitivity: -165 dBm)
- Extremely fast TTFF (Time To First Fix) at low signal level
- Micro USB interface.
- Built-in LNA
- Built-in GPS Antenna
- Built-in GPS status LED(Red).
- Built-in Back up Battery.
- Compact size (30.4 mm x 15.4 mm x 4.5 mm) suitable for portable application
- Very low power consumption
- Support NMEA0183 V4.0(GGA,GSA,GSV,RMC)
- Support SBAS (WASS, EGNOS, MSAS, GAGAN), QZSS
- Micro USB Supports Android & Window8 operating system
