Ports & interfaces | |
Serial interface type | RJ-45 |
AC outlets quantity | 12 AC outlet(s) |
Number of output IEC jumpers | 2 |
Power plug | Hardwire |
AC outlet types | C13 coupler, C19 coupler |
Serial interface | ![]() |
USB port | ![]() |
SmartSlot | ![]() |
Weight & dimensions | |
Weight | 54.4 kg |
Height | 432 mm |
Width | 130 mm |
Depth | 719 mm |
Operational conditions | |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -15 - 45 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 0 - 95% |
Non-operating altitude | 0 - 15000 m |
Packaging data | |
Package weight | 63.6 kg |
Package depth | 960 mm |
Package height | 330 mm |
Package width | 610 mm |
Warranty card | ![]() |
Software CD | ![]() |
Temperature sensor | ![]() |
Certificates | |
Certification | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
Compliance certificates | RoHS |
Packaging content | |
Cables included | USB cable |
Quick installation guide | ![]() |
Battery | |
Battery technology | Sealed Lead Acid (VRLA) |
Battery recharge time | 1.5 h |
Typical backup time at half load | 11.8 min |
Typical backup time at full load | 4 min |
Hot-swap battery | ![]() |
Cold start | ![]() |
Automatic battery test | ![]() |
Battery capacity | 845 VAh |
Battery life (max) | 5 year(s) |
Other features | |
Packaging content | Comms cable Removable support feet Web/SNMP Management Card |
Design | |
LED indicators | Status |
Product colour | Black |
International Protection (IP) code | IP20 |
Display type | LCD |
Features | |
Audible alarm(s) | ![]() |
Emergency Power Off (EPO) | ![]() |
Output power capacity | 5 kVA |
Surge energy rating | 480 J |
Noise level | 55 dB |
Input frequency | 40 - 70 Hz |
Efficiency | 94.1% |
Output power | 4500 W |
Surge protection | ![]() |
Crest factor | 3:1 |
Input operation voltage (max) | 275 V |
Input operation voltage (min) | 100 V |
Output operation voltage (min) | 220 V |
Output operation voltage (max) | 240 V |
Waveform | Sine |
Output frequency regulation | 50/60 Hz |
Auto-restart | ![]() |
UPS topology | Double-conversion (Online) |
Logistics data | |
Products per pallet | 6 pc(s) |
Harmonized System (HS) code | 85078000 |
Total carbon footprint (kg of CO2e) | 8386.06 |
Sustainability | |
Sustainability certificates | ENERGY STAR |
EAN | 0731304301615 |
Warranty | 1 year |
Source: Icecat.biz |

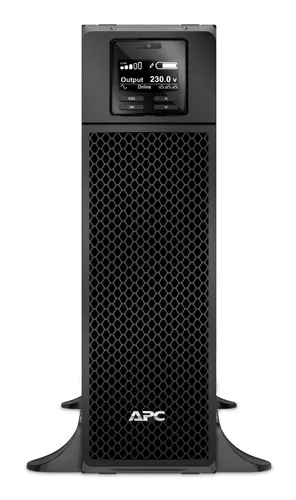

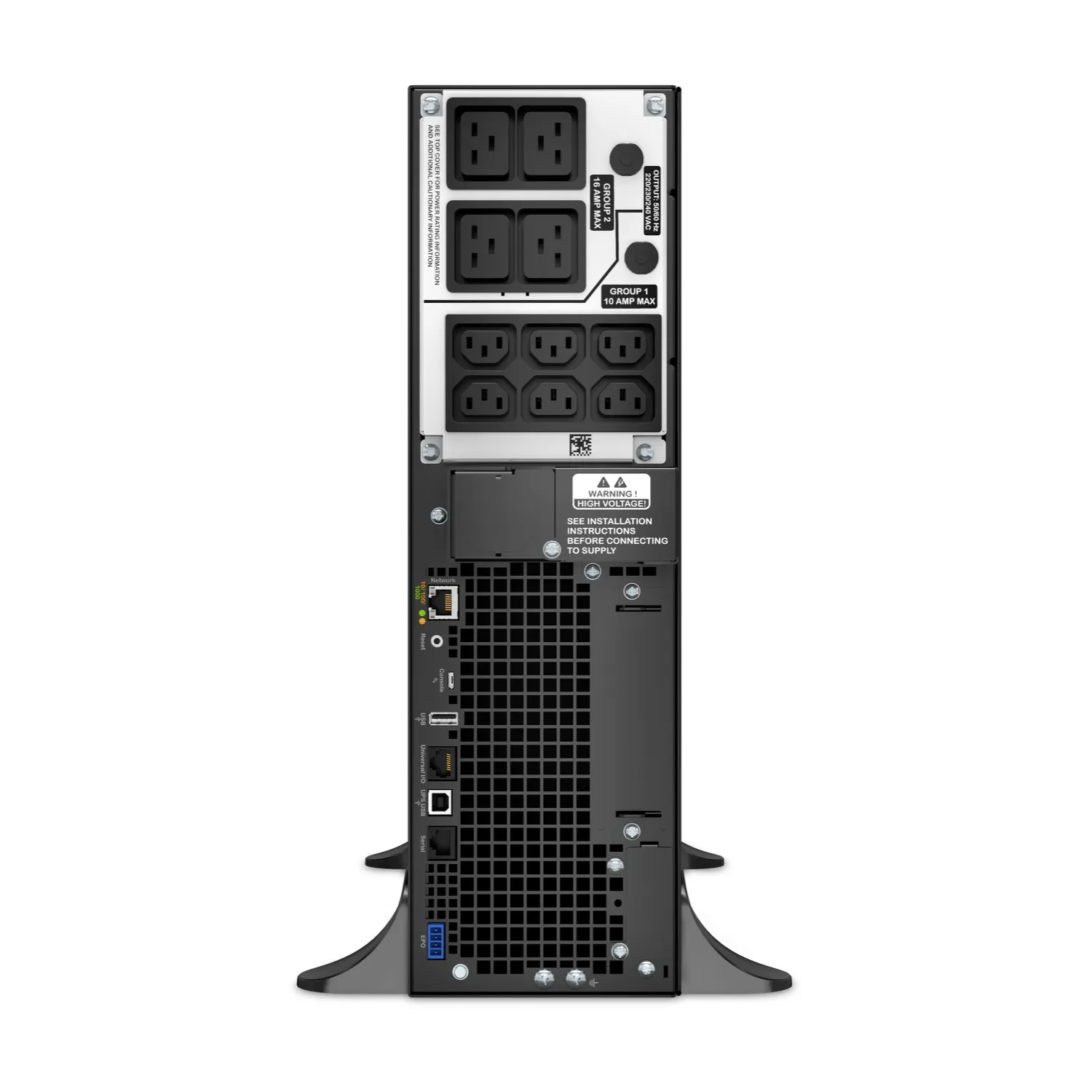

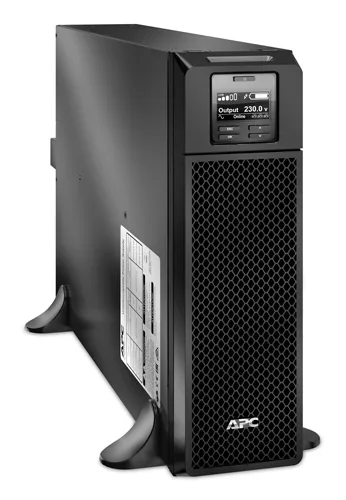

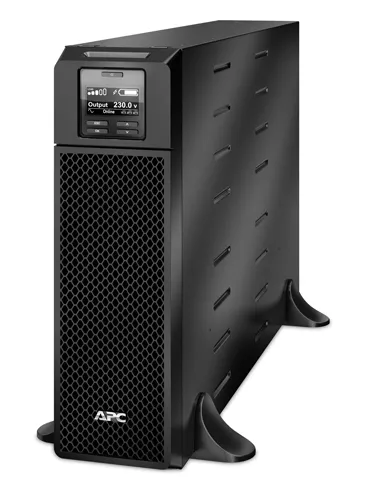

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
