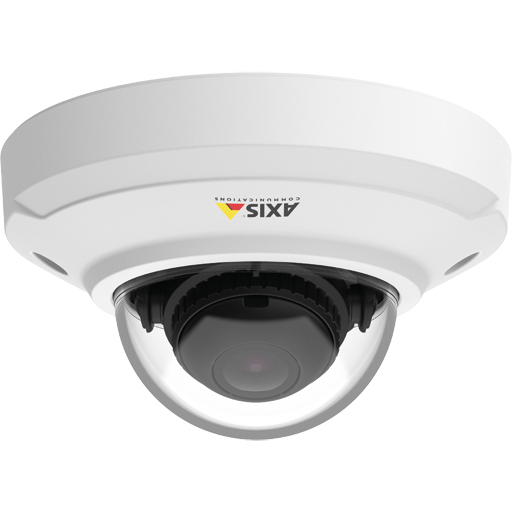

AXIS M3046-V, nätverkövervakningskamera, mini dome, QHD, 4MP, vit

0806-001
471,90 €
Show price: incl. VAT excl. VAT
Online store:
18 pcs available

Estimated delivery time: 5-7 days
Shipment cost: from 3,90 €
Fetch from the shop0,00 €
Posti Parcel Point3,90 €
Postal Parcel5,60 €
Parcel to the Doorstep11,10 €
Home Delivered Parcel11,70 €
Matkahuolto Near Parcel6,20 €
Matkahuolto Bus Parcel4,10 €
Stores:select
5-7 days
Specifications
Technical details
Irischeckmark
System requirements
Windows operating systems supportedcheckmark
Ports & interfaces
Connectivity technologyWired
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Lens system
Focus adjustment2.2
Fixed focal length2.4 mm
Weight & dimensions
Weight180 g
Height56 mm
Width101 mm
Depth101 mm
Energy management
Power consumption (typical)2.8 W
Power over Ethernet (PoE)checkmark
Power source typePoE
Power consumption (max)3.2 W
Operational conditions
Operating relative humidity (H-H)15 - 85%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Storage relative humidity (H-H)15 - 85%
Networking
Supported network protocolsIPv4/v6, HTTP, HTTPS, SSL/TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP TM , SNMPv1/v2c/v3 (MIB-II),DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP,ARP, SOCKS, SSH
Cabling technology10/100Base-T(X)
Ethernet LANcheckmark
Networking standardsIEEE 802.3,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Wi-Ficross
Quality of Service (QoS) supportcheckmark
3Gcross
Ethernet interface typeFast Ethernet
4Gcross
Video
Maximum resolution2688 x 1520 pixels
Video compression formatsH.264,M-JPEG,MPEG4
Supported graphics resolutions2688 x 1520,320 x 240
Supported video modes720p,1080p
Total megapixels4 MP
Privacy maskingcheckmark
Text caption overlaycheckmark
Storage
Internal memory512 MB
Flash memory256 MB
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Card reader integratedcheckmark
Built-in hard drivecross
Security
Security algorithms802.1x RADIUS,HTTPS,SSH,SSL/TLS
Password protection typeUser
Video motion detectioncheckmark
Active tampering alarmcheckmark
IP address filteringcheckmark
HTTPS encryptioncheckmark
Motion sensorcheckmark
Certificates
CertificationEN 55032 Class B, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A / B,
ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 22 Class B, KCC KN32 Class B, KN35, IEC/EN/UL 60950-1, IEC/EN 60529 IP42, IEC/EN 62262 Class IK08
Image sensor
Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scancheckmark
Management features
Web-based managementcheckmark
Camera
Viewing angle, horizontal128°
Viewing angle, vertical69°
White balanceAuto
Camera shutter speed1/32500 - 1/5
Minimum illumination0.3 lx
Tilt angle range-65 - 65°
Angle of rotation352°
Pan range-177 - 177°
Packaging content
Bundled softwareAXIS Camera Companion, AXIS Camera Station, Video
management software
Quick installation guidecheckmark
Number of cameras1
Screws includedcheckmark
Design
Form factorDome
Colour of productWhite
Housing materialAcrylonitrile butadiene styrene (ABS), Polycarbonate
Mounting typeCeiling/wall
International Protection (IP) codeIP42
Protection featuresDust resistant, Water resistant
Night vision
Night visioncross
Performance
TypeIP security camera
Languages supportSimplified Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian
Placement supportedIndoor
Number of languages10
Auto-trackingcheckmark
Wide Dynamic Range (WDR)checkmark
EAN7331021049086
Warranty3 years
Source: Icecat.biz
Description

Quad HD / 4 MP, AXIS M3046-V provides exceptional video quality at an affordable price. AXIS M3046-V is perfect for stores, hotels, schools, banks and offices. And it features an HDMI output for live streaming to a public monitor.

AXIS M3046-V gives you sharp Quad HD video quality. It provides a horizontal field of view of 128°. And it comes with Wide Dynamic Range (WDR) technology for good detail even when light levels vary.

Sharp images. Low bandwidth

Axis’ Zipstream technology reduces storage and bandwidth by up to 50%, while capturing important details in full image quality. Video streams can be encoded in H.264 and Motion JPEG. And for monitoring long, narrow areas, Axis’ Corridor Format provides a portrait-shaped video stream. It maximizes image quality, while eliminating bandwidth and storage waste.

See the big picture – and the details – with a single camera

Thanks to digital pan/tilt/zoom (PTZ) capabilities and multi-view streaming, AXIS M3046-V lets you view separate video streams of zoomed-in sections of an image at the same time as you view the full overview image. This can be done with a single camera, which keeps installation and maintenance time and costs low, plus minimizes bandwidth and storage needs. AXIS M3046-V can also be used as an alternative to a camera with varifocal lens – its 4MP resolution and digital PTZ capability enable sharp, cropped out views in HDTV 1080p, for example, with a horizontal field of view between 95° and 128°.

Live streaming to a public monitor

AXIS M3046-V features an HDMI output that lets you connect your network cameras to a public monitor to show you have video surveillance in place.

Fits in your hand – fits in anywhere

Small and compact, AXIS M3046-V can be mounted on walls or ceiling as you prefer. And you can easily repaint it to blend in with any environment. A black casing is also available as an accessory.

Installation that’s as easy as 1, 2, 3

To keep implementation costs low, AXIS M3046-V is designed for fast and easy installation. No focusing is required because it comes factory focused. And with its 3-axis camera-angle adjustment, it can be easily leveled and directed in any direction. AXIS M3046-V is also vandal and dust resistant for optimal performance and minimal downtime.
