| Display | |
| Pixel pitch | 0.297 x 0.297 mm |
| Contrast ratio (typical) | 700:1 |
| Horizontal scan range | 31.5 - 60.2 kHz |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Aspect ratio | 4:3 |
| Vertical scan range | 56 - 75 Hz |
| Display viewable area (HxV) | 228 x 304 mm |
| Display diagonal | 38.1 cm (15") |
| Display brightness | 370 cd/m² |
| Response time | 8 ms |
| Display resolution | 1024 x 768 pixels |
| Digital horizontal frequency | 31.5 - 60.2 kHz |
| Digital vertical frequency | 56 - 75 Hz |
| Separate H/V sync |  |
| Display diagonal (metric) | 38 cm |
| Touchscreen technology | Surface acoustic wave |
| Display type | LED |
| Display technology | TN |
| Display number of colours | |
| Ports & interfaces | |
| Cables included | Audio (3.5mm),DVI,RS-232,USB,VGA |
| USB 2.0 ports quantity | 1 |
| DVI port | |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| RS-232 ports | 1 |
| RS-232C | |
| Weight & dimensions | |
| Weight | 4.8 kg |
| Height | 306 mm |
| Width | 351 mm |
| Depth | 201 mm |
| Energy management | |
| Power consumption (typical) | 16 W |
| Power supply type | AC |
| Energy Star certified |  |
| Power management | |
| Power consumption (standby) | 2 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100-240 V |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | CE, CB, TÜV-Bauart, CU, cULus, VCCI, IP54 |
| Ergonomics | |
| Cable lock slot | |
| Wall mountable | |

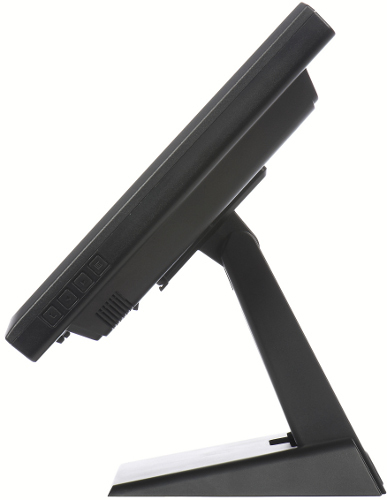

| Tilt angle range | -5 - 90° |
| Panel mounting interface | 100 x 100 mm |
| VESA mounting | |
| Packaging content | |
| Quick start guide | |
| Design | |
| Product colour | Black |
| International Protection (IP) code | IP54 |
| Performance | |
| Plug and Play | |
| Built-in microphone | |
| RMS rated power | 2 W |
| Built-in speaker(s) | |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages | 8 |
| Mac operating systems supported | Mac OS 9.0,Mac OS 9.1,Mac OS 9.2,Mac OS X 10.0 Cheetah,Mac OS X 10.1 Puma,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.2 Jaguar,Mac OS X 10.3 Panther,Mac OS X 10.4 Tiger,Mac OS X 10.5 Leopard,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Linux operating systems supported | |
| Built-in camera | |
| Touchscreen type | Tabletop |
| Number of speakers | 2 |
| EAN | 4948570114528 |
| Warranty | 3 years |
| Source: Icecat.biz | |

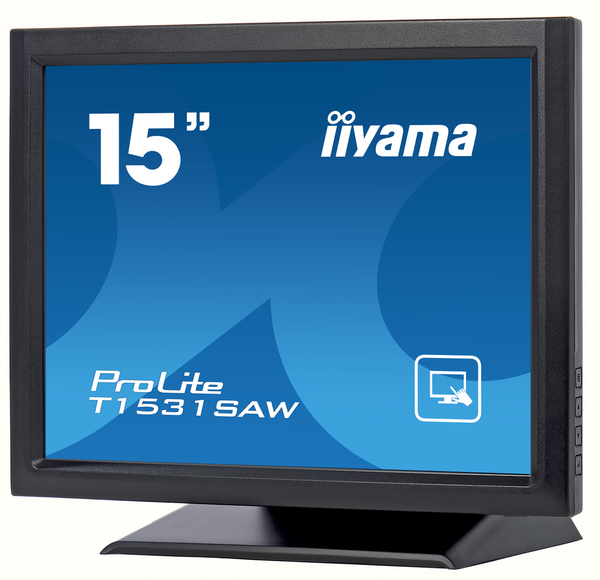

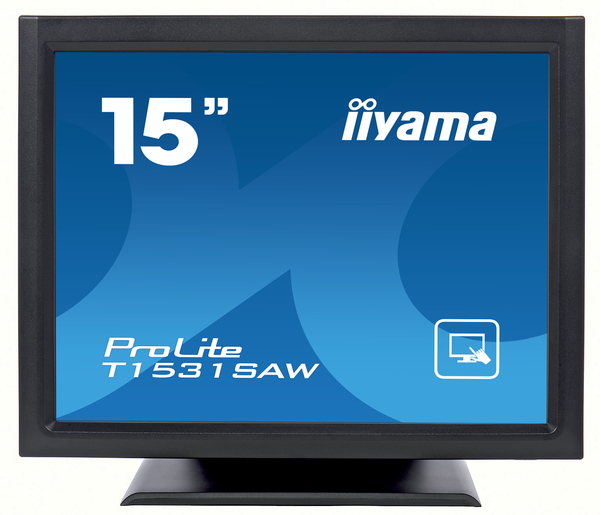

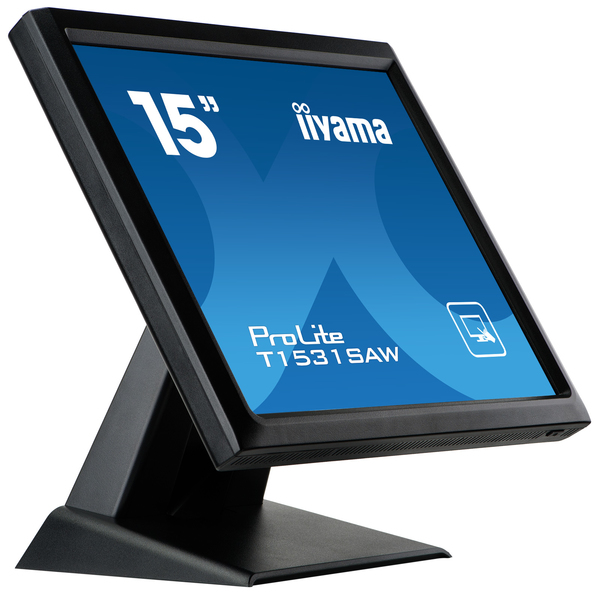

The ProLite T1531SAW uses highly accurate Surface Acoustic Wave Touch Technology (SAW) with a pure-glass scratch resistive front, offering superior image clarity and screen durability. The screen can be touched with a soft stylus, finger or gloved hand making it suitable for a number of applications, and the robust design and solid but flexible stand ensures resilience in the most demanding environment. Menu Buttons are located on the side of the screen which can be locked to prevent tampering, and include a handy function to deactivate the Touch Screen for cleaning . The iiyama Prolite T1531SAW1 Touch Screen is ideal for a wide range of applications including Point of Sale, Kiosks, Hospitality and Entertainment, Control rooms, Education, Training and many others.
TOUCH TECHNOLOGY - SURFACE ACOUSTIC WAVE
Surface acoustic wave uses ultrasonic waves that pass over the panel. When the panel is touched, a portion of the wave is absorbed and a touch event is registered. Because the screen is covered with a glass layer this technology offers great picture performance (high contrast and colour accuracy). It is also scratch-resistant technology and therefore ideal for use in Public Places or Schools. Even if the screen is scratched, the touch function remains unaffected. Surface Acoustic Touch screens are activated with finger or a soft stylus touch.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.

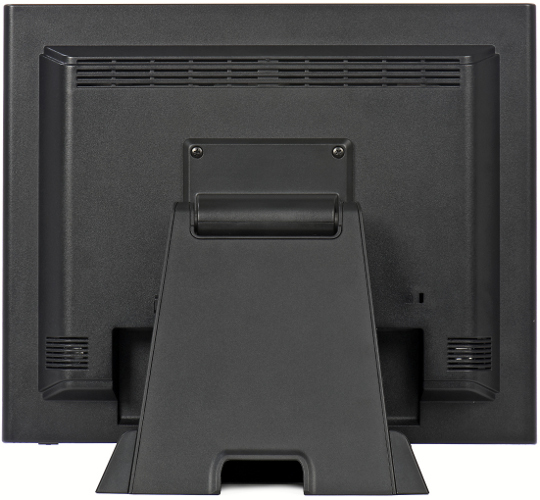

VESA
VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.
TOUCH TECHNOLOGY - SURFACE ACOUSTIC WAVE
Surface acoustic wave uses ultrasonic waves that pass over the panel. When the panel is touched, a portion of the wave is absorbed and a touch event is registered. Because the screen is covered with a glass layer this technology offers great picture performance (high contrast and colour accuracy). It is also scratch-resistant technology and therefore ideal for use in Public Places or Schools. Even if the screen is scratched, the touch function remains unaffected. Surface Acoustic Touch screens are activated with finger or a soft stylus touch.
SCRATCH RESISTANCE
Scratch resistance is essential for touch solutions used in public places and schools. This is achieved thanks to a glass overlay covering the screen. It guarantees high durability of the touch function and even more importantly the touch function remains unaffected even if the glass is scratched.
IP54
The IP Code classifies how resistant a device is to foreign objects and moisture. IP54 means that the monitor will operate in dusty conditions, and will resist splashing water.
SPEAKERS
This LED monitor is equipped with two high quality stereo speakers.
VESA
VESA mount compliance means you can easily mount the LFD to any mounting that complies with the VESA standard.
