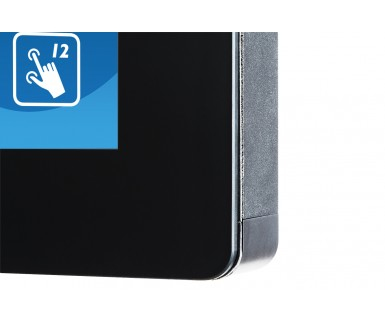

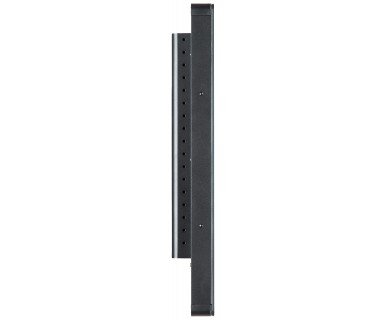

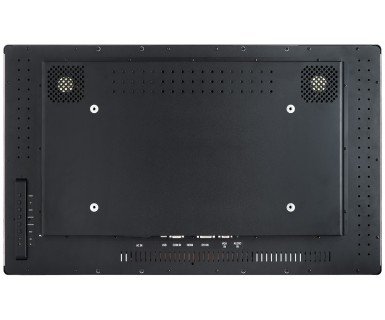

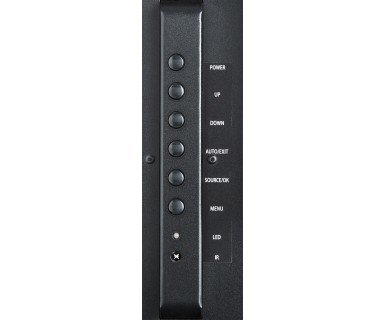

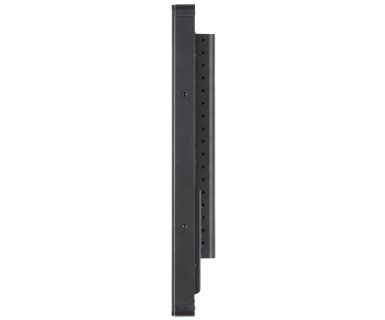

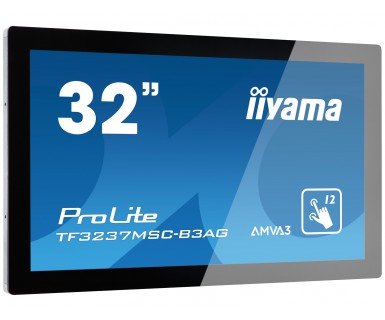

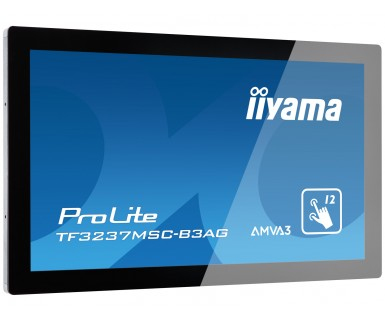

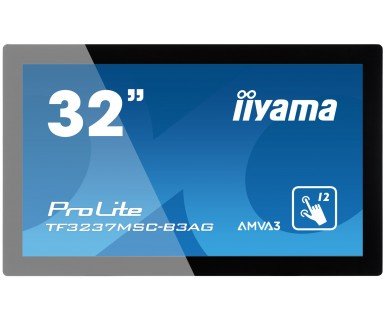

32"B 12 point Capactive Touch

Technical details
Glass protection
Display
Pixel pitch	0.364 x 0.364 mm
Contrast ratio (typical)	3000:1
Horizontal scan range	31.47 - 67.5 kHz
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Aspect ratio	16:9
Display	MVA
Vertical scan range	47 - 63 Hz
Display viewable area (HxV)	392.8 x 698.4 mm
Display diagonal	80 cm (31.5")
Display brightness	500 cd/m²
Response time	8 ms
Display resolution	1920 x 1080 pixels
Digital horizontal frequency	31.47 - 67.5 kHz
Digital vertical frequency	47 - 63 Hz
Full HD
Separate H/V sync
Display diagonal (metric)	80 cm
LED backlight
Backlight type	LED
Touchscreen technology	Capacitive
Display type	LED
Display number of colours	16.78 million colours

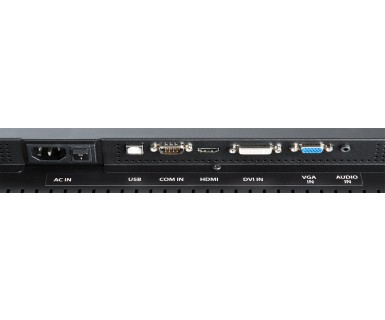

Ports & interfaces
Cables included	AC, DVI, IR, USB, VGA
USB 2.0 ports quantity	1
VGA (D-Sub) ports quantity	1
DVI-D ports quantity	1
PC Audio in
RS-232 ports	1
HDMI ports quantity	1
Weight & dimensions
Weight	17.3 kg
Height	476 mm
Width	781.5 mm
Depth	69 mm
Energy management
Power consumption (typical)	48 W
Power supply type	AC
Energy efficiency class	B
AC input frequency	50/60 Hz
AC input voltage	100 - 240 V
Ergonomics
Placement supported	Horizontal/Vertical
Panel mounting interface	400 x 200 mm
VESA mounting
Packaging content

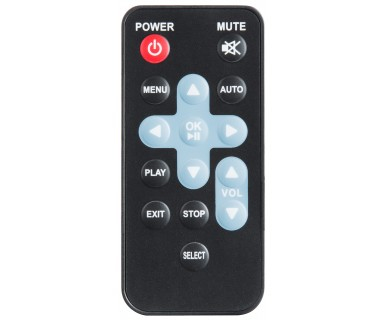

Remote control included
Quick start guide
Design
Certification	CE, TÜV, CU, IPX1, 60950-1
Product colour	Black
Glass thickness	4 mm
Performance
Plug and Play
Built-in microphone
RMS rated power	14 W
Built-in speaker(s)
On Screen Display (OSD) languages	German, Dutch, English, Spanish, French, Italian, POL, RUS
Number of loudspeakers	2
Number of OSD languages	8
Touch technology	Multi-touch
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported
Built-in camera
OmniTapps Multitouch compatibility
Touchscreen type	Capacitive
Number of simultaneous touchpoints	12
EAN	4948570115020
Warranty	3 years
Source: Icecat.biz

2" 12pt open frame touch monitor built into an eye catching bezel with edge-to-edge glass

With 1920x1080 Full HD resolution and Projective Capacitive 12 point touch technology, the ProLite TF3237MSC-B3AG delivers seamless and accurate touch response. Featuring an AMVA3 Edge LED LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with a rugged bezel and the panel withstands the 60950-1 ball drop test, making it suitable for demanding environments like table top integration. The open frame ProLite TF3237MSC-B3AG is the ideal solution for Interactive Digital Signage, Instore Retail, Kiosks and Interactive Presentations.

Ball-drop-test proof

The ball-drop-test uses a half-kilo steel ball, which is dropped onto the touch screen from a height of 1.3 meter. If the touch screen surface remains unaffected, the monitor passes the ball-drop-test for high impact resistance and durability.

Touch technology - Capacitive

This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (gloved or not) and magnetic ball.

PALM REJECTION FUNCTION

Palm rejection is a way to disregard signal from finger while using the pen mode. When you touch the screen with a pen, and your palm is touching the monitor, palm rejection is activated and the screen does not recognize touch made with the finger. If the screen is not touched for 1 second, it will automatically return to the finger mode.

AG Coating

The Anti Glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

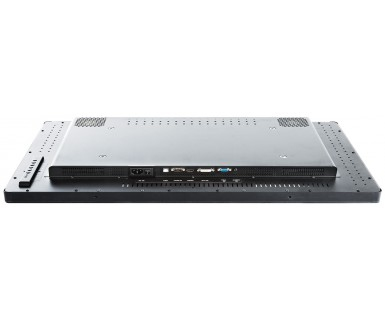

Open frame

Open frame monitors are an ideal solution for kiosk integrators and Instore Retail.
