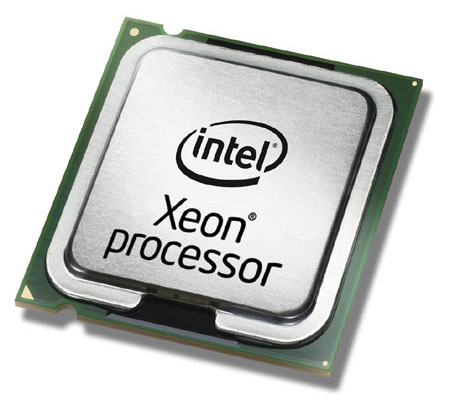

INTEL Xeon E5-1620v4 3,50Ghz LGA2011-3 10MB Cache Tray CPU

Manufacturer: INTEL
ID: CM8066002044103
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Technical details
Supported memory typesDDR4
Product typeProcessor
Processor cache10240 KB
StatusLaunched
Launch dateQ2'16
Bus type unitsGT/s
Processor brand nameIntel Xeon
Last change63903513
Product familyIntel Xeon Processor E5 v4 Family
Processor
Processor modelE5-1620V4
Processor manufacturerIntel
Processor lithography14 nm
Processor familyIntel Xeon
Boxcross
Processor socketLGA 2011
SteppingR0
Processor cores4
Processor codeSR2P6
Processor threads8
Processor operating modes64-bit
Processor boost frequency3.8 GHz
Component forServer/workstation
Processor cache10 MB
Bus typeQPI
Thermal Design Power (TDP)140 W
Processor codenameBroadwell
Processor cache typeSmart Cache
Processor seriesIntel Xeon E5-1600 v4
Memory bandwidth supported by processor (max)76.8 GB/s
Processor ARK ID92991
Cooler includedcross
Memory
ECCcheckmark
Memory channelsQuad-channel
Maximum internal memory supported by processor1536 GB
Memory types supported by processorDDR4-SDRAM
Memory clock speeds supported by processor1600,1866,2133,2400 MHz
Weight & dimensions
Processor package size45mm x 52.5mm
Operational conditions
Tcase69 °C
Packaging data
Package depth140 mm
Package height117 mm
Package width44 mm
Package typeRetail box
Other features
Maximum internal memory1500 GB
Graphics
On-board graphics cardcross
Processor special features
Intel® Identity Protection Technology (Intel® IPT)checkmark
Intel® Hyper Threading Technology (Intel® HT Technology)checkmark
Intel® Turbo Boost Technology2.0
Intel Flex Memory Accesscross
Intel® AES New Instructions (Intel® AES-NI)checkmark
Enhanced Intel SpeedStep Technologycheckmark
Intel Trusted Execution Technologycheckmark
Intel Enhanced Halt Statecheckmark
Intel VT-x with Extended Page Tables (EPT)checkmark
Intel Demand Based Switchingcheckmark
Intel TSX-NIcheckmark
Intel® Secure Keycheckmark
Intel 64checkmark
Intel® OS Guardcheckmark
Intel Virtualization Technology for Directed I/O (VT-d)checkmark
Intel Identity Protection Technology version1.00
Intel Secure Key Technology version1.00
Intel Virtualization Technology (VT-x)checkmark
Intel TSX-NI version1.00
Conflict-Free processorcheckmark
Intel Turbo Boost Max Technology 3.0cross
Features
Supported instruction setsAVX 2.0
PCI Express slots version3.0
Execute Disable Bitcheckmark
Idle Statescheckmark
Thermal Monitoring Technologiescheckmark
Scalability1S
Physical Address Extension (PAE)46 bit
CPU configuration (max)1
Embedded options availablecross
Maximum number of PCI Express lanes40
Market segmentServer
EAN0675901388207
Warranty1 year
Source: Icecat.biz

Intel Inside®. Responsive Digital Services Outside.
The Intel® Xeon® processor E5 v4 family brings an evolutionary leap in performance and capabilities to your next-gen data center running on software defined infrastructure, supporting an agile cloud architecture and a highly-efficient traditional workload management.

The Intel® Xeon® processor E5-1600 v4 product family provides a professional, high-performance workstation platform ideal for efficient multitasking, advanced model generation, and complex applications.

Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5-2600 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.

Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.

Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.

Build Your Agile Enterprise with Intel
Intel® Resource Director Technology
Use orchestration and automation features within Intel® RDT to help you better manage shared platform resources dynamically across compute, network, and storage.

Intel® Transactional Synchronization Extensions
Boost performance for online transaction processing (OLTP) and other multi-threaded workloads that are currently slowed by memory locking with Intel® TSX.

Intel® Advanced Vector Extensions 2
Implement Intel® Advanced Vector Extensions 2 (Intel® AVX2) to optimize overall performance for heterogeneous workloads running concurrently, even for applications that don’t use Intel AVX.

Innovative Technology for Diverse Applications and Workloads
Enterprise Cloud
Accelerate your path to a highly efficient, on-premises cloud deployment with innovation based on Intel® architecture.

Software-Defined Infrastructure (SDI)
Use proven, reliable, and innovative Intel technology as the foundation for software-defined infrastructure across your data center.

A Holistic HPC Solution
Fuel your insight with future-ready performance from the Intel® Scalable System Framework (SSF).

High-Performance Computing
Get the performance you need for creating balanced, high-performance computing systems at any scale.
