No price development information for this product.

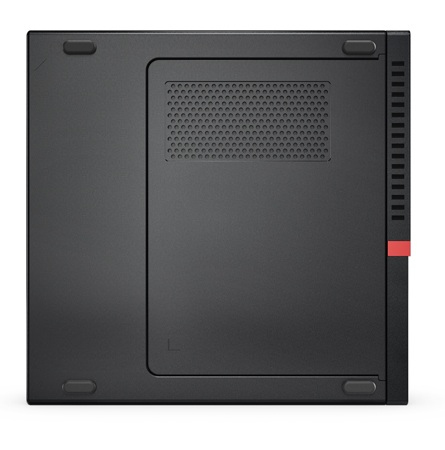

Lenovo ThinkCentre M910q 10MV | i5-7500T | 8GB | 256GB SSD | HD Graphics 630 | WLAN | WIN10 PRO
This product is end of life or currently not available.
Technical details | |
Device type | SSD |
Processor | |
Processor model | i5-7500T |
Number of processors installed | 1 |
Processor lithography | 14 nm |
Processor family | Intel Core i5 |
Processor socket | LGA 1151 (Socket H4) |
Processor cores | 4 |
System bus rate | 8 GT/s |
Processor threads | 4 |
PCI Express slots version | 3.0 |
Processor operating modes | 64-bit |
Processor boost frequency | 3.30 GHz |
Processor cache | 6 MB |
Tjunction | 80 °C |
Bus type | DMI3 |
PCI Express configurations | 2x8,1x8+2x4 |
Processor frequency | 2.70 GHz |
Thermal Design Power (TDP) | 35 W |
Processor codename | Kaby Lake |
Maximum number of PCI Express lanes | 16 |
Processor cache type | Smart Cache |
Configurable TDP-down frequency | 1700 MHz |
Maximum internal memory supported by processor | 64 GB |
Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
Memory channels supported by processor | Dual |
ECC supported by processor | |
Memory voltage supported by processor | 1.35 V |
Conflict-Free processor | |
Memory | |
Internal memory type | DDR4-SDRAM |
Memory slots | 2x SO-DIMM |
Maximum internal memory | 32 GB |
Memory clock speed | 2400 MHz |
Memory layout (slots x size) | 1 x 8 GB |
Internal memory | 8 GB |
Optical drive | |
Optical drive type | N |
Ports & interfaces | |
Serial ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
Microphone in | |
DVI port | |
HDMI ports quantity | 1 |
DisplayPorts quantity | 2 |
Combo headphone/mic port | |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
Weight & dimensions | |
Weight | 1.32 kg |
Height | 34.5 mm |
Width | 179 mm |
Depth | 182.9 mm |
Energy management | |
Power supply | 65 W |
Power supply input voltage | 100 - 240 |
Power supply input frequency | 50/60 |
Networking | |
Wi-Fi standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
Cabling technology | 10/100/1000Base-T(X) |
Bluetooth version | 4.1 |
Ethernet LAN | |
Bluetooth | |
Wi-Fi | |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Storage | |
Drive capacity | 256 GB |
Total storage capacity | 256 GB |
Card reader integrated | |
SSD interface | Serial ATA III |
Number of SSDs installed | 1 |
Storage media | SSD |
Certificates | |
Certification | ErP Lot 3, GREENGUARD, TCO Certified Desktops 5.0, MIL-STD-810G |
Energy Star certified | |
RoHS compliance | |
Operating system/software | |
Operating system installed | Windows 10 Pro |
Operating system architecture | 64-bit |
Packaging content | |
Display included | |
Mouse included | |
Manual | |
Drivers included | |
Keyboard supplied | |
Speakers supplied | |
Design | |
Chassis type | 1L sized PC |
Product colour | Black |
Intel segment tagging | Enterprise, Professional |
Graphics | |
On-board graphics card model | Intel HD Graphics 630 |
Discrete graphics card model | Not available |
On-board graphics card | |
On-board graphics card base frequency | 350 MHz |
On-board graphics card dynamic frequency (max) | 1100 MHz |
On-board graphics card ID | 0x5912 |
Maximum on-board graphics card memory | 64 GB |
Number of displays supported (on-board graphics) | 3 |
On-board graphics card DirectX version | 12.0 |
On-board graphics card OpenGL version | 4.4 |
Discrete graphics card | |
Processor special features | |
Supported instruction sets | AVX 2.0 |
Intel® Identity Protection Technology (Intel® IPT) | |
Intel® vPro™ Technology | |
Intel® Turbo Boost Technology | 2.0 |
Intel® Quick Sync Video Technology | |
Intel® InTru™ 3D Technology | |
Intel® Clear Video HD Technology (Intel® CVT HD) | |
Intel® AES New Instructions (Intel® AES-NI) | |
Enhanced Intel SpeedStep Technology | |
Execute Disable Bit | |
Idle States | |
Thermal Monitoring Technologies | |
Intel Trusted Execution Technology | |
Scalability | 1S |
CPU configuration (max) | 1 |
Intel Enhanced Halt State | |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | |
Intel VT-x with Extended Page Tables (EPT) | |
Embedded options available | |
Intel TSX-NI | |
Intel® Secure Key | |
Thermal solution specification | PCG 2015A |
Intel 64 | |
Intel Stable Image Platform Program (SIPP) | |
Intel® OS Guard | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel Clear Video Technology | |
Intel Software Guard Extensions (Intel SGX) | |
Intel Virtualization Technology (VT-x) | |
Processor package size | 37.5 x 37.5 |
Processor ARK ID | 97121 |
Performance | |
Motherboard chipset | Intel Q270 |
Password protection type | HDD, Power on |
Product type | Mini PC |
Password protection | |
EAN | 0191376275588 |
Warranty | 1 year |
Lenovo ThinkCentre M910 Tiny on äärimmäisen pieni ja monikäyttöinen pöytätietokone hyvällä suorituskyvyllä, luotettavuudella sekä hallintaominaisuuksilla. M910 Tiny on mahdollista sijoittaa hyvin tilaa säästävästi esimerkiksi pöydän alapuolelle, näytön taakse, seinälle tai vaikkapa suoraan projektin alle. Pieneen 1 litran koteloon on saatu pakattua mukavasti suorituskykyä ja liitäntöjä. ThinkCentre M910 on varustettu Intelin 7. sukupolven suorittimilla, DDR4-muisteilla sekä mallista riippuen huippunopealla PCIe NVMe SSD-levyillä. Tämän lisäksi M910 Tiny sisältää tuen Intelin huippunopealle Optane-muistiteknologialle. Vakioliitäntöihin kuuluu esimerkiksi kuusi USB 3.1 Gen 1 -liitäntää sekä kaksi DisplayPort -liitäntää, joita voidaan tarvittaessa lisätä. M910 Tinylle on saatavana myös erillinen pölysuodatin pölyisempiin tiloihin. Hallittavuutta tuetaan Intel AMT 11.0 -teknologian sekä vPro-teknologian avulla. Tekniset tiedot: Kotelo: Erittäin pienikokoinen (Tiny) Suoritin: Intel Core i5-7500T (2,7 - 3,3 GHz, 6 Mt, 4 ydintä, 35 W, vPro) Muisti: 8 Gt (1x8) DDR4 2400 MHz SO-DIMM, 2 muistikantaa, maks. 32 Gt Piirisarja: Intel Q270 Näytönohjain: integroitu Intel HD Graphics 630 Kiintolevy: 256 Gt SSD (M.2 PCIe NVMe Opal) Optinen asema: Ei Verkko-ominaisuudet: Gigabit Ethernet, WiFi 802.11ac (2x2), Bluetooth 4.1 Liitännät: 6 x USB 3.1 Gen1 (2 edessä / 4 takana), 2 x DisplayPort, RJ-45, kuuloke, mikrofoni, HDMI ja sarjaportti lisänä Muistikortinlukija: ei Turvaominaisuudet: TPM 2.0 -piiri (TCG-sertifioitu), lukkoliitäntä Hallittavuus: Intel Active Management Technology 11.0 Käyttöjärjestelmä: Windows 10 Pro 64-bit Muuta: USB-näppäimistö, pystyteline Virtalähde: 65 W 88% Mitat: 182,9 x 179 x 34,5 mm Paino: n. 1,32 kg Takuu: 36 kk onsite Tarvitsetko Word, Excel, Powerpoint ja Outlook ?sovelluksia? Muista tällöin lisätä myös Office ostoskoriin. Ostaessasi Officen yhdessä tietokoneen kanssa, säästät 20 euroa.
