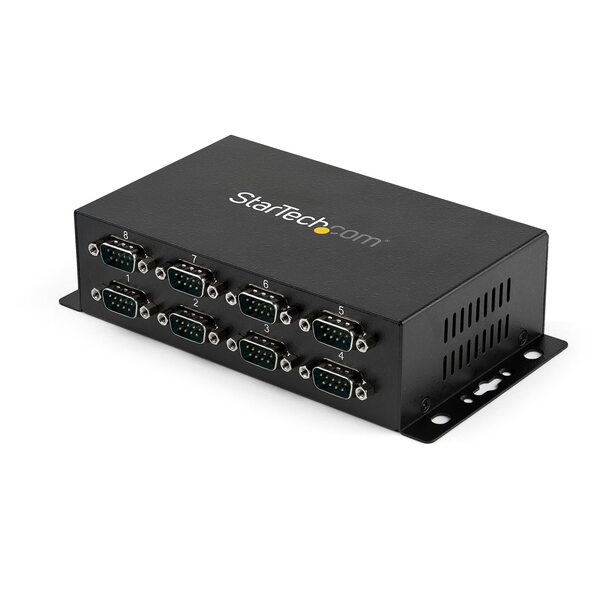

StarTech.com ICUSB2328 - 8-Port USB to Serial Adapter Hub, Black
Manufacturer: STARTECH
ID: ICUSB2328
31390€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Specifications
Description
Store availability
Delivery
Price development
Manuals
| Technical details | |
| Compliance certificates | CE, RoHS |
| System requirements | |
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 98SE, Windows CE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 13.0 Ventura |
| Linux operating systems supported |  |
| Ports & interfaces | |
| Ports quantity | 8 |
| Connectivity technology | Wired |
| DC-in jack | |
| Host interface | USB 2.0 Type-B |
| RS-232 ports | 8 |
| USB version | 2.0 |
| Hub interfaces | Serial |
| USB ports quantity | 1 |
| Weight & dimensions | |
| Weight | 860 g |
| Height | 26 mm |
| Width | 66.5 mm |
| Depth | 150 mm |
| Energy management | |
| Output voltage | 5 V |
| USB powered | |
| Output current | 1 A |
| Power plug type | Type M |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating temperature (T-T) | 0 - 55 °C |
| Networking | |
| Maximum data transfer rate | 0.9216 Mbit/s |
| Ethernet LAN |  |
| Bluetooth | |
| Wi-Fi | |
| Packaging data | |
| Package weight | 840 g |
| Package depth | 285 mm |
| Package height | 52 mm |
| Package width | 159 mm |
| Packaging content | |
| Cables included | Serial, USB |
| Manual | |
| Drivers included | |
| Other features | |
| Chipset | FTDI - FT232RL |
| Cable length | 1.83 m |
| Ports quantity | 8 |
| Design | |
| Internal | |
| Chipset | FTDI - FT232RL |
| Form factor | External |
| Plug and Play | |
| Product colour | Black |
| Performance | |
| Baud rate | 921.6 Kbit/s |
| Data bits | 7, 8 |
| FIFO (First In, First Out) | 256 B |
| Features | |
| Certification | CE, FCC |
| Plug and Play | |
| Product colour | Silver |
| Housing material | Plastic |
| Connector 2 | DB9 |
| Connector 1 gender | Female |
| Connector 2 gender | Male |
| Logistics data | |
| Master (outer) case height | 426 mm |
| Master (outer) case width | 600 mm |
| Master (outer) case length | 520 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Sustainability | |
| Sustainability compliance | |
| Sustainability certificates | CE, RoHS |
| EAN | 0065030825825 |
| Warranty | 2 years |
The StarTech ICUSB2328 is an 8-port USB 2.0 to RS-232 DB9 adapter hub that connects computers to legacy equipment. It uses a standard USB Type-B host interface and expands a single host connection into eight independent RS-232 DB9 male serial ports. The hub supports a maximum data transfer rate of 0.9216 Mbit/s across its serial interfaces. Designed specifically for serial integration, the adapter does not include Wi-Fi, Ethernet, or Bluetooth connectivity.
The device is plug-and-play, which avoids the need for complex manual configuration. It is compatible with Linux, macOS up to version 13.0, and Windows versions from 98SE through Windows 10. The black chassis measures 150 mm deep, 66.5 mm wide, and 26 mm high. Its compact size allows it to fit easily into crowded workspaces. This adapter allows users to integrate older RS-232 hardware into modern IT infrastructure.
Key Features:- Integrated FTDI FT232RL chipset for data management across all ports
- Powered directly via the USB connection
- Includes a 1.83 m cable for flexible placement
- Weighs 860 g, providing stability when fully connected
- Operates at 5 V for stable peripheral connections
Multitronic Vaasa: 0 pcs
Estimated delivery: 17.09 - 20.09
Estimated delivery: 17.09 - 20.09
Today: 10:00 - 18:00
Multitronic Pietarsaari: 0 pcs
Estimated delivery: 17.09 - 20.09
Estimated delivery: 17.09 - 20.09
Today: 09:00 - 17:00
Multitronic Jyväskylä: 0 pcs
Estimated delivery: 17.09 - 20.09
Estimated delivery: 17.09 - 20.09
Today: 10:00 - 17:00
Multitronic Lappeenranta: 0 pcs
Estimated delivery: 17.09 - 20.09
Estimated delivery: 17.09 - 20.09
Today: 10:00 - 18:00
Multitronic Mariehamn: 0 pcs
Estimated delivery: 17.09 - 20.09
Estimated delivery: 17.09 - 20.09
Today: 10:00 - 17:00
Fetch from the shop
Estimated delivery time: 17.09 - 20.09
Estimated delivery time: 17.09 - 20.09
Posti: Parcel lockers and service points
Estimated delivery time: 17.09 - 19.09
Estimated delivery time: 17.09 - 19.09
Posti: Postal package
Estimated delivery time: 18.09 - 20.09
Estimated delivery time: 18.09 - 20.09
Matkahuolto: Parcel lockers and service points
Estimated delivery time: 18.09 - 20.09
Estimated delivery time: 18.09 - 20.09
Posti: Doorstep delivery
Estimated delivery time: 18.09 - 19.09
Estimated delivery time: 18.09 - 19.09
Matkahuolto: Business Parcel
Estimated delivery time: 17.09 - 20.09
Estimated delivery time: 17.09 - 20.09
Matkahuolto: Home Parcel
Estimated delivery time: 17.09 - 20.09
Estimated delivery time: 17.09 - 20.09
Posti: Home delivery
Estimated delivery time: 18.09 - 19.09
Estimated delivery time: 18.09 - 19.09
- manual pdf (English)
- leaflet (Svenska)
- leaflet (English)
The above technical details are for reference only and may change without notice. We reserve the right to correct printing errors and use illustrations for guidance. Some text may be auto-generated or machine-translated, which could lead to inaccuracies.
