No price development information for this product.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Display | |
Contrast ratio (typical) | 1200:1 |
Horizontal scan range | 31 - 83 kHz |
Viewing angle, horizontal | 176° |
Viewing angle, vertical | 176° |
Vertical scan range | 24 - 70 Hz |

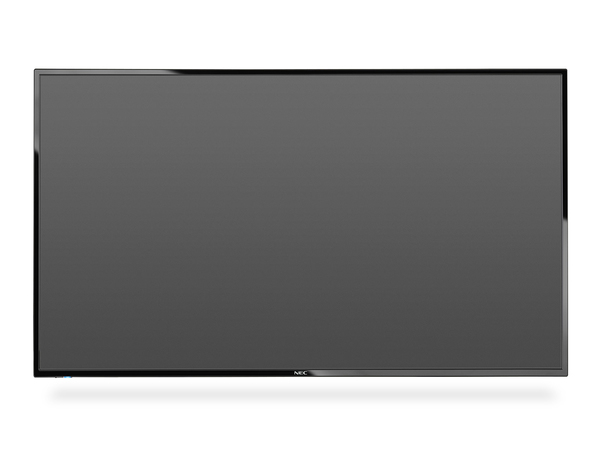

Display diagonal | 109.2 cm (43") |
Display brightness | 350 cd/m² |
Response time | 8 ms |
Display resolution | 1920 x 1080 pixels |
Display diagonal (metric) | 109 cm |
Supported graphics resolutions | 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 800 (WXGA),1920 x 1080 (HD 1080) |
Supported video modes | 480i,480p,576i,576p,720p,1080i,1080p |
Touchscreen | |

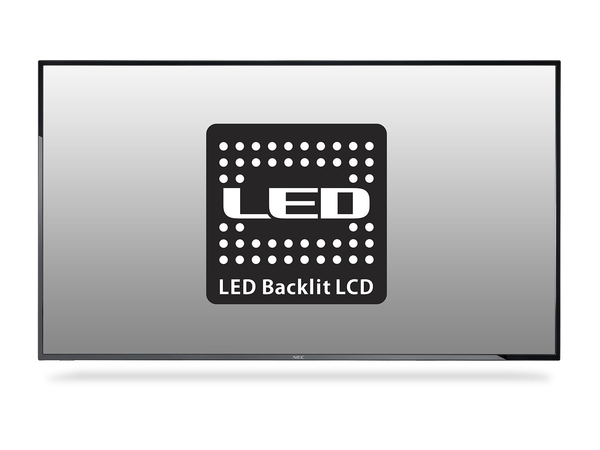

LED backlighting type | Direct-LED |
Display type | LED |
Native aspect ratio | 16:9 |
HD type | Full HD |
Active display area (W x H) | 941 x 529 mm |
Display number of colours | |
Audio | |
RMS rated power | 20 W |
Built-in speaker(s) | |
Number of speakers | 2 |
Ports & interfaces | |
Ethernet LAN | |
DVI port | |
Composite video in | 1 |
PC Audio in | |
Component video (YPbPr/YCbCr) in | 1 |

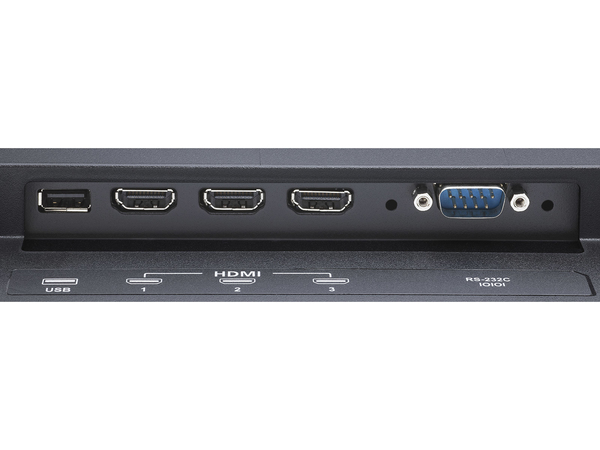

HDMI ports quantity | 3 |
Remote (IR) input | 1 |
VGA (D-Sub) input ports | 1 |
USB ports quantity | 1 |
RS-232C | |
Weight & dimensions | |
Weight | 8.55 kg |
Height | 559 mm |
Width | 968 mm |

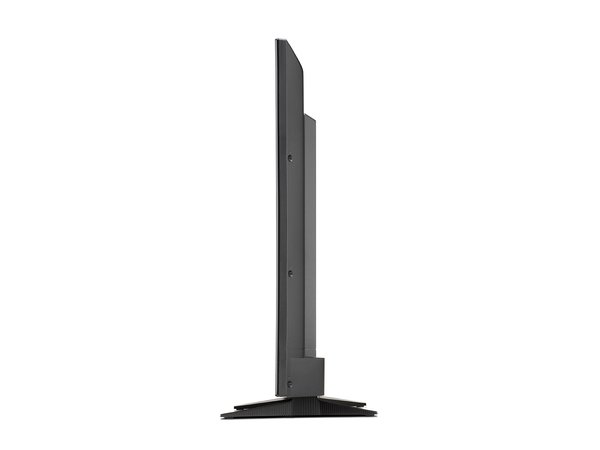

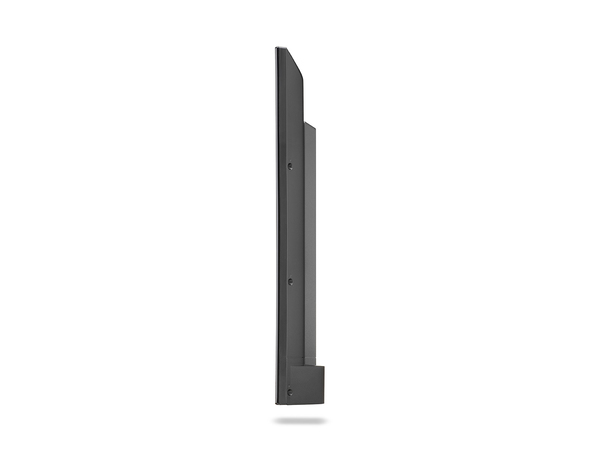

Depth | 77 mm |
Energy management | |
Power consumption (typical) | 58 W |
Energy Star certified | |
Power consumption (standby) | 0.5 W |
Energy efficiency class | A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Operational conditions | |
Operating altitude | 0 - 2000 m |
Operating relative humidity (H-H) | 10 - 80% |
Storage temperature (T-T) | -10 - 60 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 85% |
Packaging data | |
Remote control included | |
Cables included | AC,VGA |
Manual | |
Batteries included | |
Other features | |

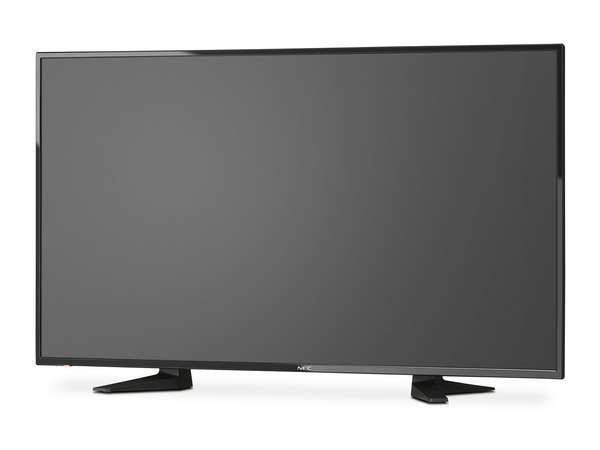

Dimensions (W x D x H) with stand | 968 x 255 x 596 mm |
Video compression formats | H.264,MPEG1,MPEG2 |
Peak luminance ratio | 65% |
Panel type | S-IPS |
Design | |
Certification | C-tick; CE; Energy Star 7.0; FCC B; PSB; REACH; SASO; UL/C-UL/CSA |
Product colour | Black |

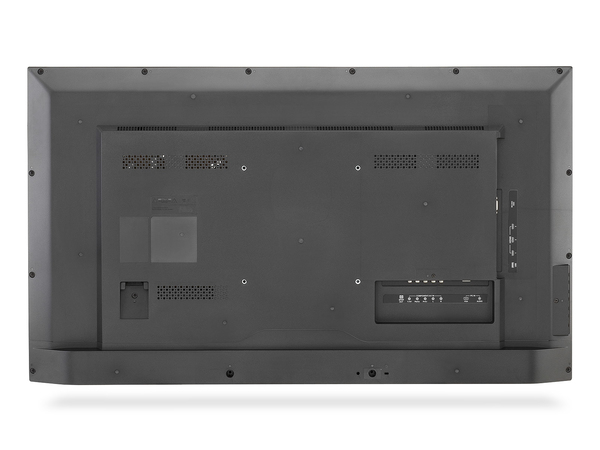

Panel mounting interface | 200 x 200 mm |
Product design | Digital signage flat panel |
RoHS compliance | |
Bezel width (side) | 1.04 cm |
Bezel width (top) | 1.04 cm |
Bezel width (bottom) | 1.34 cm |
VESA mounting | |
Orientation | Horizontal |
Performance | |
TV tuner integrated | |
Operating hours (hours/days) | 12/7 |
Computer system | |
Audio formats supported | AC3 |
Image formats supported | JPG |
Video formats supported | AVI,H.264,MKV,MP4,MPEG,MPEG1,MPEG2,MPEG2-PS,MPEG2-TS,MPG |
Computer system | |
EAN | 5028695113763 |
Warranty | 3 years |
Source: Icecat.biz |
Enter the world of professional signage
In a digitised world, signage no longer is static. Information transfer via digital posters and information boards are common methods of information transfer. With E436 you can boost your business at low TCO, but with high reliability. Information where the audience stands close is perfectly transferred on this 43’’ screen. With the integrated media player, the display is designed for simple signage usage directly from a USB drive and once installed starts playing the content automatically at a certain time with the embedded autostart time schedule function. In this way the display helps you saving time and money. The 43’’ display of the 6th generation of our E Series is the perfect choice for essential applications in Retail Signage, Restaurants and Manufacturing & Engineering.
Benefits
- Reduced Installation and Operating Costs – highly energy efficient LED backlit display ensures low power consumption, longer backlight lifetime and lighter design for easy transportation, mounting and integration.
- Slim Design and Integrated Speakers – the aesthetic design is pleasing to the eye and enables easy, low cost installation.
- Effortless content playback – the integrated USB media player supports various image video file formats for effortless and standalone content playback.
- Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.
- Professional integration – enriched with essential RS232 functionality, IR and button lock out as well as digital audio output S/PDIF, the display can easily be integrated into professional applications in public environments.
- Standalone operation – the display is designed for straightforward standalone operation due to integrated USB media player, speakers and scheduling functionality.
