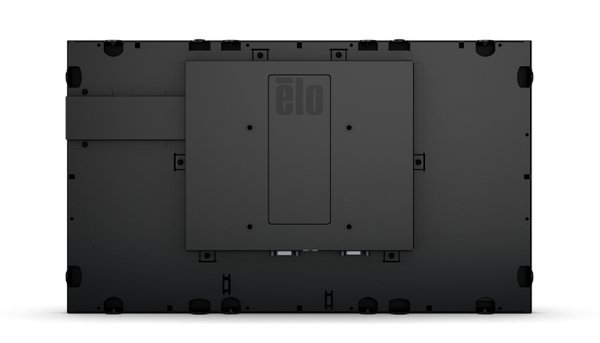

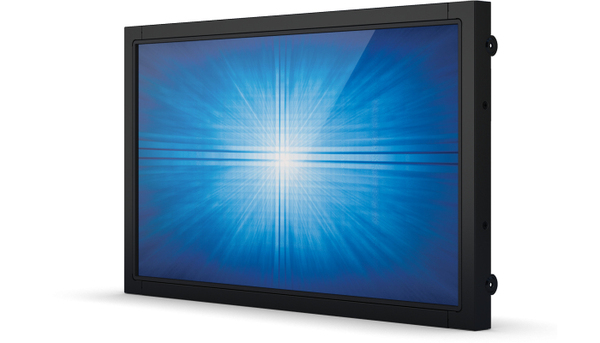

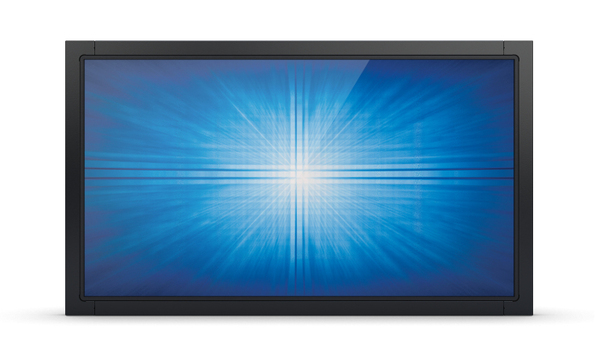

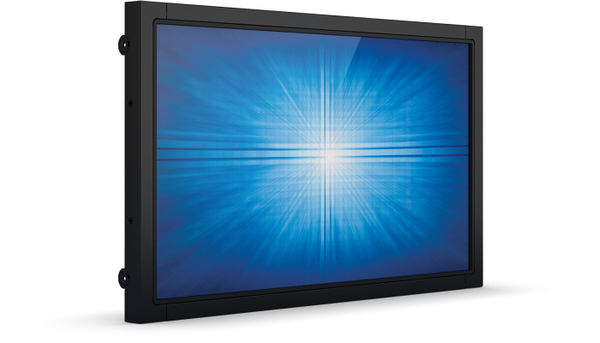

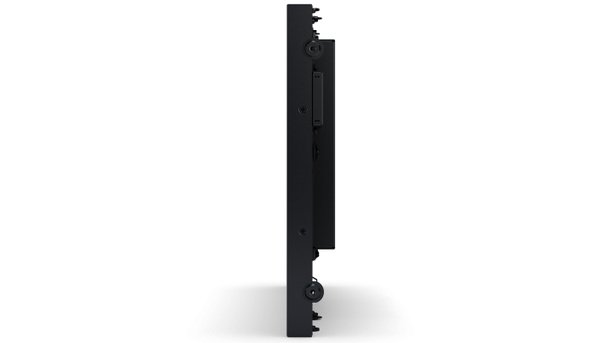

2094L, 19.5", IntelliTouch

Technical details
Full HD
Compliance certificates	RoHS
Display
Contrast ratio (typical)	3000:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Display diagonal	49.5 cm (19.5")
Display brightness	225 cd/m²
Response time	20 ms
Display resolution	1920 x 1080 pixels
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800 (WXGA), 1360 x 768 (WXGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Touchscreen
LED backlight
Touchscreen technology	Surface acoustic wave
Display technology	LCD
HD type	Full HD
Panel type	TFT
Display number of colours	16.78 million colours
Ports & interfaces
HDMI ports quantity	1
DisplayPorts quantity	1
Energy management
Power consumption (typical)	17.6 W
Power consumption (off)	0.5 W
Power consumption (standby)	1.5 W
AC input frequency	50 Hz
AC input voltage	230 V
Operational conditions
Operating relative humidity (H-H)	20 - 80%
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 35 °C
Storage relative humidity (H-H)	10 - 95%
Packaging data
Package weight	6.4 kg
Package depth	185 mm
Package height	376 mm
Package width	575 mm
Certificates
Certification	RCM; cUL, IC; CCC; CE TUV; VCCI; KCC; CoC; BSMI; UL, FCC; CB; WEEE, IMERC
Packaging content
Remote control included
Cables included	HDMI, USB, VGA
Other features
Aspect ratio	16:9
Display viewable area (HxV)	434.88 x 238.68 mm
Power supply type	AC
Built-in microphone
Digital horizontal frequency	30 - 82 kHz
Digital vertical frequency	50 - 75 Hz
Quick start guide
Built-in camera
Weight (without stand)	4.7 kg
Height (without stand)	280 mm
Depth (without stand)	43 mm
Design
Product colour	Black
Panel mounting interface	100 x 100 mm
VESA mounting
Screen shape	Flat
Performance
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Number of OSD languages	8
Features
Wall mountable
Logistics data
Harmonized System (HS) code	85285210
EAN	0815335025891
Warranty	3 years
Source: Icecat.biz

The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users’ attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.

Touch ready.
Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.

Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.
- Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
- Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
- 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
- Display Port and VGA video interfaces
