Asus Vivo Mini UN45 | Intel Pentium N3700 1.60 GHz | Intel HD | No OS

Manufacturer: ASUS
ID: 90MS00L1-M00650
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Processor
Processor modelN3700
Processor lithography14 nm
Processor familyIntel Pentium
Processor cores4
Processor threads4
Built-in processorcheckmark
Processor boost frequency2.4 GHz
Processor frequency1.6 GHz
Thermal Design Power (TDP)6 W
Memory
Maximum internal memory8 GB
Supported memory clock speeds1600 MHz
Supported memory typesDDR3
Memory slots typeDIMM
Internal memory0GB
Number of memory slots2
Audio
Intel® High Definition Audio (Intel® HD Audio)checkmark

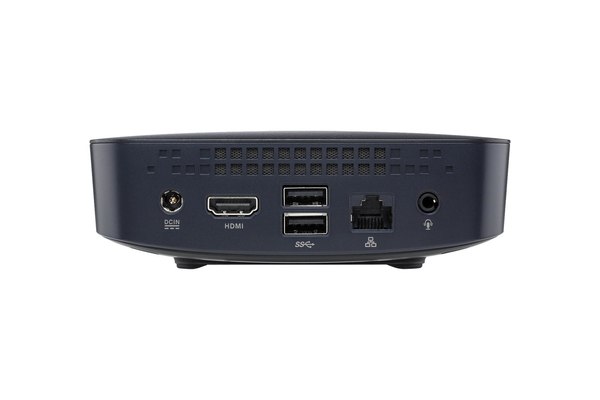

Ports & interfaces
Ethernet LAN (RJ-45) ports1
DC-in jackcheckmark
HDMI ports quantity1
Combo headphone/mic portcheckmark
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Weight & dimensions
Height42 mm
Width131 mm
Depth131 mm
Energy management
Power supply typeExternal AC adapter
Networking
Wi-Fi standards802.11b,Wi-Fi 4 (802.11n)
Bluetooth version4.0
Ethernet LANcheckmark
Bluetoothcheckmark
Wi-Ficheckmark
Storage
Total storage capacity0GB
Storage drive interfaceM.2
Storage mediacross
Supported storage drive typesSSD
Operating system/software
Operating system installedcross
Expansion slots
PCI Express slots version2.0
Design
CertificationBSMI/CE/FCC/UL/CCC/Energy Star/WiFi/RF/VCCI
Chassis type0.73L sized PC
Cable lock slotcheckmark
Product colourBlue
Product typeMini PC barebone
Cable lock slot typeKensington
Graphics
Graphics card familyIntel
On-board graphics card modelIntel HD Graphics
On-board graphics cardcheckmark
Processor special features
Intel® Identity Protection Technology (Intel® IPT)checkmark
Intel® Anti-Theft Technology (Intel® AT)cross
Intel® Smart Response Technologycross
Intel Smart Connect Technologycross
Intel® Hyper Threading Technology (Intel® HT Technology)cross
Intel® Turbo Boost Technologycross
Intel® Quick Sync Video Technologycheckmark
Intel® InTru™ 3D Technologycross
Intel® Wireless Display (Intel® WiDi)checkmark
Intel® Clear Video HD Technology (Intel® CVT HD)checkmark
Intel® Insider™cross
Intel® AES New Instructions (Intel® AES-NI)checkmark
Enhanced Intel SpeedStep Technologycheckmark
Execute Disable Bitcheckmark
Idle Statescheckmark
Thermal Monitoring Technologiescheckmark
Intel Trusted Execution Technologycross
Intel VT-x with Extended Page Tables (EPT)checkmark
Embedded options availablecheckmark
Intel Rapid Storage Technologycross
Intel® Small Business Advantage (Intel® SBA)cross
Intel® Secure Keycheckmark
Intel 64checkmark
Intel Stable Image Platform Program (SIPP)cross
Intel® OS Guardcross
Intel Virtualization Technology for Directed I/O (VT-d)cross
Intel Clear Video Technologycheckmark
Motherboard
Processor socketBGA 1170
Number of processors supported1
EAN4712900603088
Warranty2 years
Desktop performance, miniaturized.
VivoMini UN45 crams all the business functions you need in a compact, lightweight mini PC so you can free up precious desktop space for a neat and tidy workstation. It combines full PC functionality with incredible energy efficiency, and operates in total silence* – making it ideal for quiet environments.

VivoMini UN45 delivers desktop-like processing performance, and provides multi-display and 4K/UHD display support, a M.2 solid-state drive for quick data access, and extensive I/O connectivity. The ASUS VivoMini UN45 even features ASUS Business Manager software – a suite of tools to aid small business owners. Easy system management and maintenance make VivoMini UN45 ideal for use as office PCs, digital signage, and information kiosks.

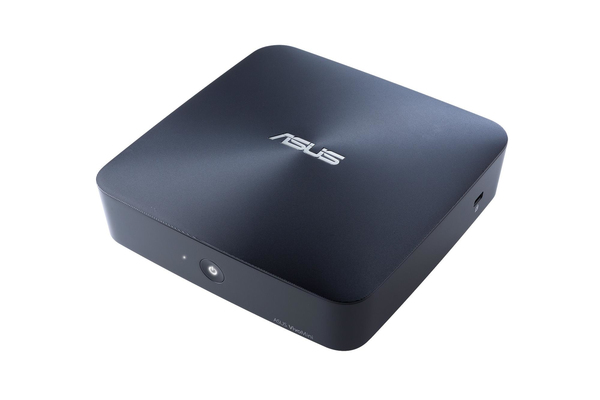

Elegantly-crafted for the business world
VivoMini UN45 has an elegant, lightweight design that measures just 131 x 131 x 42mm. VivoMini UN45 has rounded corners and the iconic Zen-inspired concentric circle finish, and is available in Midnight Blue – making it a striking addition to any office. It can be VESA-mounted on the back of a display for a tidy workstation.

Intel processors and 4K/UHD visuals
VivoMini UN45 is powered by the latest quad-core or dual-core Intel® Celeron® processors and gives you 4K/UHD display support for exceptional visuals – making it ideal for digital signage or kiosk displays.

Multi-display productivity
VivoMini UN45 works with any display, HDMI TV, or projector to give you a multitude of display options, and is even able to wirelessly stream content to maximize your computing experience. It also supports up to three independent displays via HDMI, mini DisplayPort++, and USB to give you more onscreen space for multitasking. Now you can spread out your various work windows, mirror content, or extend a single window across multiple displays.

Extensive connectivity options and fast charging
VivoMini UN45 features a total of four USB 3.0 ports, including easy-access side-mounted ports with BC1.2 to charge your mobile devices in half the time. VivoMini UN45 also comes with one audio output jack, a Kensington lock, along with HDMI and Mini DisplayPort++.

ASUS Desktops – most recommended Windows desktop brand
Innovation, design and reliability are at the heart of all ASUS computers. ASUS Desktops have won the PCMag Readers' Choice for Overall Satisfaction for four years in a row.
