This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
ATX Power connector (24-pin) | |
Floppy disk drive connector | |
PCI Express power connectors (6-pin) | 2 |
Motherboard power connector | 24-pin ATX |
Floppy drive power connector | 1 |
Number of SATA power connectors | 10 |
EPS power connector (8-pin) | |
CPU power connector (4+4 pin) | |
PCI Express power connectors (6+2 pin) | 4 |
Cabling type | Modular |
Motherboard power cable length | 60 cm |
SATA power cable length | 550,650,850 mm |
CPU power cable length | 70 cm |
PCI Express power cable length | 85 cm |
Weight & dimensions | |
Weight | 3.63 kg |
Height | 85 mm |
Width | 150 mm |
Depth | 165 mm |
Energy management | |
Input current | 10 A |
Nominal power | 850 W |
Efficiency | 94% |
Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
Combined power (+3.3V) | 100 W |
Combined power (+12V) | 849.6 W |
Combined power (+5V) | 100 W |
Combined power (-12V) | 6 W |
Combined power (+5Vsb) | 12.5 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V) | 70.8 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.5 A |
Max output current (+5Vsb) | 2.5 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Total power | 850 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Design | |
Product colour | Black |
Number of fans | 1 fan(s) |
On/off switch | |
Fan diameter | 14 cm |
Fan location | Top |
Performance | |
Certification | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS |
Mean time between failures (MTBF) | 100000 h |
Purpose | PC |
Bearing technology | Ball bearing |
Country of origin | Japan |
80 PLUS certification | 80 PLUS Platinum |
Power supply unit (PSU) form factor | ATX |
EAN | 4250812408549 |
Warranty | 1 year |
- Unbeatable 10 Year Warranty and unparalleled EVGA Customer Support
- Highest quality Japanese brand capacitors ensure long-term reliability
- Fully Modular to reduce clutter and improve airflow
- NVIDIA SLI & AMD Crossfire Ready
- Double Ball Bearing fan for exceptional reliability and quiet operation
- Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection)
- 80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
EVGA SuperNOVA 850, 750 and 650 P2 Power Supplies
Platinum Performance
The unbeatable performance of the EVGA SuperNOVA P2 power supply line is now available in 850, 750 and 650 watt versions. Based on the award winning P2 power supplies, these units feature 80 Plus Platinum rated efficiency, and clean, continuous power to every component. The ECO Control Fan system offers fan modes to provide absolutely zero fan noise during low to medium load operations. Backed by an award winning 10 year warranty, and 100% Japanese capacitor design, the EVGA SuperNOVA 850, 750 and 650 P2 power supplies offer unbeatable performance at an unbeatable value.

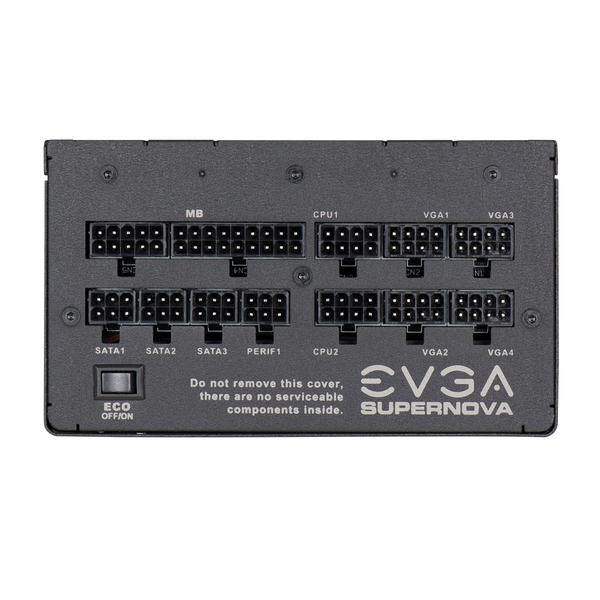

100% Modular Design
FULL modularity enables you to use only the cables you need, helping to improve case airflow, eliminate unnecessary wires, and best of all, reduce cable clutter.
Whisper Silent
The EVGA ECO mode feature ensures that the power supply stays completely silent during low to medium loads. The fan does not spin until necessary, allowing for completely silent operation!
Unbeatable Performance
94% efficiency or higher under typical loads and highest quality Japanese brand capacitors ensure long-term reliability.
Single +12V Rail
A single +12V rail offers the best power output, rail stability and compatibility with the latest hardware. EVGA SuperNOVA 850/750/650 P2 provides up to 70.8A/62.4A/54.1A respectively on a single rail!
LLC Resonant Circuit Layout
Full DC to DC, LLC resonant circuit design improves efficiency.

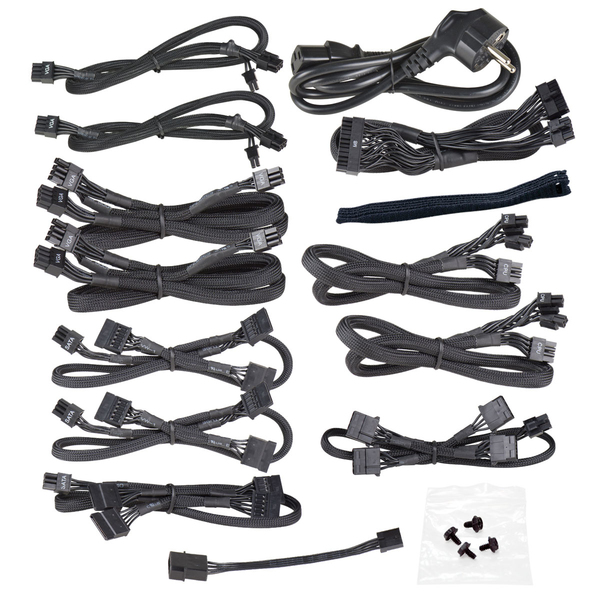

Fully Modular
Fully modular design allows every single cable to be removed from the power supply for ease of installation and removal. You can also leave off unnecessary cables to reduce case clutter and maximize case airflow.
NVIDIA SLI Ready
Run multiple NVIDIA graphics cards for the ultimate gaming experience. The SuperNOVA 850/750/650 P2 gives you the power you need to drive these demanding systems and achieve the best overclocks.
Highest Quality Japanese Nippon Chemi-Con Solid State Capacitors
Get the most reliability and greatest performance with the use of the highest possible quality Japanese solid state capacitors.
Platinum Rated Efficiency
80 Plus certification ensures your power supply isn’t wasting power and turning it into excess heat. Under typical load this power supply is 94% efficient or higher.
