Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| ATX power connector (20+4 pin) |  |
| CPU power connector (4+4 pin) | |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Modular |
| Weight & dimensions | |
| Weight | 1.5 kg |
| Height | 86 mm |
| Width | 140 mm |
| Depth | 150 mm |
| Energy management | |
| Input current | 4 - 8 A |
| Nominal power | 550 W |
| Efficiency | 90% |
| Hold time | 16 ms |
| Power protection features | Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 540 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 550 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging data | |
| Package depth | 195 mm |
| Package height | 130 mm |
| Package width | 290 mm |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| On/off switch | |
| Fan diameter | 12 cm |
| Performance | |
| Certification | CE/TUV/TUV-SUDNRTL/FCC/GOST/CCC/BSMI/C-tick/KCC |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| ATX version | 2.31 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| EAN | 4719512048252 |
| Warranty | 1 year |

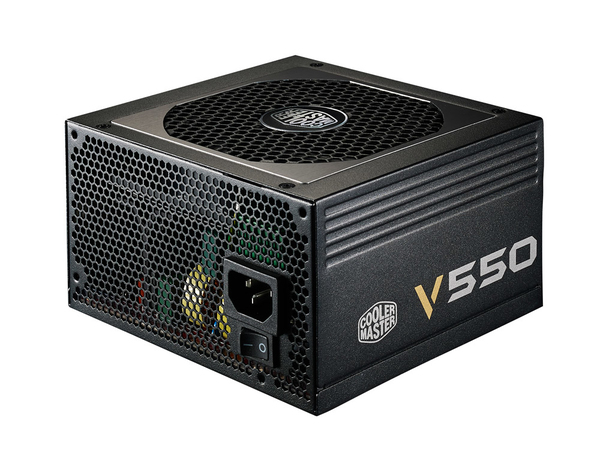

COMPACT AND QUIET
V Series power supplies are fully modular with compact and quiet engineering. Maintain whisper-quiet operation through the addition of the high performance Silencio FP fan and 100% Japanese capacitors for a power package that lets you build with total confidence.
Powerfully Compact
The V series are powerfully small. Only 5.5 inches / 140mm versus 7 inches / 180mm typical length – 22% smaller in volume!

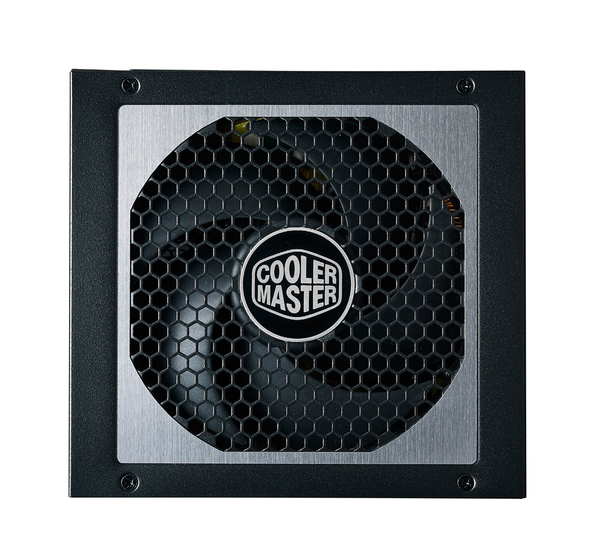

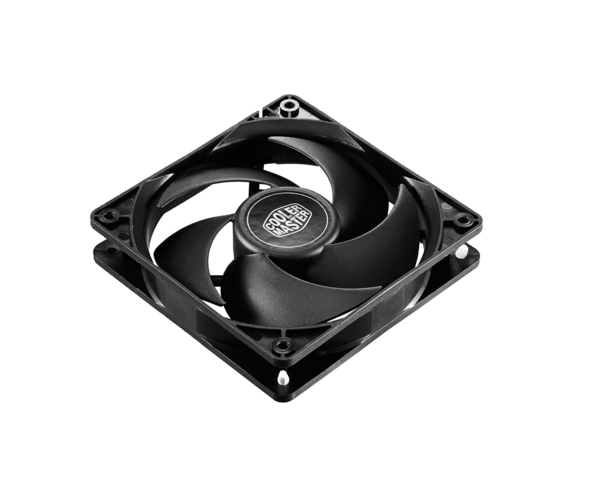

Silencio FP Fan
Silencio FP fan is especially designed to improve thermal dissipation. The sickle blade design can generate 25% higher air pressure to reduce thermal de-rating on power components improving efficiency.

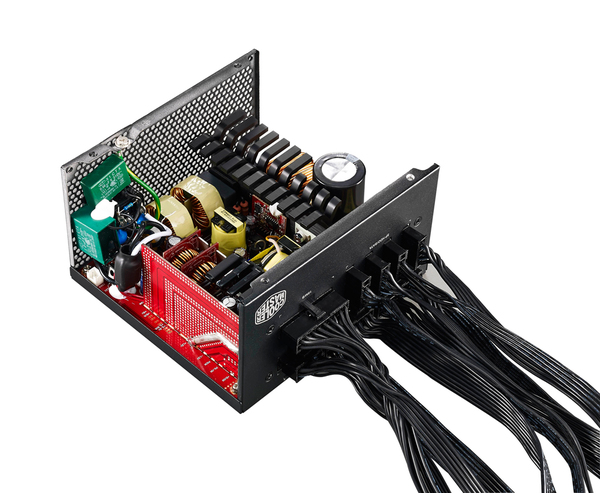

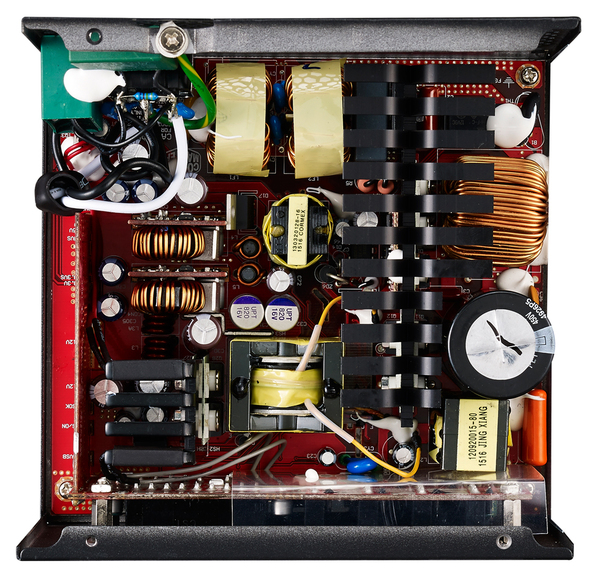

Unique 3D Circuit Design
A Cooler Master exclusive 3D circuit design delivers more power in a smaller package. Clean stable voltages contribute to less stress on valuable components extending system life and reducing system instability.

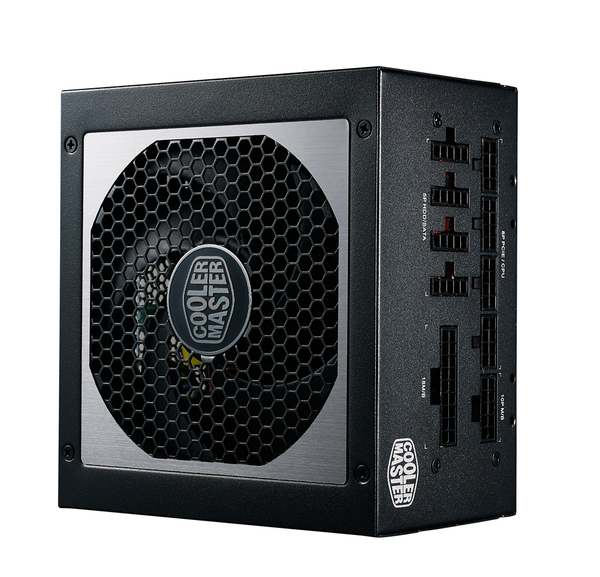

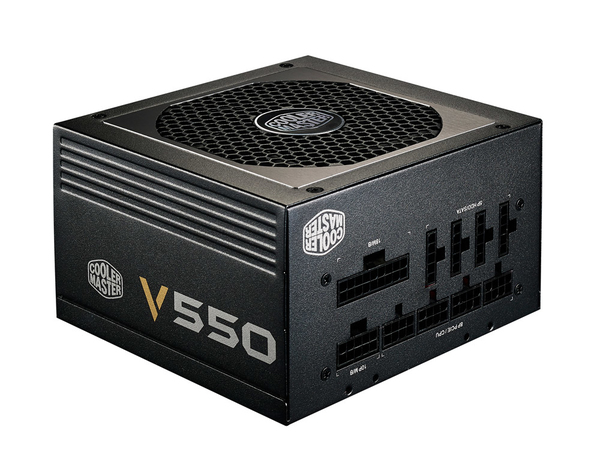

Fully Modular Design
Our design is modular from the inside to the outside. On the inside revolutionary design combines with fully modular, flat ribbon cables.
POWER CHART
Powerful single +12V rail provides superior load balancing and graphics card compatibility.
COVERAGE
Enjoy worry-free product confidence with 5-year parts and replacement warranty along with full support and replacement costs covered by Cooler Master.
V Series power supplies are fully modular with compact and quiet engineering. Maintain whisper-quiet operation through the addition of the high performance Silencio FP fan and 100% Japanese capacitors for a power package that lets you build with total confidence.
Powerfully Compact
The V series are powerfully small. Only 5.5 inches / 140mm versus 7 inches / 180mm typical length – 22% smaller in volume!
Silencio FP Fan
Silencio FP fan is especially designed to improve thermal dissipation. The sickle blade design can generate 25% higher air pressure to reduce thermal de-rating on power components improving efficiency.
Unique 3D Circuit Design
A Cooler Master exclusive 3D circuit design delivers more power in a smaller package. Clean stable voltages contribute to less stress on valuable components extending system life and reducing system instability.
Fully Modular Design
Our design is modular from the inside to the outside. On the inside revolutionary design combines with fully modular, flat ribbon cables.
POWER CHART
Powerful single +12V rail provides superior load balancing and graphics card compatibility.
COVERAGE
Enjoy worry-free product confidence with 5-year parts and replacement warranty along with full support and replacement costs covered by Cooler Master.
