No price development information for this product.
This product is end of life or currently not available.
Audio | |
Noise reduction | |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | |
HDMI ports quantity | 1 |
Power over Ethernet (PoE) ports quantity | 1 |
Weight & dimensions | |
Weight | 2.2 kg |
Height | 176 mm |
Width | 179 mm |
Depth | 172 mm |
Energy management | |
Input current | 3 |
DC input voltage | 12 |
Operational conditions | |
Operating relative humidity (H-H) | 20 - 80% |
Operating temperature (T-T) | 0 - 40 °C |
Video | |
Supported video modes | 1080p |
Camera | |
Megapixel (approx.) | 2.38 MP |
Optical zoom | 30x |
Aperture range (F-F) | 1.6 - 4.7 |
White balance | ATW, Auto, Indoor, Manual, One push, Outdoor |
Signal-to-Noise Ratio (SNR) | 50 dB |
Sensor type | CMOS |
Focus adjustment | Auto/Manual |
Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Auto focusing (AF) modes | Infinity, Near Limit, One Push Trigger |
PTZ control | |
Back Light Compensation (BLC) | |
Effective sensor resolution | 2.14 MP |
Horizontal field of view (wide) | 65° |
Horizontal field of view (tele) | 2.3° |
Minimum working distance (wide) | 1 cm |
Maximum working distance (tele) | 120 cm |
Sync system | Internal |
Gain control type | Auto/Manual |
Aperture number of steps | 16 |
Gain number of steps | 28 |
Design | |
Product colour | Black |
Tilt angle range | -30 - 90° |
Pan range | -160 - 160° |
Web-based management | |
Tilt speed (max) | 120 °/sec |
Pan speed (max) | 120 °/sec |
EAN | |
Source: Icecat.biz |
- Designed for use with the Vaddio OneLINK receivers or third-party HDBT Switches – extend power, video and control with one Cat-5e/6 cable
- High-definition 1080p/60 Exmor (RoboSHOT 12) and Exmor R (RoboSHOT 30) sensors
- RoboSHOT 12 HDBT: 12x optical zoom, 73° horizontal field of view; RoboSHOT 30 HDBT: 30x optical zoom, 65° horizontal field of view
- Smooth, silent direct-drive motors provide ultra-accurate positioning

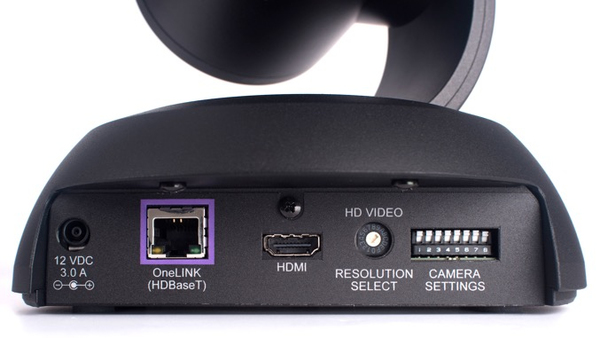

- Simultaneous HDBT, HDMI and IP H.264 streaming – view real-time video from the camera using any standards-based media viewer
- Web interface for remote administration and operation, integration-ready Telnet or RS-232 control and IR remote control
RoboSHOT 12 HDBT Camera 999-9960-000 (North America), 999-9960-001 (International), RoboSHOT 30 HDBT Camera (Black), 999-9963-000 (North America), 999-9963-001 (International), RoboSHOT 30 HDBT Camera (White), 999-9963-000W (North America), 999-9963-001W (International)

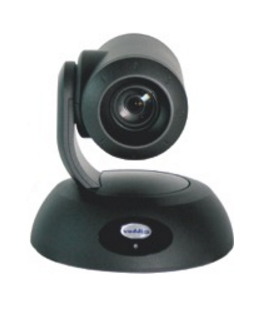

Vaddio RoboSHOT HDBT PTZ cameras make High-definition video integration even easier - extending power, video and control over a single Cat-5e/6 cable.
Integrating HDBaseT technology directly into the camera, Vaddio RoboSHOT 12 and RoboSHOT 30 HDBT cameras can be paired with Vaddio’s OneLINK™ HDMI Receiver extending full I/O functionality up to 328 ft (100m) to the rack. RoboSHOT HDBT cameras can also be directly connected to HDBaseT-compliant AV Switchers, including Crestron, AMX and Kramer systems.
Choose the Best RoboSHOT HDBT Camera for Your Environment
The Vaddio RoboSHOT 12 HDBT PTZ Camera features a 12x optical zoom with a 73-degree wide horizontal field of view and uses the Exmor® low-noise image sensor, making it ideal for small and medium rooms.
The Vaddio RoboSHOT 30 HDBT PTZ Camera features a 30x optical zoom with 2.3-degree (tele) and 65-degree (wide) horizontal field of view, and utilizes the new Exmor R image sensor for significantly enhanced light-gathering capabilities, ideal for large rooms even with dim lighting.
Both RoboSHOT HDBT cameras deliver High-definition 1080p/60 video with razor sharp images, support wide dynamic range (WDR) for ultra-clear detail in high-contrast, bright lighting conditions, and provide improved color mapping settings for the most true, precise color representation.
As with all Vaddio RoboSHOT cameras, RoboSHOT HDBT cameras feature Vaddio’s Tri-Synchronous Motion technology, which allows all three axes of the camera (pan, tilt and zoom) to move simultaneously for ultra-smooth, natural camera motion. And the built-in web interface enables cameras to be accessed and managed remotely from any web browser over the IP network.
