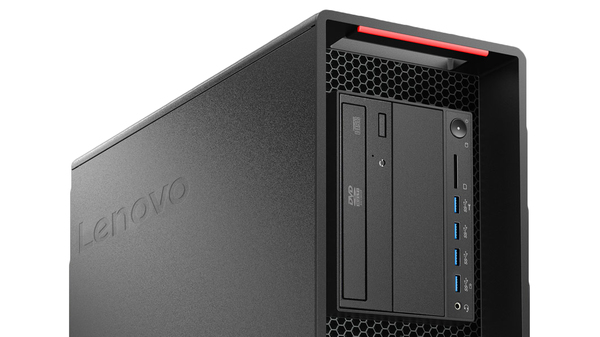

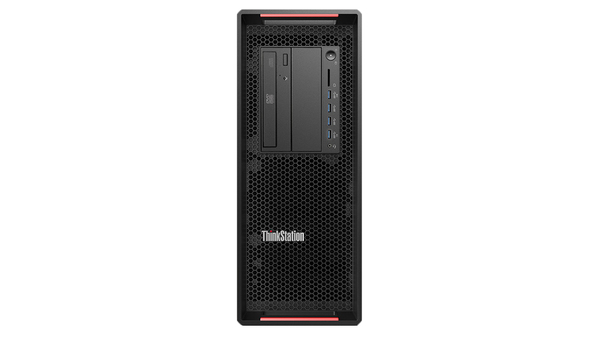

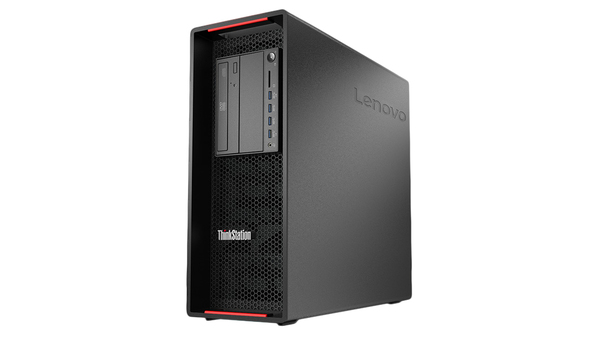

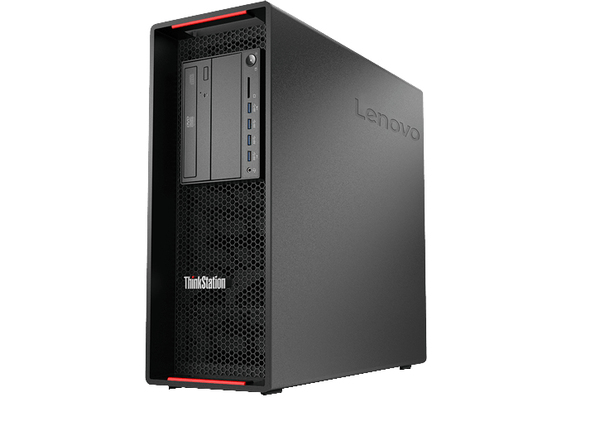

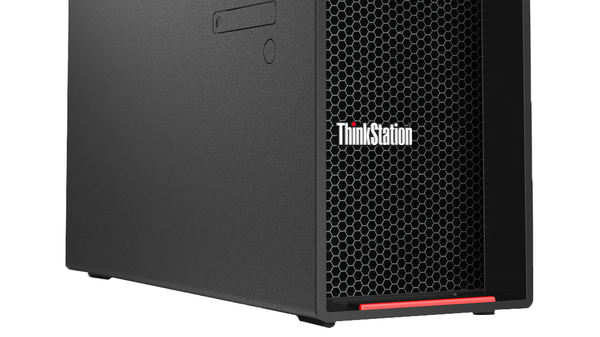

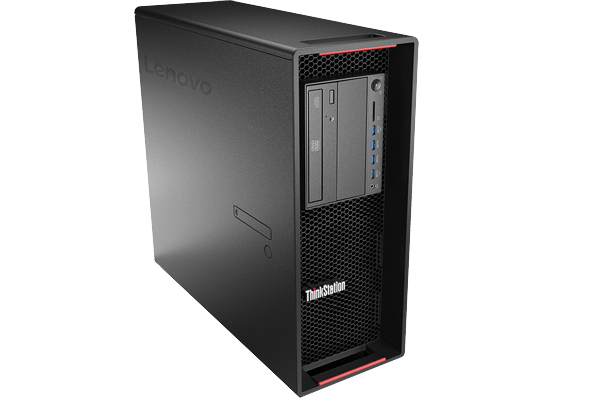

LENOVO ThinkStation P510 TWR E5-1620v4 8GB ECC 2400MHZ RDIMM M.2 256GB PCIE OPAL SSD 16xDVD RW W10P Topseller
Manufacturer: LENOVO
ID: 30B5006QMT
Product unavailable
This product is end of life or currently not available.
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Device type | SSD |
| Processor | |
| Processor model | E5-1620V4 |
| Number of processors installed | 1 |
| Processor lithography | 14 nm |
| Processor family | Intel Xeon |
| Processor socket | LGA 2011 |
| Stepping | R0 |
| Processor cores | 4 |
| Processor threads | 8 |
| PCI Express slots version | 3.0 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.8 GHz |
| Processor cache | 10 MB |
| Tcase | 69 °C |
| Bus type | QPI |
| Processor frequency | 3.5 GHz |
| Thermal Design Power (TDP) | 140 W |
| Processor codename | Broadwell |
| Maximum number of PCI Express lanes | 40 |
| Processor cache type | Smart Cache |
| Processor series | Intel Xeon E5-1600 v4 |
| Maximum internal memory supported by processor | 1536 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
| Memory bandwidth supported by processor (max) | 76.8 GB/s |
| Memory channels supported by processor | Quad |
| ECC supported by processor |  |
| Hard drive | |
| Total storage capacity | 256 GB |
| Memory | |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 8x DIMM |
| Maximum internal memory | 256 GB |
| ECC | |
| Memory clock speed | 2400 MHz |
| Memory layout (slots x size) | 1 x 8 GB |
| Internal memory | 8 GB |
| Optical drive | |
| Optical drive type | DVD±RW |
| Optical drives quantity | 1 |
| Ports & interfaces | |
| Serial ports quantity | 1 |
| Line-in | |
| Line-out | |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | |
| DVI port |  |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 8 |
| Weight & dimensions | |
| Weight | 22.2 kg |
| Height | 440 mm |
| Width | 175 mm |
| Depth | 470 mm |
| Energy management | |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50 - 60 Hz |
| Networking | |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN | |
| Wi-Fi | |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Storage | |
| Drive capacity | 256 GB |
| Total storage capacity | 256 GB |
| Number of SSDs installed | 1 |
| Storage media | SSD |
| Certificates | |
| Certification | GREENGUARD |
| Energy Star certified | |
| RoHS compliance | |
| EPEAT compliance | Gold |
| Operating system/software | |
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
| Packaging content | |
| Cables included | AC |
| Display included | |
| Mouse included | |
| Keyboard included | |
| Expansion slots | |
| PCI Express x4 (Gen 2.x) slots | 1 |
| PCI Express x4 (Gen 3.x) slots | 1 |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Design | |
| Chassis type | Tower |
| Product colour | Black |
| Number of 5.25" bays | 2 |
| Number of 3.5" bays | 4 |
| Graphics | |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
| On-board graphics card | |
| Discrete graphics card | |
| Processor special features | |
| Supported instruction sets | AVX 2.0 |
| Processor code | SR2P7 |
| Intel® Identity Protection Technology (Intel® IPT) | |
| Intel® vPro™ Technology | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | |
| Intel® Turbo Boost Technology | 2.0 |
| Intel Flex Memory Access | |
| Intel® AES New Instructions (Intel® AES-NI) | |
| Enhanced Intel SpeedStep Technology | |
| Execute Disable Bit | |
| Idle States | |
| Thermal Monitoring Technologies | |
| Intel Trusted Execution Technology | |
| Scalability | 1S |
| Physical Address Extension (PAE) | 46 bit |
| CPU configuration (max) | 1 |
| Intel Enhanced Halt State | |
| Intel VT-x with Extended Page Tables (EPT) | |
| Embedded options available | |
| Intel Demand Based Switching | |
| Intel TSX-NI | |
| Intel 64 | |
| Intel Virtualization Technology for Directed I/O (VT-d) | |
| Intel Virtualization Technology (VT-x) | |
| Processor package size | 45 x 52.5 mm |
| Conflict-Free processor | |
| Processor ARK ID | 92991 |
| Performance | |
| Motherboard chipset | Intel C612 |
| Product type | Workstation |
| Audio chip | Realtek ALC662 |
| EAN | 0192076730742 |
| Warranty | 1 year |
Features
Usability. Reliability. Performance.
Intel® Xeon® processors with Turbo Max 3.0 and NVIDIA® Quadro® graphics deliver powerful performance with ISV certifications, fully customizable storage, memory, power and I/O configurations.
Unmatched Reliability
ThinkStation P Series workstations run cooler than ever thanks to our advanced Tri-Channel cooling and innovative air baffle design. Priority Technical Support 24x7 make the P510 perfect for mission-critical tasks.
Innovative Features
Modular design makes tool-less upgrades a snap for fully configurable storage, multiple graphics cards and swappable power supplies.
No-hassle Deployment
Advanced Deployment Services include custom image load and creation, and asset tagging to protect your investment. Includes Lenovo Services for Enterprise Business Class Support.
Suitable for Tech-hungry Industries
Perfectly suited for any industry that requires reliability and performance. From manufacturing to media, design to database management, the ThinkStation P510 boasts Lenovo know-how and cutting edge technology inside at a winning price.
Usability. Reliability. Performance.
Intel® Xeon® processors with Turbo Max 3.0 and NVIDIA® Quadro® graphics deliver powerful performance with ISV certifications, fully customizable storage, memory, power and I/O configurations.
Unmatched Reliability
ThinkStation P Series workstations run cooler than ever thanks to our advanced Tri-Channel cooling and innovative air baffle design. Priority Technical Support 24x7 make the P510 perfect for mission-critical tasks.
Innovative Features
Modular design makes tool-less upgrades a snap for fully configurable storage, multiple graphics cards and swappable power supplies.
No-hassle Deployment
Advanced Deployment Services include custom image load and creation, and asset tagging to protect your investment. Includes Lenovo Services for Enterprise Business Class Support.
Suitable for Tech-hungry Industries
Perfectly suited for any industry that requires reliability and performance. From manufacturing to media, design to database management, the ThinkStation P510 boasts Lenovo know-how and cutting edge technology inside at a winning price.
