Display | |
Pixel pitch | 0.105 x 0.315 mm |
Horizontal scan range | 30 - 81 kHz |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Vertical scan range | 48 - 75 Hz |
Display diagonal | 165.1 cm (65") |
Display brightness | 250 cd/m² |
Response time | 8 ms |
Display resolution | 4K 3840 x 2160 pixels |
Display diagonal (metric) | 163 cm |
Touchscreen | |
LED backlighting type | Edge-LED |
Display type | LED |
HD type | 4K Ultra HD |
Colour gamut | 72% |
Dynamic contrast ratio marketing name | Mega Contrast |
Audio | |
Number of built-in speakers | 2 |
RMS rated power | 20 W |
Built-in speaker(s) | |
Ports & interfaces | |
Ethernet LAN | |
Ethernet LAN (RJ-45) ports | 1 |
DVI port | |
DVI-D ports quantity | 1 |
HDMI ports quantity | 3 |
RS-232 interface | |
HDMI version | 1.4/2.0 |
DisplayPorts quantity | 1 |
USB version | 2.0 |
USB ports quantity | 3 |
RS-232C | |
USB port | |
Weight & dimensions | |
Weight | 39.2 kg |
Height | 882.4 mm |
Width | 1514.7 mm |
Depth | 58.2 mm |
Energy management | |
Power consumption (typical) | 165 W |
Power consumption (standby) | 0.5 W |
Energy efficiency class | A+ |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 80% |
Operating temperature (T-T) | 0 - 40 °C |
Packaging data | |
Package weight | 48 kg |
Cables included | AC |
Package depth | 231 mm |
Package height | 1001 mm |
Package width | 1619 mm |
Other features | |
Safety | CB (Europe): IEC60950-1 / EN60950-1 CCC (China): GB4943.1-2011 PSB (Singapore): PSB + IEC60950-1 NOM (Mexico): NAM-001- + IEC60950-1 SASO (Saudi Arabia): SASO + IEC60950-1 BIS (India): IEC60950-1 / IS13252 NOM (Mexico): Tuner: NOM-001-SCFI-1993 Tunerless: NOM-019-SCFI- Korea: K 60950-1 EAC (Russia): EAC + IEC60950-1 INMETRO (Brazil): INMETRO + IEC60950-1 BSMI (Taiwan): BSMI + IEC60950-1 RCM (Australia): IEC60950-1 / AS / NZS 60950 -1 UL (USA): cUL60950-1 CSA (Canada): cUL TUV (Germany): CE NEMKO (Norway): CE |
Cable length | 1.8 m |
Video compression formats | AVC,AVS,H.263,H.264,HEVC,MPEG,MPEG1,MPEG2,MPEG4,VC-1,VP8,VP9 |
Glass protection | |
Design | |
Certification | FCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 VCCI (Japan) : VCCI V-3 /2010.04 Class A KCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24 BSMI (Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital) C-Tick (Australia) : AS/NZS CISPR22:2009 CCC(China) :GB9254-2008 GB17625.1-2012 GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003 |
Product colour | Black |
Placement supported | Indoor |
Panel mounting interface | 400 x 400 mm |
Product design | Digital signage flat panel |
VESA mounting | |
Performance | |
TV tuner integrated | |
Purpose | Universal |
Wi-Fi | |
Operating hours (hours/days) | 16/7 |
Computer system | |
Processor model | A72 |
Processor family | ARM Cortex |
Audio formats supported | AC3,MP3 |
Memory clock speed | 1600 MHz |
Operating system installed | Tizen 3.0 |
L2 cache | 2048 KB |
Processor cores | 4 |
Video formats supported | AVC,AVS,H.263,H.264,MPEG,MPEG1,MPEG2,MPEG4,MVC,VC-1,VP8,VP9 |
Internal storage capacity | 8 GB |
Processor frequency | 1.7 GHz |
Internal memory | 3.88 GB |
User memory | 4.12 GB |
Computer system | |
Computer system type | System on Chip (SoC) |
EAN | 8801643034962 |
Warranty | 1 year |
Source: Icecat.biz |

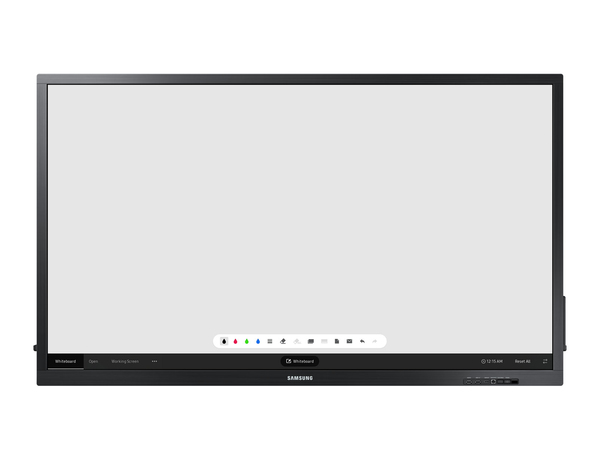

Revitalize Productive Collaboration
QBH-TR e-boards offer a versatile, all-in-one arena for improved collaboration. Enhanced touch technology, the intuitive MagicIWB S5 solution and UHD picture quality come together to boost productivity and collaboration by facilitating engaging, efficient interaction.
Enhance Touch, Enhance Capacity
Leverage heightened touch functionality for a smooth and versatile digital writing experience. Up to four users can write simultaneously using the provided pen or virtually any other tool.
Elevate Collaboration Quality
The embedded MagicIWB S5 solution facilitates discussion management and organization with an intuitive interface for quick access to vital collaborative functionalities such as screen mirroring and real-time notation saving.
Switch Sources Seamlessly
Through the Working Screen function, users can quickly switch between multiple screens, such as the whiteboard, internet browser and connected input sources, with just a few touches.
Retrieve and Control Content Remotely
Pull and edit content on remote laptops directly through the central screen utilizing touch functionality. The powerful Knox system secures the Remote Workspace connection to protect against information leakage and meddling.
Connect with Convenience
Bring collaborative ideas to life through advanced UHD picture quality. Through ultra-high resolution, ensure all notations and introduced content are clear and legible for every participant.
Amplify Visual Presentation
Bring collaborative ideas to life through advanced UHD picture quality. Through ultra-high resolution, ensure all notations and introduced content are clear and legible for every participant.
Maintain Organization with Style
Drive more organized collaboration with a sleek, sophisticated design. The magnetic side pen holder and frontal connection ports keep needed functions within reach, without the mess.
- Heightened touch functionality for a smooth and versatile digital writing experience
- Intuitive interface for quick access to screen mirroring and real-time notation saving
- Working Screen function that enables users to toggle between multiple screens
- Distinct content clarity through advanced UHD picture quality
