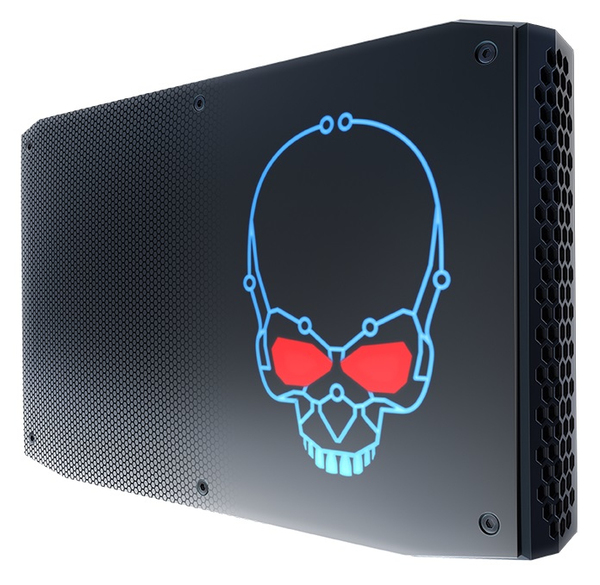

INTEL NUC BOXNUC8I7HVK2 | Intel Core i7-8809G Radeon | RX Vega M GH Graphics
This product is end of life or currently not available.
Technical details | |
USB ports quantity | 0 13 |
Product type | 11 |
Status | Launched |
Processor | |
Processor model | i7-8809G |
Processor manufacturer | Intel |
Processor lithography | 14 nm |
Processor family | Intel Core i7 |
Processor cores | 4 |
Processor threads | 8 |
Built-in processor | |
Processor boost frequency | 4.2 GHz |
Processor cache | 8 MB |
CPU configuration (max) | 1 |
Processor frequency | 3.1 GHz |
Thermal Design Power (TDP) | 100 W |
Processor codename | Kaby Lake G |
Maximum internal memory supported by processor | 32 GB |
Memory bandwidth supported by processor (max) | 38.4 GB/s |
ECC supported by processor | |
Product family | Intel® NUC Kits |
Product series | Intel® NUC Kit with 8th Generation Intel® Core™ Processors |
Product codename | HADES CANYON |
Memory | |
Maximum internal memory | 32 GB |
ECC | |
Number of DIMM slots | 2 |
Memory bandwidth (max) | 38.4 GB/s |
Memory voltage | 1.2 V |
Supported memory clock speeds | 2400 MHz |
Supported memory types | DDR4 |
Memory channels | Dual-channel |
Memory slots type | SO-DIMM |
Internal memory | 0GB |
Number of memory slots | 2 |
Removable memory card slot | SDXC with UHS-I support |

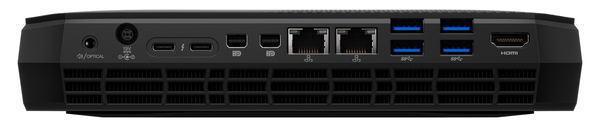

Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 2 |
S/PDIF out port | |
DC-in jack | |
HDMI ports quantity | 2 |
HDMI version | 2.0a |
Mini DisplayPorts quantity | 2 |
Thunderbolt ports quantity | 2 |
Number of SATA III connectors | 2 |
Internal USB 2.0 ports quantity | 2 |
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 2 |
Combo headphone/mic port | |
Consumer infrared headers | |
DisplayPort version | 1.3 |
USB ports quantity | 13 |
Graphics output | 2x Mini-DP 1.2, 2x Thunderbolt 3, F+R HDMI 2.0a |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Thunderbolt 3 ports quantity | 2 |
M.2 card slot (storage) | 2242/2280 |
M.2 card slot (wireless) | 2230 |
Weight & dimensions | |
Height | 39 mm |
Width | 221 mm |
Depth | 142 mm |
Energy management | |
Power supply type | External AC adapter |
Number of power supply units | 1 |
Power supply | 230 W |
Networking | |
Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
Bluetooth version | 4.2 |
Ethernet LAN | |
Bluetooth | |
LAN controller | Intel® I210-AT, Intel I219LM |
Wi-Fi | |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
WLAN controller model | Intel Dual Band Wireless-AC 8265 |
Storage | |
Compatible memory cards | SDXC |
RAID levels | 0,1 |
Total storage capacity | 0GB |
Card reader integrated | |
Storage drive interface | M.2 |
Number of storage drives supported | 2 |
Storage media | |
Supported storage drive types | SSD |
SSD form factor | M.2 |
Internal I/O | |
Number of SATA III connectors | 2 |
Total number of SATA connectors | 2 |
Operating system/software | |
Operating system installed | |
Expansion slots | |
PCI Express slots version | 3.0 |
PCI Express configurations | 1x8,2x4 |
Other features | |
Maximum internal memory | 32768 MB |
Number of SATA connectors | 2 |
DC input voltage | 19 V |
Embedded options available | |
Consumer infrared headers | |
Thermal Design Power (TDP) | 100 W |
Launch date | Q1'18 |
Additional headers | CEC, 2x USB2.0, 2x USB 3.0, FRONT_PANEL |
Processor ARK ID | 130409 |
Design | |
Chassis type | 1.2L sized PC |
Product colour | Black |
Housing material | Metal, Plastic |
Market positioning | Gaming |
Product type | Mini PC barebone |
VESA mounting | |
Status | Launched |
Product family | Intel® NUC Kits |
Product series | Intel® NUC Kit with 8th Generation Intel® Core™ Processors |
Product codename | HADES CANYON |
ARK ID | 126143 |
Graphics | |
Graphics card family | AMD |
On-board graphics card model | Intel® HD Graphics 630 |
On-board graphics card | |
Number of displays supported | 6 |
Processor special features | |
Trusted Platform Module (TPM) | |
Intel® My WiFi Technology (Intel® MWT) | |
Intel® Identity Protection Technology (Intel® IPT) | |
Intel® Smart Response Technology | |
Intel® Hyper Threading Technology (Intel® HT Technology) | |
Intel® Turbo Boost Technology | 2.0 |
Intel® Quick Sync Video Technology | |
Intel® InTru™ 3D Technology | |
Intel® Clear Video HD Technology (Intel® CVT HD) | |
Intel Flex Memory Access | |
Intel® AES New Instructions (Intel® AES-NI) | |
Enhanced Intel SpeedStep Technology | |
Execute Disable Bit | |
Idle States | |
Thermal Monitoring Technologies | |
Intel Trusted Execution Technology | |
Intel VT-x with Extended Page Tables (EPT) | |
Embedded options available | |
Intel Rapid Storage Technology | |
Intel® High Definition Audio (Intel® HD Audio) | |
Intel TSX-NI | |
Intel® Secure Key | |
Intel 64 | |
Intel Stable Image Platform Program (SIPP) | |
Intel® OS Guard | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel Clear Video Technology | |
Intel Virtualization Technology (VT-x) | |
Performance | |
Motherboard form factor | UCFF |
Compatible processor series | Intel Core i7 |
Audio output channels | 7.1 channels |
Processor socket | BGA 2270 |
Compatible operating systems | Windows 10, 64-bit*, Windows Server 2016* |
Trusted Platform Module (TPM) | |
Number of processors supported | 1 |
Supported RAID configuration | 2x M.2 SATA/PCIe SSD (RAID-0 RAID-1) |
Consumer infrared Rx sensor | |
EAN | 5032037109710 |
Warranty | 3 years |
Introducing the Intel VR Machine
Now you can get into totally-immersive VR and seamless gaming with the performance-optimized Intel® NUC 8 VR machine. It’s powerful. It’s fast. And it’s tiny. Just see where it can take you — and where you can take it.
Coming To This World In Spring
The Intel® NUC 8 VR machine will be released in Spring 2018. Where you go from there is up to you.
Game-Changing Technology
Intel® True View Technology
Get thrilling replays and highlight reels from every conceivable angle. The most exciting moments are captured and replayed with a 360 degree or player point of view.
Intel® True VR
Feel like you're there: select your own vantage point and enjoy a remarkable in-app experience, including real-time stats and dynamic audio.
